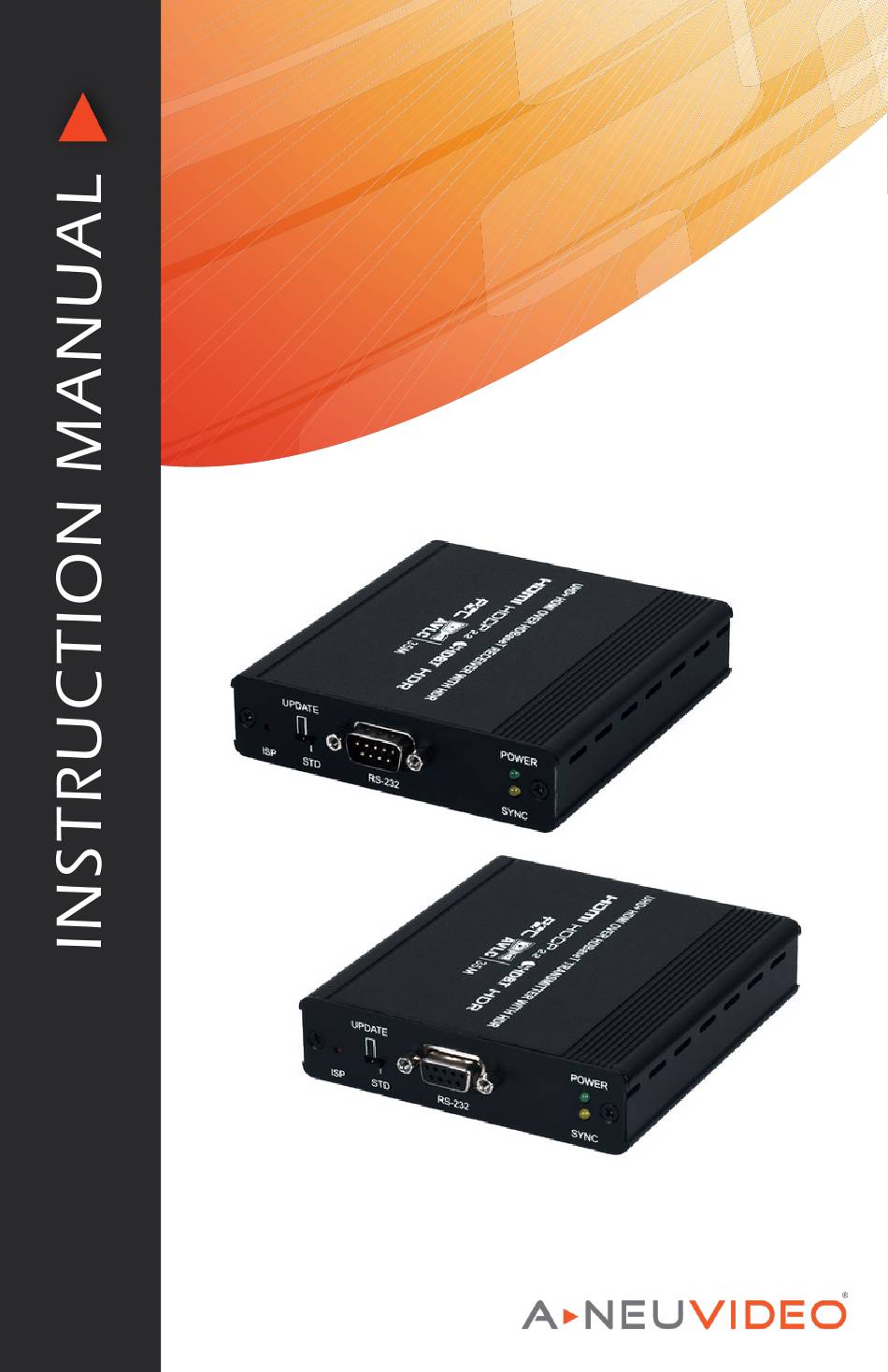

- Page 1 ANI-527TX / RX 4K60Hz UHD+ HDR HDMI HDBaseT Transmitter/Receiver w/ Bi-directional 24V PoC Receiver Transmitter AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
• ANI-527RX HDMI to HDBaseT™ Receiver w/ Bi-directional 24V PoC • 3.5mm to IR Extender Cable • Users Guide & • ANI-527TX HDMI to HDBaseT™ Transmitter w/ Bi-directional 24V PoC • 24V/1.25A DC Power Adapter • 2-pin Terminal Block • 3.5mm to IR Blaster Cable... -
Page 5: Features
FEATURES • HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible • HDCP 1.x and HDCP 2.2 compliant • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output • Supports Deep Color input and output up to 12-bit •... -
Page 6: Specifications
SPECIFICATIONS SPECIFICATIONS • HDMI Bandwidth: 600MHz/18Gbps • HDBaseT™ Bandwidth: 340MHz/10.2Gbps • RX Input Port: HDBaseT™ (RJ-45) • RX Output Port: HDMI • RX Pass-through Ports: • IR Extender (3.5mm) • IR Blaster (3.5mm) • RS-232 (DE-9) • TX Input Port: HDMI •... -
Page 7: System Requirements / Applications
SYSTEM REQUIREMENTS / APPLICATIONS SYSTEM REQUIREMENTS • HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • An HDBaseT™ Transmitter equipped with AVLC and 24V PoC support is strongly recommended. • An HDBaseT™ Receiver equipped with AVLC and 24V PoC support is strongly recommended. •... -
Page 8: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Front Panel - RECEIVER q ISP PINHOLE: This button is reserved for factory use only. w STD/UPDATE SWITCH: This switch is reserved for factory use only. Note: This should be left on the default setting of “STD” for normal operation. e RS-232 PORT: Connect to a PC, laptop, or serial controllable device for the extension of RS-232 signals between both ends of the HDBaseT™... - Page 9 OPERATION CONTROLS & FUNCTIONS back Panel - RECEIVER q DC 24V TERMINAL BLOCK: Plug the 24V DC power adapter into this terminal block and connect it to an AC wall outlet for power. (Optional) Note: This connection is not required if the unit is receiving power via 24V PoC from the Transmitter.
- Page 10 OPERATION CONTROLS & FUNCTIONS Front Panel - TRANSMITTER q ISP PINHOLE: This button is reserved for factory use only. w STD/UPDATE SWITCH: This switch is reserved for factory use only. Note: This should be left on the default setting of “STD” for normal operation. e RS-232 PORT: Connect to a PC, laptop, or serial controllable device for the extension of RS-232 signals between both ends of the HDBaseT™...
- Page 11 OPERATION CONTROLS & FUNCTIONS back Panel - TRANSMITTER q DC 24V TERMINAL BLOCK: Plug the 24V DC power adapter into this terminal block and connect it to an AC wall outlet for power. (Optional) Note: This connection is not required if the unit is receiving power via 24V PoC from the Receiver. w IR BLASTER PORT: Connect to an IR Blaster to transmit IR signals from the other end of the HDBaseT™...
-
Page 12: Cable Pinouts / Rs-232 Bypass Pinout / Hdbaset™ Features
Cable Pinouts / RS-232 Bypass Pinout / HDBaseT™ Features Cable Pinouts RS-232 Bypass Pinout RECEIVER TRANSMITTER HDBaseT™ Features HDBaseT Feature Set ™ Video & Audio Supported IR Pass-through Supported RS-232 Pass-through Supported Accept power from Transmitter Supported Send power to Transmitter Supported LAN Pass-through Unsupported... -
Page 13: Connection Diagram
CONNECTION DIAGRAM... -
Page 14: Video Specifications
Video Specifications Receiver Supported Resolutions (Hz) Input Output HDBT HDMI 720x400p@70/85 ü ü 640x480p@60/72/75/85 ü ü 720x480i@60 ü ü 720x480p@60 ü ü 720x576i@50 ü ü 720x576p@50 ü ü 800x600p@56/60/72/75/85 ü ü 848x480p@60 ü ü 1024x768p@60/70/75/85 ü ü 1152x864p@75 ü ü 1280x720p@50/60 ü... - Page 15 Video Specifications Receiver Supported Resolutions (Hz) Input Output HDBT HDMI AVLC 3840x2160p@24/25/30, HDR10 AVLC ü 3840x2160p@50/60 (4:2:0), HDR10 AVLC AVLC ü AVLC 3840x2160p@50/60 AVLC ü 4096x2160p@24/25/30 ü ü 4096x2160p@50/60 (4:2:0) ü ü 4096x2160p@24/25/30, HDR10 û û 4096x2160p@50/60 (4:2:0), HDR10 û û...
- Page 16 Video Specifications Transmitter Supported Resolutions (Hz) Input Output HDMI HDBT 1600x1200p@60 ü ü 1680x1050p@60RB/60 ü ü 1920x1080i@50/60 ü ü 1920x1080p@24/25/30 ü ü 1920x1200p@60RB ü ü 2560x1440p@60RB û û 2560x1600p@60RB û û 2048x1080p@24/25/30 ü ü 2048x1080p@50/60 ü ü 3840x2160p@24/25/30 ü ü 3840x2160p@50/60 (4:2:0) ü...
-
Page 17: Audio / Cable Specifications
Audio / Cable Specifications Audio Specifications Digital Audio HDMI INPUT/OUTPUT LPCM Maximum Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 BITSTREAM Supported Formats Standard & High-Definition Cable Specifications 1080p 4K30 4K60 CABLE LENGTH 8-bit 12-bit (4:4:4) 8-bit (4:4:4) 8-bit High Speed HDMI Cable... - Page 18 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 20 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
