- Page 1 ANI-304TX/RX Optical & RS-232 Transmitter or Receiver TRANSMITTER RECEIVER AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
CONNECTION DIAGRAM ......................7 INTRODUCTION The ANI-304TX/RX Optical (S/PDIF) IN & OUT with RS-232 Transmitter or Receiver can send and receive S/PDIF audio signal synchronously over a single run of CAT5e/6 cable up to ~985 ft/300M. With RS-232 control and PoE feature added this Transmitter can pair with the Receiver unit together that support device control and one side power supply. -
Page 5: Features / Specifications
SPECIFICATIONS FEATURES / FEATURES • S/PDIF IN/OUT and RS-232 control • Optical S/PDIF audio sampling rates up to 192kHz • S/PDIF with 192kHz sampling rate over a single CAT5e/6/7 cable up to ~328ft/100M, 96kHz sampling rate for cables up to ~492ft /150M and 48kHz sampling rate for cable up to ~ 984ft/300M •... -
Page 6: Operation Controls & Functions

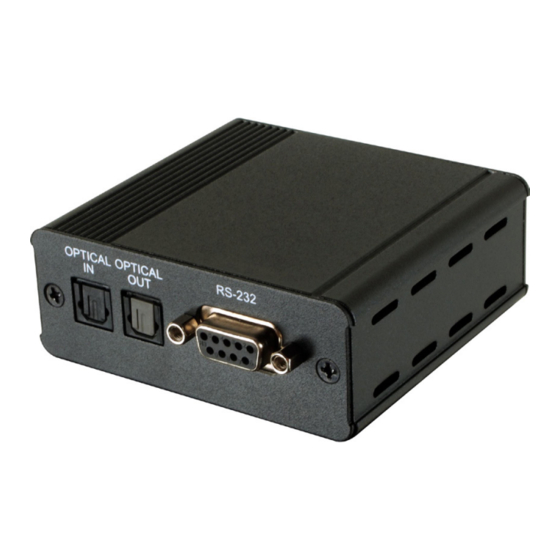

Operation controls & Functions Transmitter FRONT PANEL OPTICAL IN: Connect to source equipment such as DVD/Blu-ray player, Set-Top Box or game console for audio input signal routing. OPTICAL OUT: Connect to active speakers and or AV amplifiers with optical cable for audio output. - Page 7 Operation controls & Functions RECEIVER FRONT PANEL OPTICAL IN: Connect to source equipment such as DVD/Blu-ray player, Set-Top Box or game console for audio input signal routing. OPTICAL OUT: Connect to active speakers and or AV amplifiers with optical cable for audio output.
-
Page 8: Rs-232 Pin Definition
RS-232 Pin Definition DEFINE TX/RX TxD / RxD RxD / TxD... -
Page 9: Connection Diagram
CONNECTION DIAGRAM Transmitter... - Page 10 CONNECTION DIAGRAM RECEIVER...
- Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
