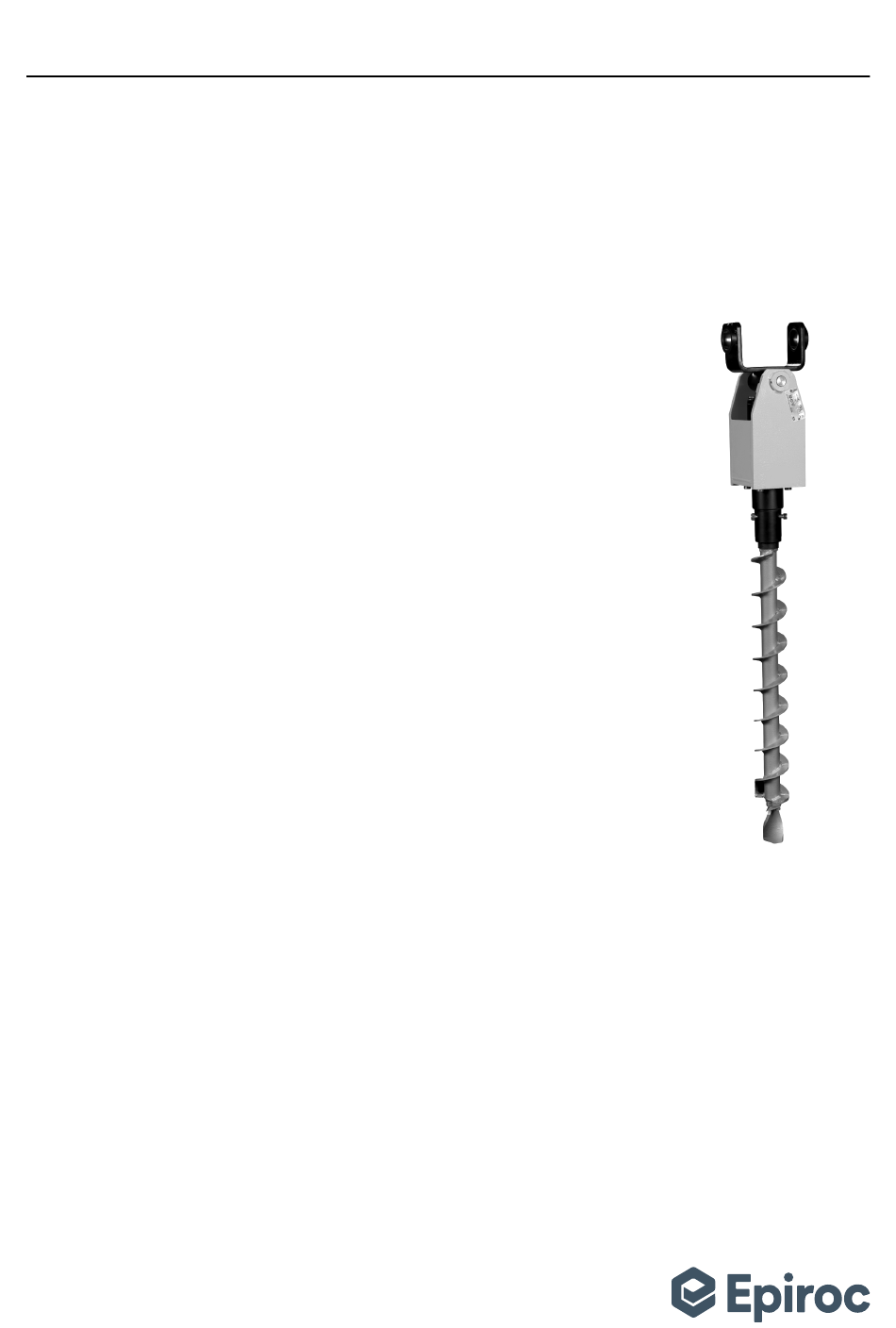

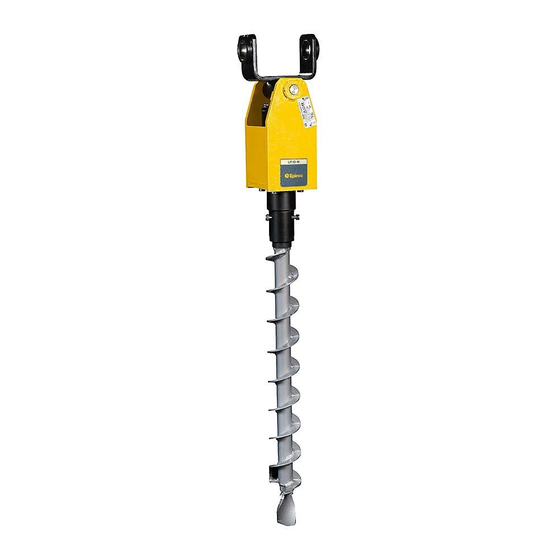

- Page 1 LPHB-M Safety and operating instructions Posthole borer © Construction Tools PC AB | 9864 0046 01 | 2020-11-13 Original Instructions...
-
Page 3: Table Of Contents
Contents Table of Contents 1 Introduction .......................... 5 About the Safety and operating instructions .................... 5 2 Safety instructions........................ 5 Safety signal words ............................ 5 Personal precautions and qualifications ...................... 5 2.2.1 Transport ................................ 5 2.2.2 Installation, storage, maintenance and disposal.................... 5 2.2.3 Operation................................ 5 2.2.4 Testing................................ 6 2.2.5 Personal protective equipment .......................... - Page 4 Contents 8 Storage............................ 15 9 Disposal ............................ 15 10 Technical data .......................... 16 10.1 Machine data .............................. 16 10.2 Noise declaration statement .......................... 16 11 EC Declaration of Conformity (EC Directive 2006/42/EC) ............ 17 © Construction Tools PC AB | 9864 0046 01 | 2020-11-13 Original Instructions...
-
Page 5: Introduction
DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Epiroc is a leading productivity partner for the mining, in- frastructure and natural resources industries. With cut- WARNING Indicates a hazardous situation which, if not avoided, could result in ting-edge technology, Epiroc develops and produces in- death or serious injury. -
Page 6: Testing
Safety and operating instructions 2.2.4 Testing 2.4 Installation, precautions Testing of the hydraulic installation must only be carried WARNING Ejected working tool out by professional technicians. The technicians must be If the tool retainer on the machine is not in a locked posi- authorised to approve a hydraulic installation in accor- tion, the working tool can be ejected with force, which dance with national directives. -
Page 7: Operation, Precautions
Safety and operating instructions 2.5 Operation, precautions WARNING Slipping, tripping and falling hazards There is a risk of slipping or tripping or falling, for exam- WARNING Operating pressure ple tripping on the hoses or on other objects. Slipping or If the maximum operating pressure for the hydraulic ma- tripping or falling can cause injury. -
Page 8: Maintenance, Precautions
Safety and operating instructions u Operate and maintain the machine as recommended WARNING Concealed object hazard in the operating and safety instructions During operating, concealed wires and pipes constitute a u Select, maintain and replace consumables/ working danger that can result in serious injury. tools/ other accessories as recommended in the op- u Check the composition of the material before operat- erating and safety instructions. -
Page 9: Storage, Precautions
Safety and operating instructions WARNING Machine modification Any machine modification may result in bodily injuries to yourself or others. u Never modify the machine. Modified machines are not covered by warranty or product liability. u Always use approved original parts, tools, and ac- cessories. -
Page 10: Overview
The labels must be in such condition that they 1.5 m (59 in.) with standard Epiroc insertion tools in are easy to read. New labels can be ordered from the sizes from ø 90 to ø 350 mm (3.54 - 13.78 in.). -
Page 11: Rpm Label
Safety and operating instructions 3.3.3 RPM label 5 Installation WARNING Whipping hydraulic hose Hydraulic hoses under pressure can whip uncontrollably if screws loosen or are loosened. A whipping hydraulic hose can cause severe injuries. u Depressurise the hydraulic system before loosening the connection of a hydraulic hose. -
Page 12: Pressure Adjustment
Safety and operating instructions When the machine is used continuously, the oil tempera- WARNING Ejected insertion tool ture will stabilise at a level which is called the working If the tool retainer on the machine is not tightened, the temperature. This will, depending on the type of work inserted tool can be ejected with force, which can cause and the cooling capacity of the hydraulic system, be be- personal injury. -
Page 13: Assembly
Safety and operating instructions 2. Run the hydraulic oil through the carrier's oil filter for approximately 3 minutes to make sure that the hoses are clean. 5.6.1 Connecting the posthole borer to the carrier 1. Switch off the carrier and depressurise the hydraulic system by releasing the carrier's hydraulic tank pres- sure. -
Page 14: Operating
Safety and operating instructions 4. An assistant must remove the hydraulic attachment. Agree with the assistant on clear hand signals for use during the dismounting procedure. 5. Remove the bolt locks from the stick and linkage bolts. 6. Drive out the linkage bolt with a steel arbour and a hammer. -
Page 15: Periodic Maintenance
Safety and operating instructions 7.2 Periodic maintenance After each operating period of approximately 300 work- ing hours or twice a year the machine must be disman- tled and all parts be cleaned and checked. This work must be performed by authorised staff, trained for this task. -
Page 16: Technical Data
Safety and operating instructions 10 Technical data 10.1 Machine data LPHB-M Weight, kg (lb) 31 (68) Measurement, LxHxW, mm (in.) 555 x 175 x 209 (21.9 x 6.9 x 8.2) Oil flow, l.p.m 20-60 Working pressure, bar 100-140 Maximum pressure, bar... -
Page 17: Ec Declaration Of Conformity (Ec Directive 2006/42/Ec)
We, Anbaufräsen PC GmbH, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and the harmonised standards mentioned below. Hydraulic posthole borer Pmax (bar) LPHB-M Following harmonised standards were applied: EN ISO 11148-3 Technical Documentation authorised representative: Roger Dähne... - Page 20 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. epiroc.com...
