- Page 1 LPHB-M Safety and operating instructions Posthole borer © Anbaufräsen PC GmbH | 9864 0046 01 | 2018-05-15 Original instructions...
-
Page 3: Table Of Contents
LPHB-M Contents Contents Introduction ..............................5 About the Safety and operating instructions ....................5 Safety instructions ............................5 Safety signal words ..........................5 Personal precautions and qualifications ....................5 Transport ............................... 5 Installation, storage, maintenance and disposal ..................5 Operation ............................... 5 Testing .............................. -
Page 5: Introduction
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Epiroc is a leading productivity partner for the mining, infrastructure and natural resources CAUTION Indicates a hazardous situation which, if not avoided, industries. With cutting-edge technology, Epiroc... -
Page 6: Testing
Safety and operating instructions LPHB-M Testing Installation, precautions Testing of the hydraulic installation must only be carried out by professional technicians. The technicians must be authorised to approve a WARNING Ejected working tool hydraulic installation in accordance with national If the tool retainer on the machine is not in a locked directives. -
Page 7: Operating, Precautions
LPHB-M Safety and operating instructions Operating, precautions Never operate unless the inserted tool is ► retained in the machine with a proper tool retainer. WARNING Operating pressure WARNING Slipping, tripping and falling If the maximum operating pressure for the hazards hydraulic machine is exceeded, it can result in material damage and personal injury. - Page 8 Safety and operating instructions LPHB-M effective for the type of substance at issue (and DANGER Electrical hazard if applicable, approved by relevant The machine is not electrically insulated. If the governmental authority). machine comes into contact with electricity, serious Work in a well ventilated area.
-
Page 9: Maintenance, Precautions
LPHB-M Safety and operating instructions Use damping material to prevent work pieces ► from 'ringing'. Maintenance, precautions CAUTION Hot machine The machine can become hot when used. Touching it can lead to burns. Never touch a hot machine. ► Wait until the machine has cooled down before ►... -

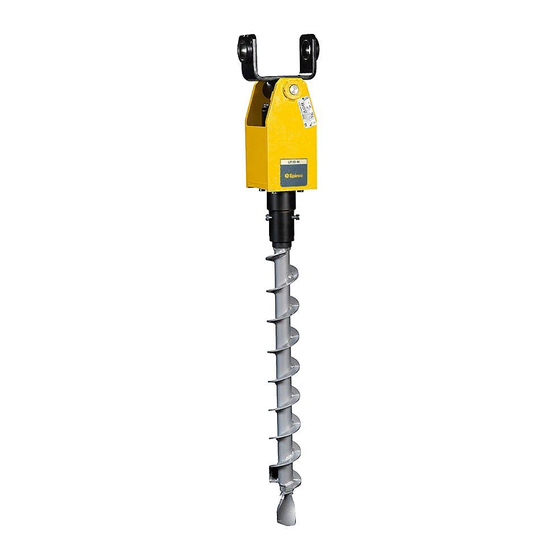

Page 10: Overview
1.5 m (59 in.) with machine maintenance. The labels must be in such standard Epiroc insertion tools in sizes from ø90 to condition that they are easy to read. New labels ø350 mm (3.54 - 13.78 in.). The posthole borer is can be ordered from the spare parts list. -
Page 11: Rpm Label
LPHB-M Safety and operating instructions RPM label Tighten the nuts on the connections of the ► hydraulic hoses to the required torque. Check that the hydraulic hose and the ► connections are not damaged. Hoses For connection on the machine, the hydraulic hose must be approved for a working pressure of at least 172 bar (2,500 psi) and have a 12.7 mm (½... -
Page 12: Pressure Adjustment
Safety and operating instructions LPHB-M oil can then be used within a wider temperature Make sure that the insertion tool is fully inserted ► range. The machine must not be used, if oil and the tool retainer is tightened before the viscosity fails to remain within the permitted area, machine is started. -
Page 13: Operation
LPHB-M Safety and operating instructions Operation 1. Connect the pressure and return hose. Operating temperatures The operating temperatures of the hydraulic attachment are between -20ºC (-4°F) and +80ºC (+176°F). 2. Run the hydraulic oil through the carrier's oil CAUTION Temperature hazard... -
Page 14: Maintenance
Safety and operating instructions LPHB-M 6. Drive out the linkage bolt with a steel arbour Storage and a hammer. 7. Switch on the carrier and retract the bucket cylinder. WARNING Falling machine Falling machine can cause injuries. 8. Move the carrier stick out of the adaptor plate. -
Page 15: Technical Data
LPHB-M Safety and operating instructions Technical data Machine data LPHB-M Weight, kg (lb) 31 (68) Measurement, LxHxW, mm (in.) 555 x 175 x 209 (21.9 x 6.9 x 8.2) Oil flow, l.p.m 20-60 Working pressure, bar 100-140 Maximum pressure, bar... -
Page 16: Ec Declaration Of Conformity
Safety and operating instructions LPHB-M EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Anbaufräsen PC GmbH, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and the harmonised standards mentioned below. - Page 20 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. epiroc.com...
