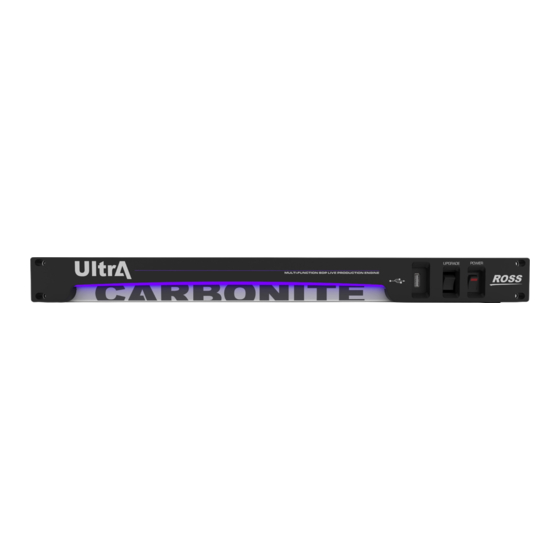

Ross CARBONITE ULTRA Quick Start

Audio/Video Inputs/Outputs/Reference

CUF-124
Reference
Output
In
HD-BNCs
PS1 PS2
TALLY GPIO
SERIAL
UPGD SD REF MV OUT OUT
OUT IN 1 2 3 4 5 6 7 8 9 10
Reference MultiViewer
Out Out
Notes:
• The I/O MultiViewers are only available on MV OUT 1-2 and the Video Processor MultiViewers are only available on MV OUT 3-4.
• Audio is not embedded in the MultiViewer output.
• Only outputs 5-14 can have a FSFC assigned to them.
• In UHDTV1, only inputs 3-6 and 8-11 can accept Quad-Link 3Gb/s 2SI or QSD. All other inputs can only accept Single-Link 12Gb/s 2SI
without FSFC conversion.

Ports, Pinouts, and Diagnostics

Serial Tally GPI I/O
PS1 PS2
TALLY
SERIAL
REF
UPGD SD MV OUT OUT
OUT IN 1 2 3 4 5 6 7 8
Power Network

Specifications

SDI Input Formats

480i 59.94Hz
576i 50Hz
720p 50/59.94/60Hz
1080i 50/59.94/60Hz
1080pSF 23.98/24/25/29.97Hz
1080p 23.98/24/25/30/29.97/30/50 (A)/59.94 (A)/60Hz
UHDTV1 23.98/24/25/29.97/30 (Single-Link 12Gb/s
2SI, Quad-Link 3Gb/s 2SI, Quad-Link 3Gb/s QSD)
© 2020 Ross Video Limited. Ross®, MiniME™, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the preparation of this
document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
CAUTION:
Before you set up and operate your switcher, see the
"Important Safety Instructions" in your Setup manual.
LTC AES
In Out
Input
HD-BNCs
1 2 3 4 5 6 7 8
LTC AES1 AES2
IN
11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

UHD Input/Output

OUT
Quad-Link 3Gb/s 2SI/QSD
5 6 7 8 9 10 11 12 13 14
Single-Link 12Gb/s 2SI/QSD
IN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
USB
DIP
Switches
GPIO
1 2 3 4 5 6 7 8 LTC AES1 AES2
IN
9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
LTC-
LTC+ GND
LTC-

Default Values

Power
Frame IP 192.168.0.123 Consumption 114W 7.6A 15V
FTP User name user Input Voltage
FTP Password password
Tally Rating
Input Voltage: 24VAC (rms) / 40VDC
Maximum Current: 120mA
Impedance: < 15 ohms
Temperature
Operating: 0 - 40°C (32 - 104°F)
Storage: -20 - 85°C (-4 - 185°F)
Power Cabling
PS1 PS2
TALLY GPIO 1 2 3 4 5 6 7 8
SERIAL
UPGD SD REF MV OUT OUT
OUT IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14
18 19 20 21 22 23 24
PS1 PS2
TALLY GPIO 1 2 3 4 5 6 7 8
SERIAL
UPGD SD REF MV OUT OUT
OUT IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14
20 21 22 23 24
ETHERNET
OUT
RESTART
1 2
Note:
It is recommended that you always connect the AC Power
Adapter to the device before connecting to Mains Power.
UPGRADE POWER
GPI I/O
(female DB25)
ON
OFF
Pin Signal Pin
1 GPI I/O 1 14
Power
2 GPI I/O 2 15
Switch 3 GPI I/O 3 16
4 GPI I/O 4 17
5 GPI I/O 5 18
6 GPI I/O 6 19
7 GPI I/O 7 20
8 GPI I/O 8 21
9 GPI I/O 9 22
16 17 18 19 20 21 22 23 24
10 GPI I/O 10 23
11 GPI I/O 11 24
AES+
12 GPI I/O 12 25
13 GPI I/O 13
AES-

Video Input Specifications

Equalization >40m @ 12Gb/s
100-120V~ (using Belden 1694 cable) >100m @ 1.5 Gb/s
220-240V~ >300m @ 270 Mb/s (5°-40°C)
47-63Hz Impedance 75 ohm, terminating
Video Inputs SMPTE 259M/292M serial digital
(non-looping)

Reference Inputs

Standard Definition — analog black
(non-terminating, looping) High Definition — tri-level sync
QuickStart
Control Cabling
LTC AES1 AES2
IN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
OR
PS1 PS2
LTC AES1 AES2
IN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Ultripower
To external
serial device
RESET
3 4
Mains
Power
Tally
(female DB25)
Signal Pin Tally Pin Tally
GPI I/O 14 1 Tally 1 14 Tally 14
GPI I/O 15 2 Tally 2 15 Tally 15
GPI I/O 16 3 Tally 3 16 Tally 16
GPI I/O 17 4 Tally 4 17 Tally 17
GPI I/O 18 5 Tally 5 18 Tally 18
GPI I/O 19 6 Tally 6 19 Tally 19
GPI I/O 20 7 Tally 7 20 Tally 20
GPI I/O 21 8 Tally 8 21 Tally 21
GPI I/O 22 9 Tally 9 22 Tally 22
GPI I/O 23 10 Tally 10 23 Tally 23
GPI I/O 24 11 Tally 11 24 Tally 24
Ground 12 Tally 12 25 Common
13 Tally 13

Video Output Specifications

Return Loss < -7.8dB @ 12Gb/s
< -15dB @ 1.5Gb/s
< -10dB @ 3Gb/s
Rise and Fall Time 27ps +/- 10% (UHD)
800ps +/- 10% (SD)
240ps +/- 10% (HD)
Signal Level 800mV +/- 10%
DC Offset 0 Volts
Overshoot < 10%
SDI HD Mode 10-bit SMPTE-292M/424M
SDI UHD Mode SMPTE ST 2082-1:2015 (1:2016)
To control
panel
Ethernet To
DashBoard
To external
ethernet devices
TALLY GPIO 1 2 3 4 5 6 7 8
SERIAL LTC AES1 AES2
UPGD SD REF MV OUT OUT IN
OUT IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Connect video
inputs as needed
Connect Program, Preview,
and aux outputs as needed
Connect external
reference or use
internal reference
DashBoard
Power
Display
Switch
Serial
(rear)
(female RJ-45)
Ethernet
Pin RS-422
1 Tx+
2 Tx- OSD
3 Rx+ Remote
4 n/c
5 n/c
6 Rx-
7 Ground
8 Ground
Power
(front)
Power

AES Output Specifications

Audio Depth 24-bit in HD
20-bit in SD
Channels 1 Stereo Pair
File Format Multi-Channel
Waveform Audio File
Impedance 110 Ohms, differential
Min/Max Output Voltage 1.5/6V peak-to-peak
Swing
Rise and Fall Times 20ns (typical)
Sample Rate 48kHz
Synchronization Locked to Video
4841DR-200-07
