1
Shipping Package
This shipping package contains the following items
2
Connecting the Power and Host device
Switch on module and connect it to an EtherCAT network
Connect the Host
device to the IN port on
ECAT-2000 module.
Red, OK
PWR
█
Technical support:

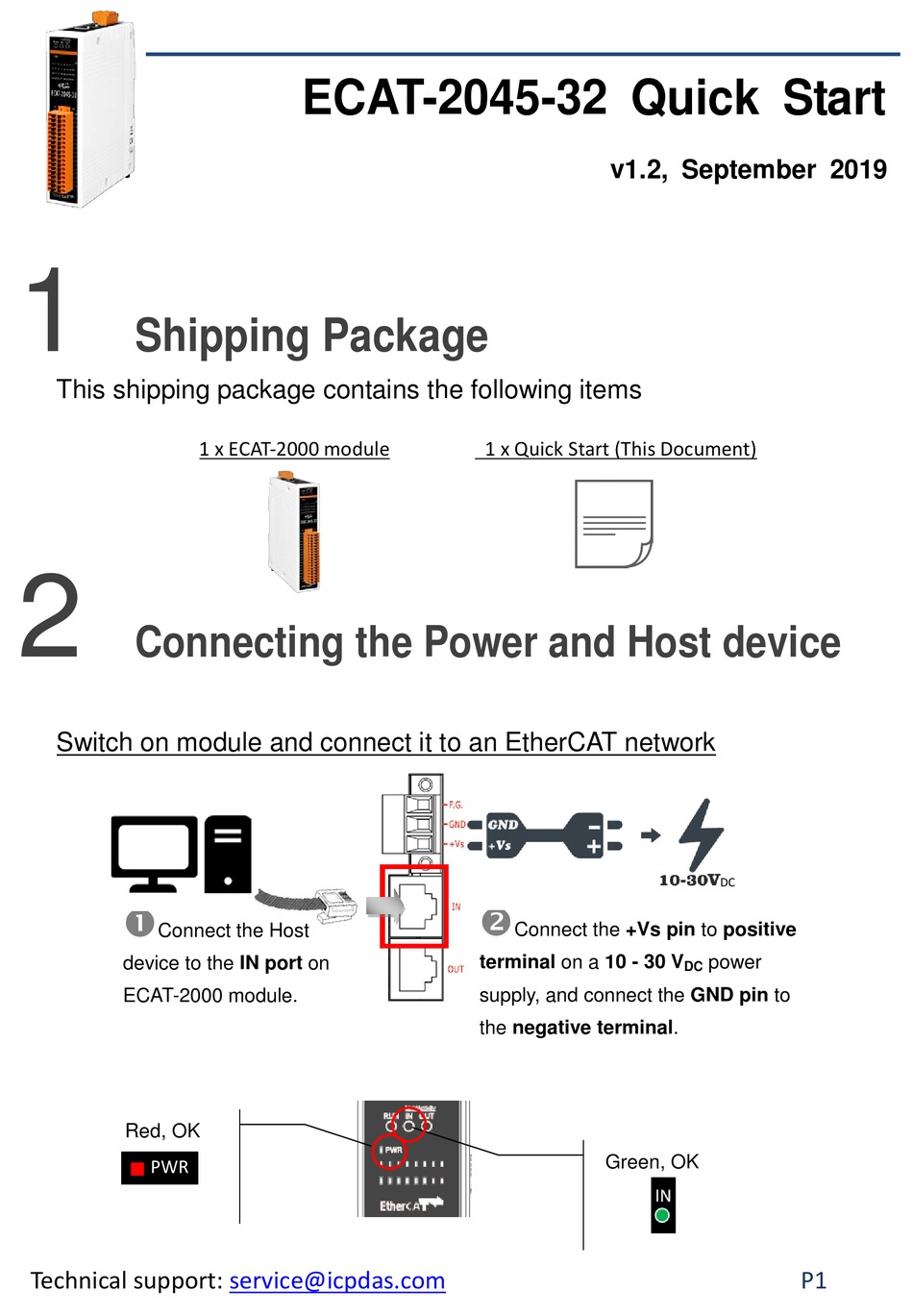

ECAT-2045-32 Quick Start
1 x ECAT-2000 module
service@icpdas.com
v1.2, September 2019
1 x Quick Start (This Document)
Connect the +Vs pin to positive
terminal on a 10 - 30 V
supply, and connect the GND pin to
the negative terminal.
Green, OK
DC
power
DC
P1
Advertisement
Related Manuals for ICPDAS ECAT-2045-32
Summary of Contents for ICPDAS ECAT-2045-32
- Page 1 ECAT-2045-32 Quick Start v1.2, September 2019 Shipping Package This shipping package contains the following items 1 x ECAT-2000 module 1 x Quick Start (This Document) Connecting the Power and Host device Switch on module and connect it to an EtherCAT network ...
- Page 2 The latest ESI file (ICPDAS ECAT-2000.xml) can be downloaded from ICP DAS web site at http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethercat/slave/ecat-2000/software/ Install the ESI file Copy the “ICPDAS ECAT-2000.xml” file to the Master Tools installation folder, as indicated in the table below. Software Default Path...
- Page 3 2 complete. complete. Insert the wire Remove the wire Wire Diagrams Sink Output ON State OFF State Type Readback as 1 Readback as 0 EXT.PWR EXT.PWR Drive Relay EXT.GND EXT.GND EXT.PWR EXT.PWR Resistance EXT.GND EXT.GND Technical support: service@icpdas.com...
