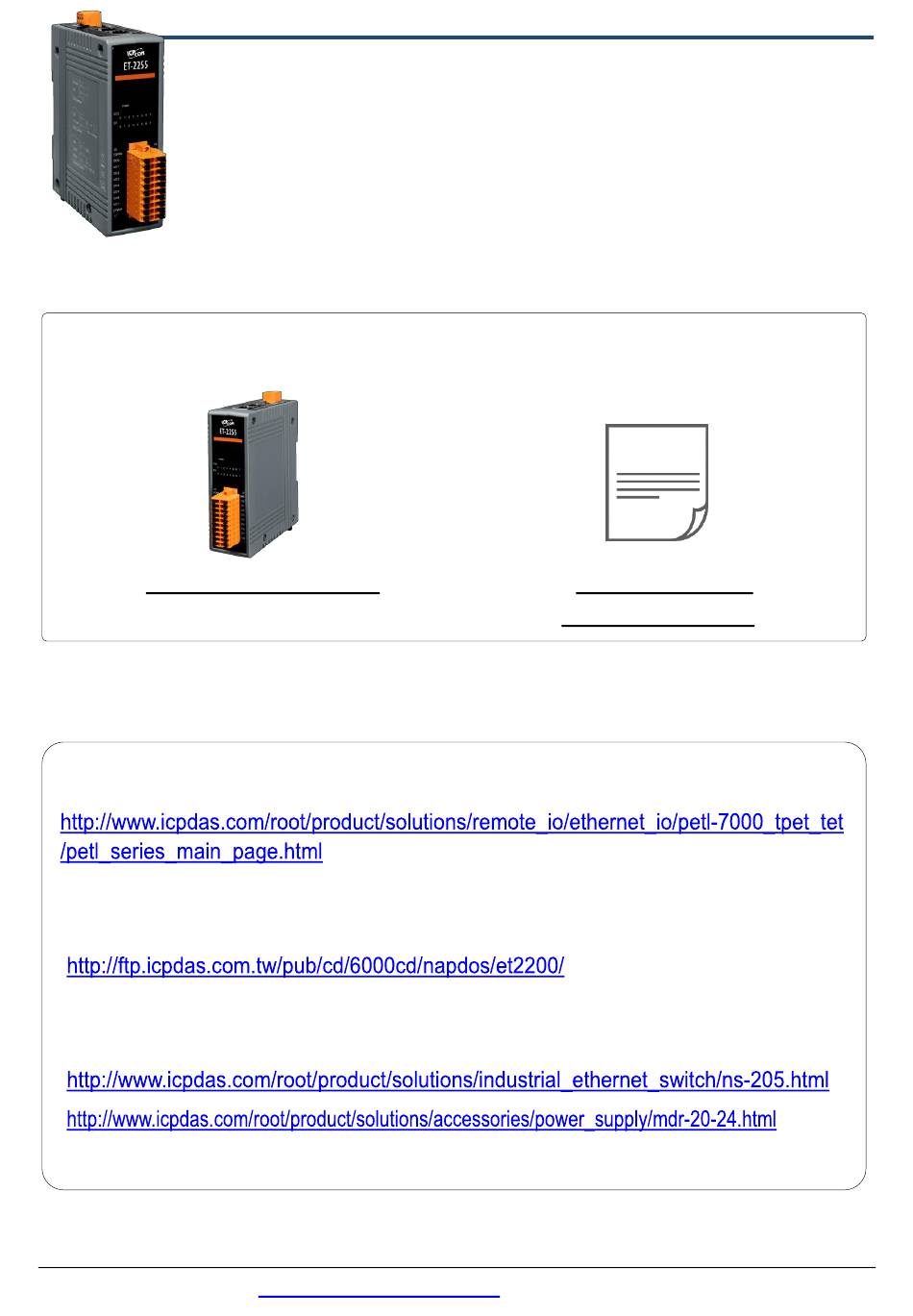

What's in the box?
The package includes the following items:

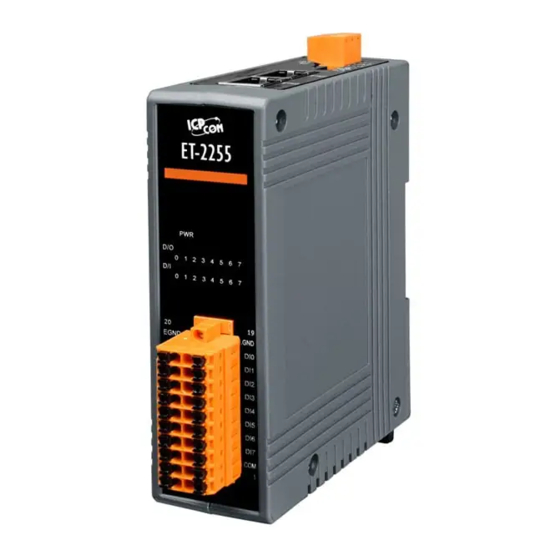

ET-2255 Module x 1
Related Information
ET-2200 Series Product Page:
Documentation & Firmware:
NS-205/MDR-20-24 Product Page (optional):
Technical support:
ET-2255 Quick Start
service@icpdas.com
v1.2, Jun. 2018
Quick Start x1
(This Document)
P1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICPDAS ET-2255
Summary of Contents for ICPDAS ET-2255
- Page 1 ET-2255 Quick Start v1.2, Jun. 2018 What’s in the box? The package includes the following items: ET-2255 Module x 1 Quick Start x1 (This Document) Related Information ET-2200 Series Product Page: Documentation & Firmware: NS-205/MDR-20-24 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 5 may not work. (Please contact with your system Administrator) Connect both the ET-2255 and your PC to the same sub network or the same Ethernet switch. Supply power (+10~+30 V ) to the ET-2255.
- Page 3 OPEN or <1 V 7.5K 7.5K Sink E.GND E.GND Resistance Load E.PWR E.PWR To other channels To other channels DI.COM DI.COM +5 ~ +50 V OPEN or <1 V 7.5K 7.5K Source To other channels To other channels DI.COM DI.COM Technical support: service@icpdas.com...
- Page 4 A tip for removing the wire from the connector 1) Connect the DI0 pin (Pin17) to the DO0 pin (Pin18). 2) Connect the External Power +24V to the DI.COM pin (Pin01) and E.PWR pin (Pin02). 3) Connect the External Power GND to the E.GND (Pin20). Technical support: service@icpdas.com...
-
Page 5: Modbus Address
Digital Input (0x0) 1:On 0:no Digital latched status (high) (0x20) 1:latched 0:no Digital latched status (low) (0x40) 1:latched “R”: Read Note For detail “DI/DO Modbus Address” information, refer to Section 6.3 Modbus Register Table of user’s manual (http://ftp.icpdas.com/pub/cd/6000cd/napdos/et2200/document/). Technical support: service@icpdas.com... -
Page 6: Configuring Network Settings
Subnet Mask 255.255.0.0 Gateway 192.168.0.1 4) Contact your Network Administrator to obtain a correct network configuration (such as IP/Mask/Gateway). Enter the network settings and click “OK”. Note: The ET-2255 will use the new settings 2 seconds later. Technical support: service@icpdas.com... - Page 7 ET-2255 is working well with new configuration. 2) Click the name of ET-2255 to select it. 3) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the ET-2255 in the address bar of the browser.) ...
- Page 8 Digital Input and Output functionality. 6) In the “Digital I/O” section, click the “DO0” button to ON (Red). 7) The corresponding DI becomes green for DI0 is ON. Technical support: service@icpdas.com...
