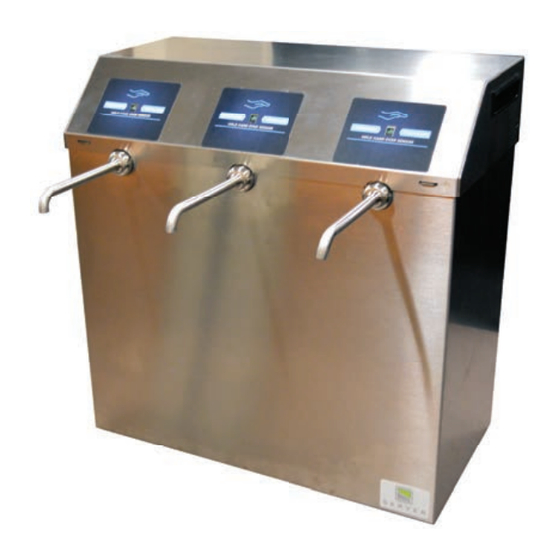

Server Touchless Express SE-3-T Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

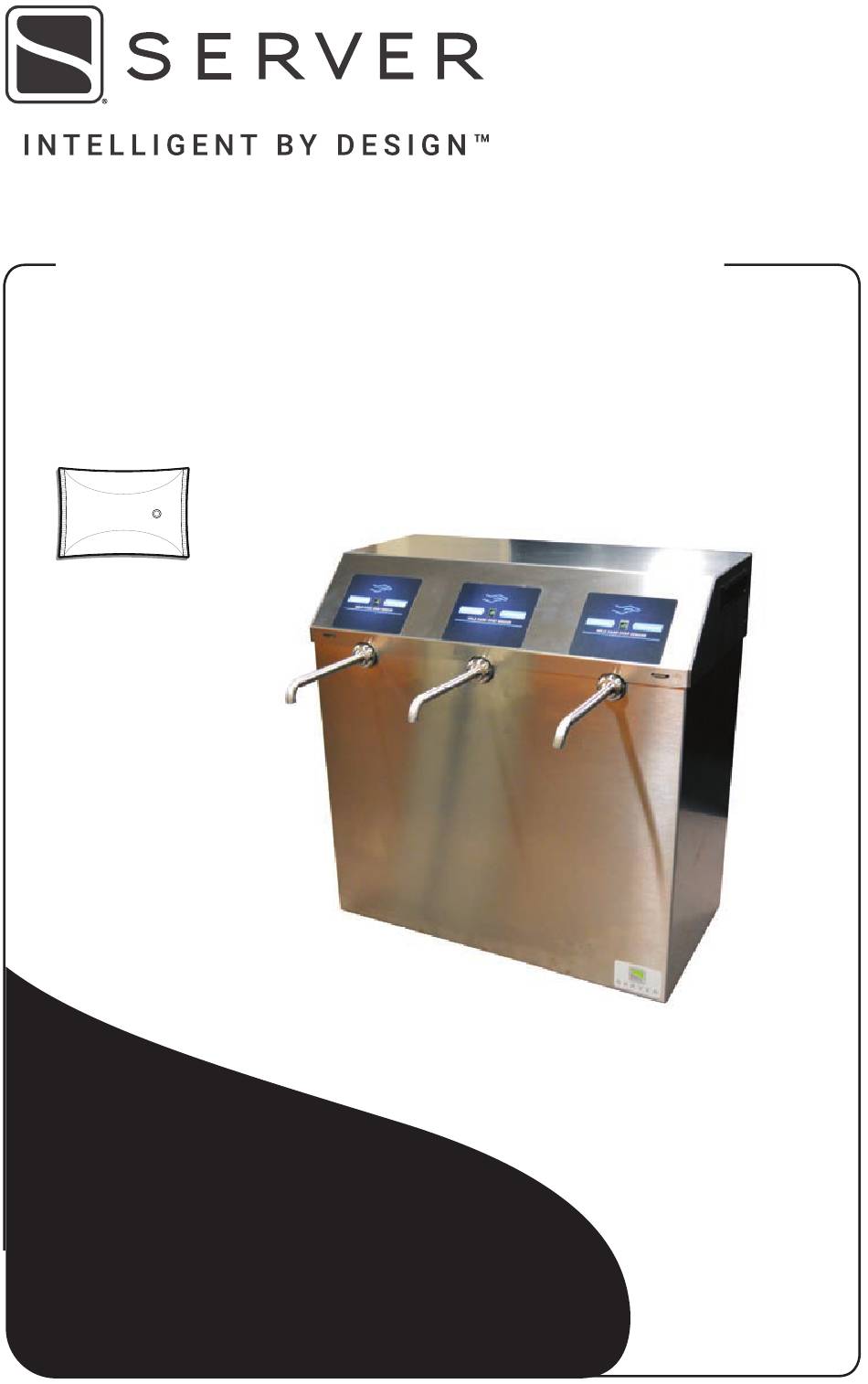

Server Touchless Express
Featuring PerfectSense™ Technology
Used with pouches up to
1½ gallons with 16mm
fi tments.
MODEL:
SE-3-T
CUSTOM
Thank You
...for purchasing our Server Touchless Express™
Pouched Condiment Dispenser. This portion
controlled unit is sealed and sanitary, achieves
excellent evacuation and has only a few parts for easy
clean-up.
SIMPLIFY CONDIMENT MANAGEMENT— GO TOUCHLESS
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the Touchless Express SE-3-T and is the answer not in the manual?

Questions and answers

Related Manuals for Server Touchless Express SE-3-T

Summary of Contents for Server Touchless Express SE-3-T

  • Page 1 fi tments. MODEL: SE-3-T CUSTOM Thank You ...for purchasing our Server Touchless Express™ Pouched Condiment Dispenser. This portion controlled unit is sealed and sanitary, achieves excellent evacuation and has only a few parts for easy clean-up. SIMPLIFY CONDIMENT MANAGEMENT— GO TOUCHLESS...
  • Page 2 TOUCHLESS EXPRESS MODEL ™ SE-3-T - CUSTOM 100421 PUMP MODEL 07577 DOME 07399 PINCH VALVE 85249 PUMP HOUSING 07386 DISCHARGE TUBE 07576 TUBE 07089 CONNECTOR for 16mm fi tment (CLEAR) 07381 Page 2...
  • Page 3 PARTS - TOUCHLESS SERVER EXPRESS™ ASSEMBLY 100381 POUCH SUPPORT 07159 Power Supply/Cord 100273 PUMP 07577 See page 2 for individual pump parts. SHROUD 100373 Replacement Feet Available 92098 11" BRUSH 82049 BRUSH 82526 Page 3...
  • Page 4 This unit must be earthed or grounded. temperature the product is required to maintain. This requires all three prongs (terminals) on cord Server Products, Inc. can not be responsible for plug to be plugged into power source. the serving of potentially hazardous product.

  • Page 5: Pump Assembly

    WASH ALL PARTS PUMP ASSEMBLY PROPERLY BEFORE USE. See page 11. INSERT PINCH VALVE into discharge tube. TIP: Squeeze the pinch valve open before installation to ensure it isn’t stuck shut. INSERT DISCHARGE TUBE INTO PUMP HOUSING Twist onto threads. INSTALL DOME Press dome into Wrap loop...
  • Page 6 SETUP PRACTICE SAFETY. WASH ALL PARTS PROPERLY BEFORE USE. See page 11. Before first use and periodically throughout IMPORTANT! operation, clean sensor window with a microfiber cloth to keep it free of debris in order to function properly. ATTACH POUCH TO PUMP Firmly press piercing connector into center of pouch fitment.
  • Page 7 PLACE LID ON TOP Align slots on front of lid with tabs on front of shroud and set into place. Lock latches on both sides of lid to secure. Lock in back if necessary (lock not included). Aligning lid slots Locking latches on both Lid Lock Placing lid on...

  • Page 8: How To Operate

    HOW TO OPERATE TOUCHLESS DISPENSE Place one hand over sensing window while holding portion cup or food item underneath dispensing point. HOW IT WORKS • The sensing window detects your hand 1" to 3" away from the surface of the window. •...
  • Page 9 SENSOR LIGHT WHAT DO THE DIFFERENT SENSOR LIGHT COLORS MEAN? • Sensor light color sequences at time of dispenser power up. For the Relish sensor, first there will be a red sensor light for four seconds, then a green sensor light for four seconds, then finally a blue sensor light that will appear and stay lit, indicating the dispenser is in a ready state to begin dispensing.
  • Page 10 TAKE-DOWN & DISASSEMBLY POWER DOWN Turn power switch to the "Off" position and unplug unit from the power source. REMOVE LID Release locking latches on both sides of lid and pull lid up then slide the lid forward to disengage lid slots from the shroud tabs on front of the unit.

  • Page 11: Care Of Stainless Steel

    CLEANING WARNING- ELECTRICAL SHOCK COULD OCCUR • Electrical components of unit could be damaged from water exposure or any liquid. YES! • Never immerse lid into water or any liquid. Use dishwashing • Never use any water jet or pressure soap and hot water sprayer on lid.

  • Page 12: Troubleshooting

    Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired Touchless Express units are backed by a and ship out within 48 hours of receipt.
