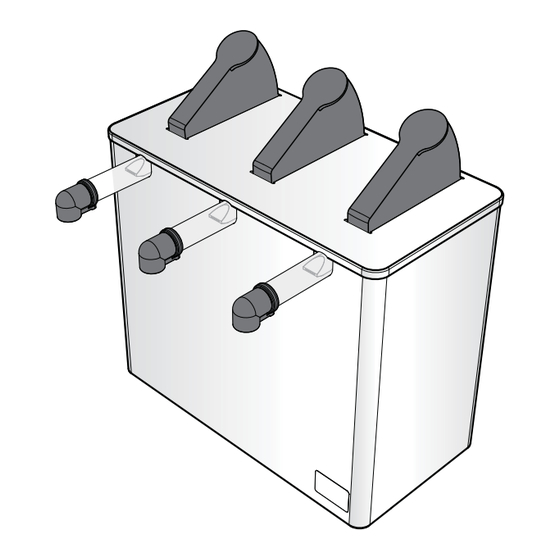

Server Express
™
Used with pouches up to
1½ gallons with 16mm fitments.
MODELS:
SE-3
SE-3DI
SE-4
SE-4DI
SE-5
SE-5DI
Thank You
...for purchasing our Server Express™ Pouched
Condiment Dispenser. This portion controlled unit is
sealed and sanitary, achieves excellent evacuation and
has only a few parts for easy clean-up.
SIMPLIFY CONDIMENT MANAGEMENT— GO POUCHED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arbys SE-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Server Arbys SE-3

Summary of Contents for Server Arbys SE-3

  • Page 1 SE-3DI SE-4 SE-4DI SE-5 SE-5DI Thank You ...for purchasing our Server Express™ Pouched Condiment Dispenser. This portion controlled unit is sealed and sanitary, achieves excellent evacuation and has only a few parts for easy clean-up. SIMPLIFY CONDIMENT MANAGEMENT— GO POUCHED...
  • Page 2 SERVER EXPRESS MODELS ™ SE-3 SE-4 SE-5 07124 07180 07122 Triple Quadruple Quintuple SE-3DI SE-4DI SE-5DI 07127 07190 07123 Triple Drop-In Quadruple Quintuple Drop-In Drop-In PARTS LEVER 07014 HINGE PIN 07161 LID ASSEMBLY MODEL(S) (ROUNDED ASSEMBLY ROLLER CORNERS) 07056 07124, 07127...
  • Page 3 Check with local food and safety regulators for specific guidelines. Server Products, Inc. cannot be NSF International lists this pump as: responsible for the serving of potentially hazardous “Not acceptable for dispensing potentially...

  • Page 4: Pump Assembly

    WASH ALL PARTS PUMP ASSEMBLY PROPERLY BEFORE USE. See page 7. INSERT PINCH VALVE into pump housing. TIP: Squeeze the pinch valve open before installation to ensure it isn’t stuck shut. INSTALL DOME Press dome into Wrap loop housing fully. around lower opening to Ensure valve flap...
  • Page 5 SETUP ATTACH POUCHES TO PUMPS Firmly press piercing connector into center of pouch fitment. An audible click indicates a secure connection. CLICK INSTALL PUMPS Slide pouch and pump into pouch support within shroud. Align pump guides into slots in shroud. PLACE LID ON TOP PRIME PUMPS Press lever several times until you see...

  • Page 6: Portion Control

    TAKE-DOWN & DISASSEMBLY REMOVE LID REMOVE PUMP & POUCH DETACH PUMP FROM POUCH FLUSH & RINSE PUMP Place lower end of pump into container of hot water. Pump until all remaining product is expelled and only water flows from discharge tube. DISASSEMBLE PORTION CONTROL THE LID IS SET TO DELIVER 1 OZ PORTIONS.

  • Page 7: Care Of Stainless Steel

    CLEANING CLEAN After disassembling, clean all washable parts with soap and hot water. YES! Use dishwashing RINSE soap and hot water fully with clear water. • External surfaces may be wiped clean with a clean damp cloth. • Glass and surface cleaners approved for use in food contact areas may be used.

  • Page 8: Troubleshooting

    Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired Server Products equipment is backed by a and ship out within 48 hours of receipt.
