Innovations in Trunked & Conventional 2-Way Radios
VERY
COMPACT
PROFESSIONAL
TWO-WAY
RADIOS
Synthesized and Programmable
Conventional and/ or Trunked Operation (LTR®
and PassPort® Protocols), Programmable on a
Per-channel Basis
Ultra-small Size
1-, 2- or 3-Watt Transmitter Power
Ten Channels
In Trunking Mode: Flexible Dynamic Allocation
allows up to 100 Channels in any number of
System Configurations
Large Speaker enables Louder Audio Output,
even in Noisy Environments
20 Megahertz Bandwidth
Multi-Mode Capability Transmitter: Wide or
Narrow Bandwidth Switching, Programmable on
a Per-channel Basis
Programmable Quiet Call® Tone Squelch, Digital
Quiet Call
and DTMF Encode
tm
Channel Scan, Normal and Priority
Battery Saver
Channel Display
PATRIOT HANDHELD
Model:
SST-454D
OWNER'S MANUAL
Have questions? Call 800-USA-1-USA (800-872-1872)
or visit our website at www.ritron.com
www.TwoWayRadioEquipment.com | (800) 878-7829 | Sales@TwoWayRadioEquipment.com
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Ritron PATRIOT PLUS
Summary of Contents for Ritron PATRIOT PLUS
- Page 1 Programmable Quiet Call® Tone Squelch, Digital Quiet Call and DTMF Encode Channel Scan, Normal and Priority Battery Saver Channel Display PATRIOT HANDHELD Model: SST-454D OWNER'S MANUAL Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com www.TwoWayRadioEquipment.com | (800) 878-7829 | Sales@TwoWayRadioEquipment.com...
-
Page 2: Accessories
MHS-A ....Cordura Holster w/quick release BCPS-4AD .... 4-Well Drop-in Charger: SST BCPS-AD ....Single-Well Drop-in Charger: SST (Overnight) BCC-PS ....Drop-in High-rate Charger/Conditioner BCPS-AD Single-Well Drop-in Charger CALL RITRON for complete listings. RHD-4X RHD-5X MHS-A Dual Ear Headset Over-the-ear Earset... -
Page 3: Table Of Contents

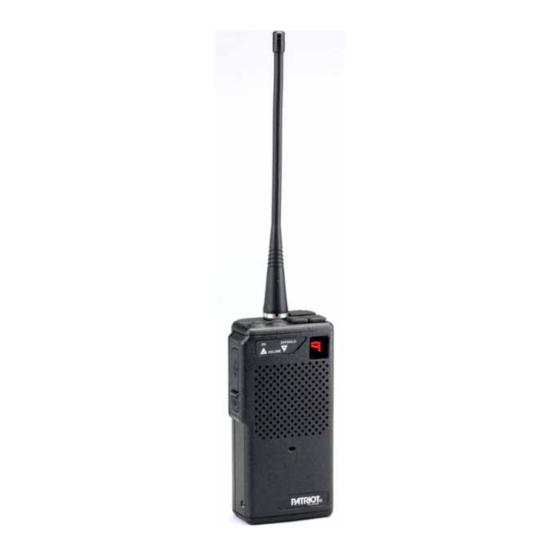

The PATRIOT Plus SST-454D handheld is a compact, synthesized, PC programmable, ten- channel two-way radio. It is designed to operate in both Trunking and Conventional modes in the professional UHF FM Business Band. -
Page 4: Control And Operation
MICROPHONE The battery pack may be charged through this The microphone allows your voice to be heard in jack using the RITRON charger cube. Refer to transmissions to other radios. Speak in a normal Accessories, page ii, for additional charging tone;... -
Page 5: Conventional Operation
If a signal is received the channel programming for Monitor Lockout. See your display will indicate the channel number, and Ritron dealer or contact Ritron directly to disable when the received signal is removed the radio will this option. -
Page 6: Scan Operation
The blocked channel will be returned to the See your Ritron dealer or contact Ritron directly scan list if the radio is turned off, or when the for PC programming of this option. -
Page 7: What The Radio Tones Mean
These the RITRON PC Programmer for optional alert tones can tell you that the radio is working as tones. See your Ritron dealer or contact Ritron you expect. directly for programming of these options. -
Page 8: Batteries
• Do not dispose of a battery in a fire. An completely charges in about twelve hours. explosion might result. To charge the battery with a RITRON cube BATTERY MAINTENANCE & CONDITIONING charger: Plug the charger cord into the charge jack (marked "CHG") on top of the Due to the extended run time of the SST-454D radio. -
Page 9: Fig-2: Battery Access And Installation
BATTERIES FIG-2: BATTERY ACCESS & INSTALLATION 1. Hold the radio as shown in figure (A) at left. BATTERY ACCESS DOOR 2. Use your thumbnail to open the Door Latch, as shown in figure (B) at left. 3. Lift and rotate the Battery Access Door to DOOR LATCH release it as shown in figure (C) at left. -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Possible Solution(s) GENERAL The radio does not work at all. Make sure that the battery is installed correctly, as shown in FIG—2. Recharge or replace the battery. (Note 1.) Operating features do not work exactly as The radio has been dealer programmed for expected. -
Page 11: Troubleshooting Notes
"good" after you try the second charger, the first charger might be faulty. If you think that an accessory is not operating properly, contact your dealer or RITRON. 2. Reception can often be improved by moving a short distance. This effect is more noticeable inside buildings. -
Page 12: Cautions - All Radios
• Use only the antenna(s) available from power a radio with a depleted battery; RITRON for these models. DO NOT always charge batteries overnight after attempt to substitute any other antenna. DO NOT operate the radio without an antenna. - Page 13 NOTES www.TwoWayRadioEquipment.com | (800) 878-7829 | Sales@TwoWayRadioEquipment.com...
-
Page 14: Fcc License Required
HOW TO OBTAIN AN FCC RADIO LICENSE Federal Communications Commission (FCC) Licensing Information Because your Ritron radio operates on Private Land Mobile frequencies, it is subject to the Rules and Regulations of the FCC, which requires all operators of these frequencies to obtain a station license before operating their equipment. -
Page 15: Ritron, Inc. Limited Warranty
• Installation, maintenance or service of the product, unless this is covered by a separate written agreement with RITRON; • Any products not furnished by RITRON which are attached or used with the covered product, or defects or damage from the use of the covered product with equipment that is not covered (such as defects or damage from the charging or use of batteries other than with covered product);... - Page 16 Designed to work as an integrated system or as an add-on to virtually any existing two-way radio system Quick Talk OutPost Basic Quick Talk OutPost Two-Way Callbox Ruggedized Two-Way Callbox Battery-operated callboxes provide instant wireless communication over existing two-way radio systems Quick Talk Alert for Remote Monitoring of...
