Innovations in Trunked & Conventional 2-Way Radios

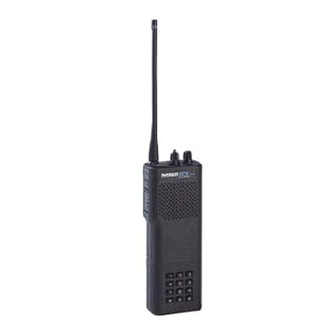

RUGGED, PROFESSIONAL TWO-WAY RADIOS
Synthesized and Programmable on a per-Channel Basis
Conventional and Trunked Operation (LTR® and PassPort® Protocols);
Programmable on a per-Channel Basis
2- or 4-Watt Transmitter Power
Eleven Channels in Conventional Mode
In Trunking Mode: Flexible Dynamic Allocation allows up to 100 Channels
in any number of System Configurations
Large Speaker with Very Loud Audio Output, Great in Noisy Environments
Companded Audio: Reduces Background Noise and Increases Received
Voice Audio for Clearer Voice Communications
30 Megahertz Bandwidth
Multi-Mode Capability - Wide or Narrow Bandwidth Switching, Programmable
on a Per-channel Basis
Programmable Quiet Call® Tone Squelch, Digital Quiet Call
Encode
Channel Scan, Normal and Priority
Battery Saver
High-capacity Battery
PATRIOT HANDHELD OWNER'S MANUAL
Innovations in Trunked & Conventional 2-Way Radios
RUGGED, PROFESSIONAL TWO-WAY RADIOS
Synthesized and Programmable on a per-Channel Basis
Conventional and Trunked Operation (LTR® and PassPort® Protocols);
Programmable on a per-Channel Basis
2- or 4-Watt Transmitter Power
Eleven Channels in Conventional Mode
In Trunking Mode: Flexible Dynamic Allocation allows up to 100 Channels
and DTMF
TM
Model:
RTX-454
