- Page 1 HANDHELD RADIO OWNER'S MANUAL...
-
Page 2: Table Of Contents
Battery Maintenance and Conditioning ... 5 BCJS-AD RSM-3X 1. Belt Clip Installation ... 3 2. Operating Controls ... 3 3. Battery Access and Installation ... 4 NOTE: Call RITRON at 1-800-USA-1-USA to order, or for a complete accessory listing. page ii... -
Page 3: Fcc Regulations
Federal law prohibits you from making any internal adjustments to the transmitter, and/ or from changing transmit frequencies unless you are specifically designated by the licensee. If your radio equipment fails to operate properly, or you wish to have the radio programmed, contact your authorized dealer or Ritron. RITRON, INC., Repair Department... -
Page 4: General

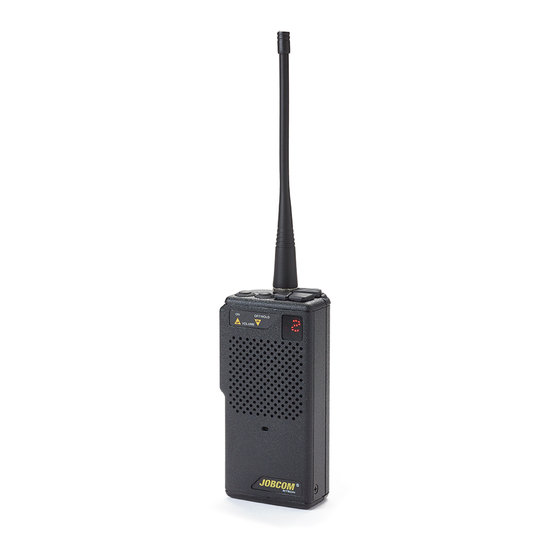

INTRODUCTION GENERAL The JOBCOM JMX-102 radio is designed for business and industry, equipped for two-way operation on one channel. It may be used with optional accessories. Each JOBCOM radio is packaged with a flexible antenna, a plug-in battery charger and a recharge-able Ni-Cad battery pack installed. -
Page 5: Fig-1: Belt Clip Installation
BELT CLIP FIG—2: OPERATING CONTROLS FIG—1: BELT CLIP INSTALLATION IMPORTANT: For assistance, call 800-USA-1-USA (800-872-1872) CONTROL & OPERATION Charge the battery pack before using the radio for the first time. Refer to BATTERIES, page 5. ANTENNA A VHF antenna is packaged with the radio; use only this type of antenna with your unit. -
Page 6: Fig-3: Battery Access And Installation
FIG—3: BATTERY ACCESS & INSTALLATION BATTERY ACCESS DOOR DOOR LATCH Hold the radio as shown above (A). Use your thumbnail to open the Door Latch, as shown below (B). Lift and rotate the Battery Access Door to release it (C). BOTTOM VIEW OF THE RADIO LATCH CLOSED... -
Page 7: General
TO CHARGE THE BATTERY WITH A RITRON DROP-IN CHARGER Two charger contacts—visible through the radio case bottom—permit charging the battery with an optional Ritron drop-in charger. The battery pack may be either charged inside the radio case, or removed from the radio case for charging. Each drop-in charger comes with a spacer to permit charging a "spare"... - Page 8 • Installation, maintenance or service of the product, unless this is covered by a separate written agreement with RITRON; • Any products not furnished by RITRON which are attached or used with the covered product, or defects or damage from the use of the covered product with equipment that is not covered, such as defects or damage from the charging or use of batteries other than with covered product;...
