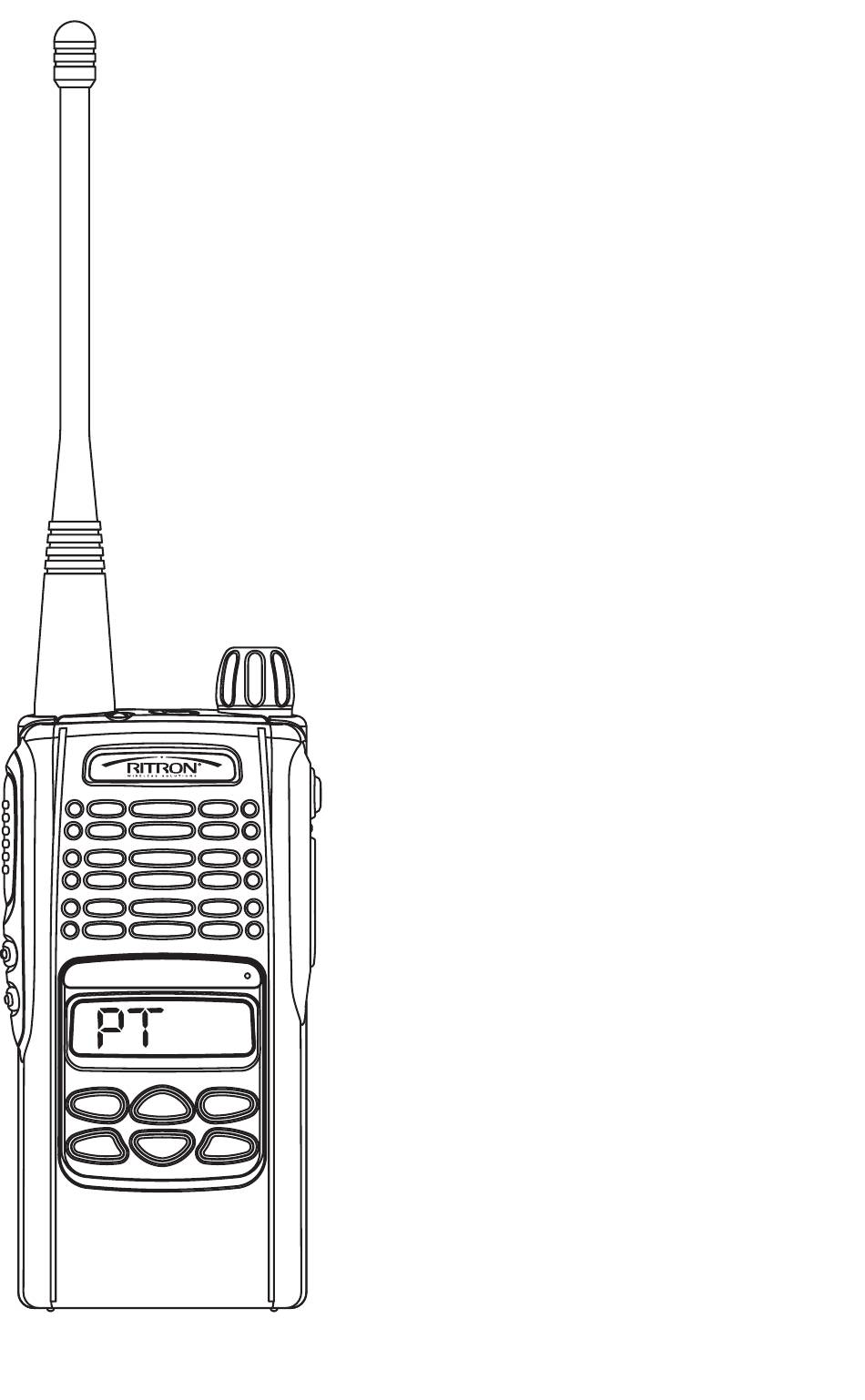

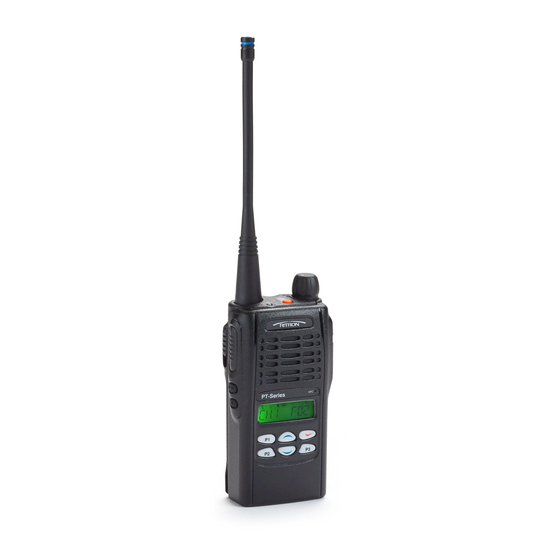

Professional Two-Way Radio
PT Series User Manual
Models: VHF PT-150 • UHF PT-450
•
Analog, Narrow Band Capable
•
Narrower Frequency Channel Steps
VHF: 2.5 / 12.5kHz
UHF: 2.5 / 6.25/ 12.5kHz
•
2-Tone Decode 300-3000Hz
•
Loud Audio Output - 1000mW
•
MIL STD 810F Temperature/Humidity/
Shock/Vibration
•
IP65 Certi ied Resistance to Water/Dust
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ritron PT Series
Summary of Contents for Ritron PT Series
- Page 1 Professional Two-Way Radio PT Series User Manual Models: VHF PT-150 • UHF PT-450 • Analog, Narrow Band Capable • Narrower Frequency Channel Steps VHF: 2.5 / 12.5kHz UHF: 2.5 / 6.25/ 12.5kHz • 2-Tone Decode 300-3000Hz • Loud Audio Output - 1000mW •...
-
Page 2: Table Of Contents
Battery Information......4 Operating Your Radio ......5 PT Radio Programmable Functions .....6-9 CTCSS / DCS TONE chart....9 FCC Regulations......9 RF Energy Exposure Information...10 Ritron Warranty Information ...11 Models Description PT-150 VHF, *136-174MHz 5 Watt or 1 Watt 255 Channel Capacity Li-Ion Battery... -
Page 3: Accessories
Installing Audio Accessories 1. Remove the 1 Torx fastener that secures the audio accessory dust cover to the radio. 2. Attach the Ritron audio accessory connector to the radio using the 2 captive screws in the audio accessory connector. 3. Do NOT over-tighten or use excessive... -
Page 4: Controls And Functions
Getting To Know Your PT Series Radio 1. Carefully align threaded end of the antenna with the mating connector located on the radio. 2. Carefully rotate the antenna clockwise until fully threaded into the mating connector. ON/Increase Volume – rotate clockwise OFF/Decrease Volume –... -
Page 5: Lcd Display Indicators
• Fully charge the battery before use to keep the optimum capacity and for safe operation. • The battery is designed for the PT Series charger only. Please do not charge the battery with any other brand charger. • Turn the radio off before charging. -
Page 6: Operating Your Radio
ON or OFF a specific feature, transmit a Call Tone or a variety of other features/functions. The following table indicates the Factory Default setting for each of the PFB’s on your radio. The default function can by changed via PC programming by your Ritron dealer. Factory PF Button... -
Page 7: Programmable Functions
Using The Menu/Enter Button Using the PT Series special PC programming software your dealer can enable or disable access to certain features from the radio MENU button. Listed below are instructions for accessing these feature/functions from the radio MENU button. - Page 8 Menu Assignable Accessible Group Select When programmed to a programmable function button, allows quick access to a group of up to 10 pre-programmed channels. Go To A Fixed (Pre-Set) Channel #, 1- 4 “Speed dial” for quickly accessing pre-programmed channel(s). Eliminates the need to scroll through channels.
- Page 9 Menu Assignable Accessible Password Prevents unauthorized use of the radio. At radio turn on user must enter 4 character password before radio will operate. Password is entered using the Up/Dwn scroll buttons and MENU button. Normal Scan ON/OFF Must be programmed by your dealer.
-
Page 10: Ctcss / Dcs Tone Chart
[Ack]nowledge Sending radio receives an [Ack]nowledge message confirming that the Selcall or Status Message has been received. CTCSS (Continuous Tone Coded Squelch System) Frequency Chart FCC REGULATIONS LICENSING The FCC requires the owners or PT Series Freq (Hz) Freq (Hz) Freq (Hz) Freq (Hz) radios to obtain a station license before using 67.0... -
Page 11: Rf Energy Exposure Information
RF exposures decrease with distance from the antenna. Antenna should be kept away from eyes. • When worn on the body, always place the radio in a Ritron approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of other manufacturers’... -
Page 12: Ritron Warranty Information
IMPORTANT: This warranty sets forth the full extent of RITRON’s express responsibilities regarding the covered products, and is given in lieu of all other express warranties. What RITRON has agreed to do above is your sole and exclusive remedy. No person is authorized to make any other warranty to you on behalf of RITRON.
