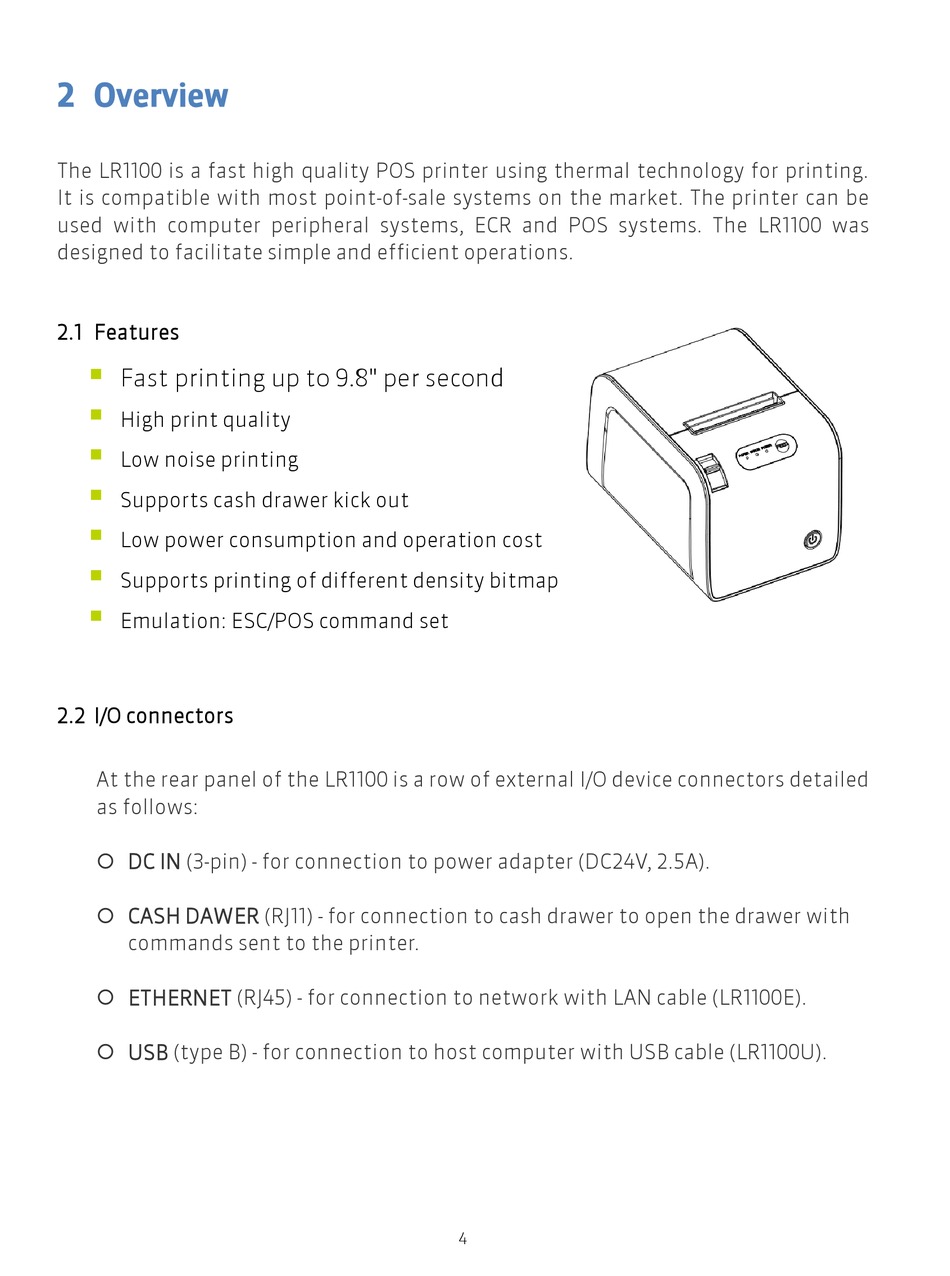

2 Overview

The LR1100 is a fast high quality POS printer using thermal technology for printing.
It is compatible with most point-of-sale systems on the market. The printer can be
used with computer peripheral systems, ECR and POS systems. The LR1100 was
designed to facilitate simple and efficient operations.

2.1 Features


Fast printing up to 9.8" per second

High print quality

Low noise printing

Supports cash drawer kick out

Low power consumption and operation cost

Supports printing of different density bitmap

Emulation: ESC/POS command set

2.2 I/O connectors

At the rear panel of the LR1100 is a row of external I/O device connectors detailed
as follows:
 DC IN (3-pin) - for connection to power adapter (DC24V, 2.5A).
 CASH DAWER (RJ11) - for connection to cash drawer to open the drawer with
commands sent to the printer.
 ETHERNET (RJ45) - for connection to network with LAN cable (LR1100E).
 USB (type B) - for connection to host computer with USB cable (LR1100U).
4
