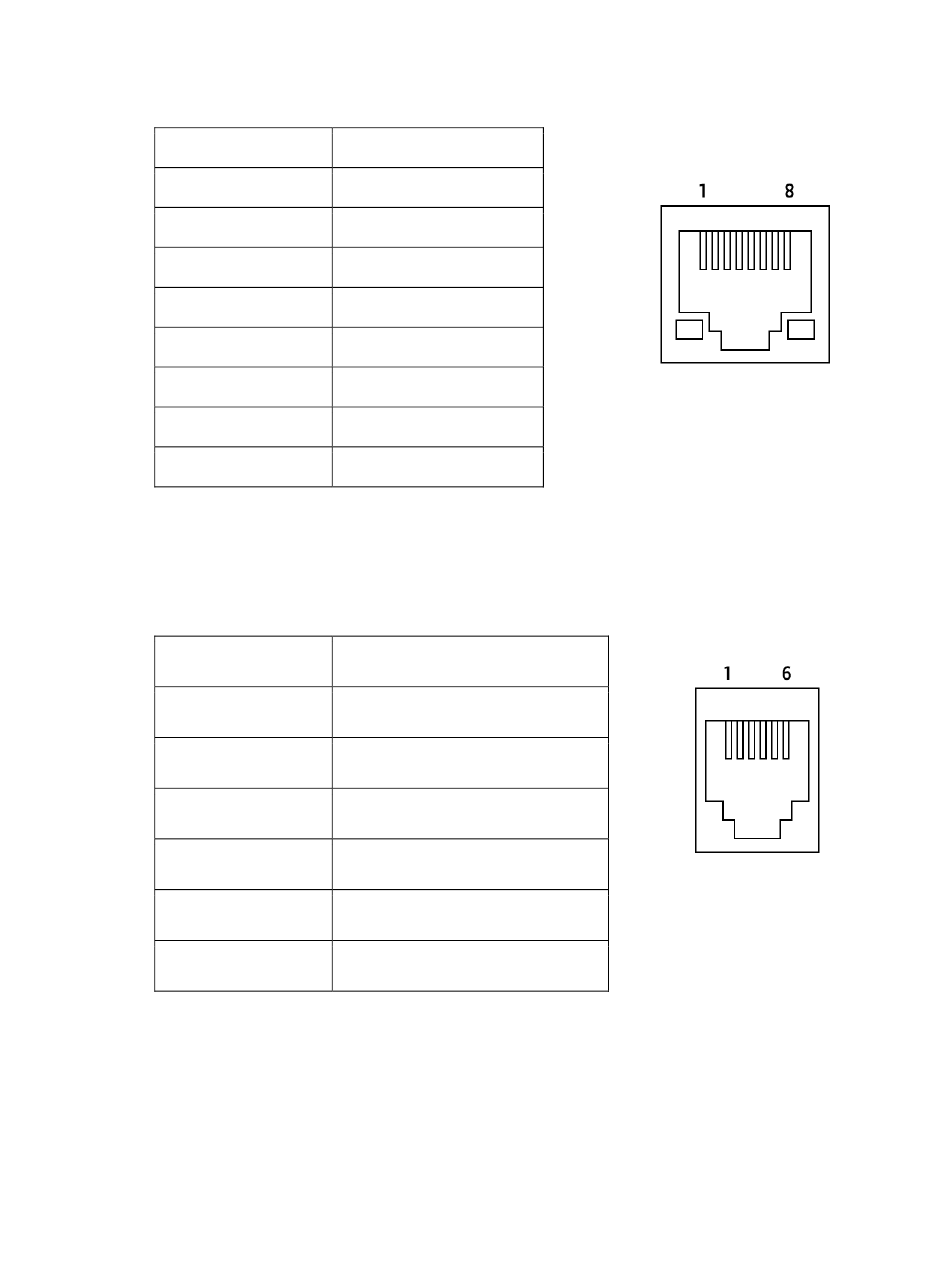

Ethernet Connector (RJ45)
Pin No.
1
2
3
4
5
6
7
8
Cash Drawer (RJ11)
Pin No.
1
2
3
4
5
6
Signal Name
TX+
TX-
RX+
NC
NC
RX-
NC
NC
Signal Name
GND
Drawer 1 kick-out drive
Drawer open/close signal
+24VDC
Drawer 2 kick-out drive
GND
