STEP 4
Attach Top Panel (D) to assembled unit using
Screw (1) as shown.
D
(1)x 4pcs
E
A
E
D
STEP 6
6.1 Attach Back Panel (F) to the back of
assembled unit using Power Pin (2).
6.2 Cover screw head with Sticker (3).
(2)x 18pcs
Recommended Maximum Weight
10
10
10
*Unit in Pound(lbs)
STEP 5
Attach Right Side Panel (B) to assembled unit
using Screw (1) as shown.
D
(1)x 6pcs
B
E
D
F
A
D
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
Approx. 30 minutes
Recomm. 2 Person
Tool Required
Tool Required
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
www.furinno.com
Assembly Instruction
Furinno

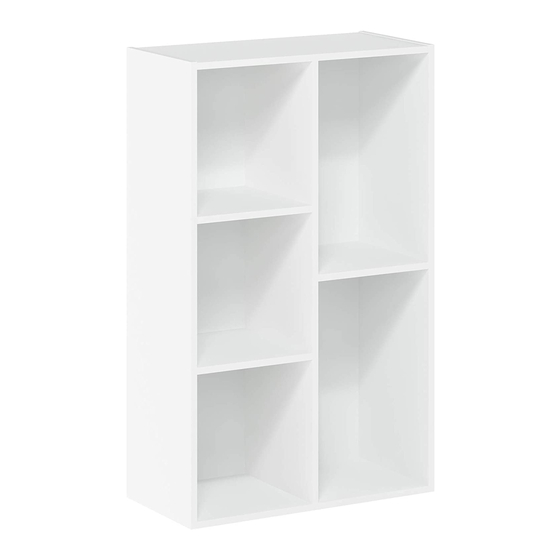

5-Cube Open Shelf
11069WH
MODEL
:
11069WH20180329
