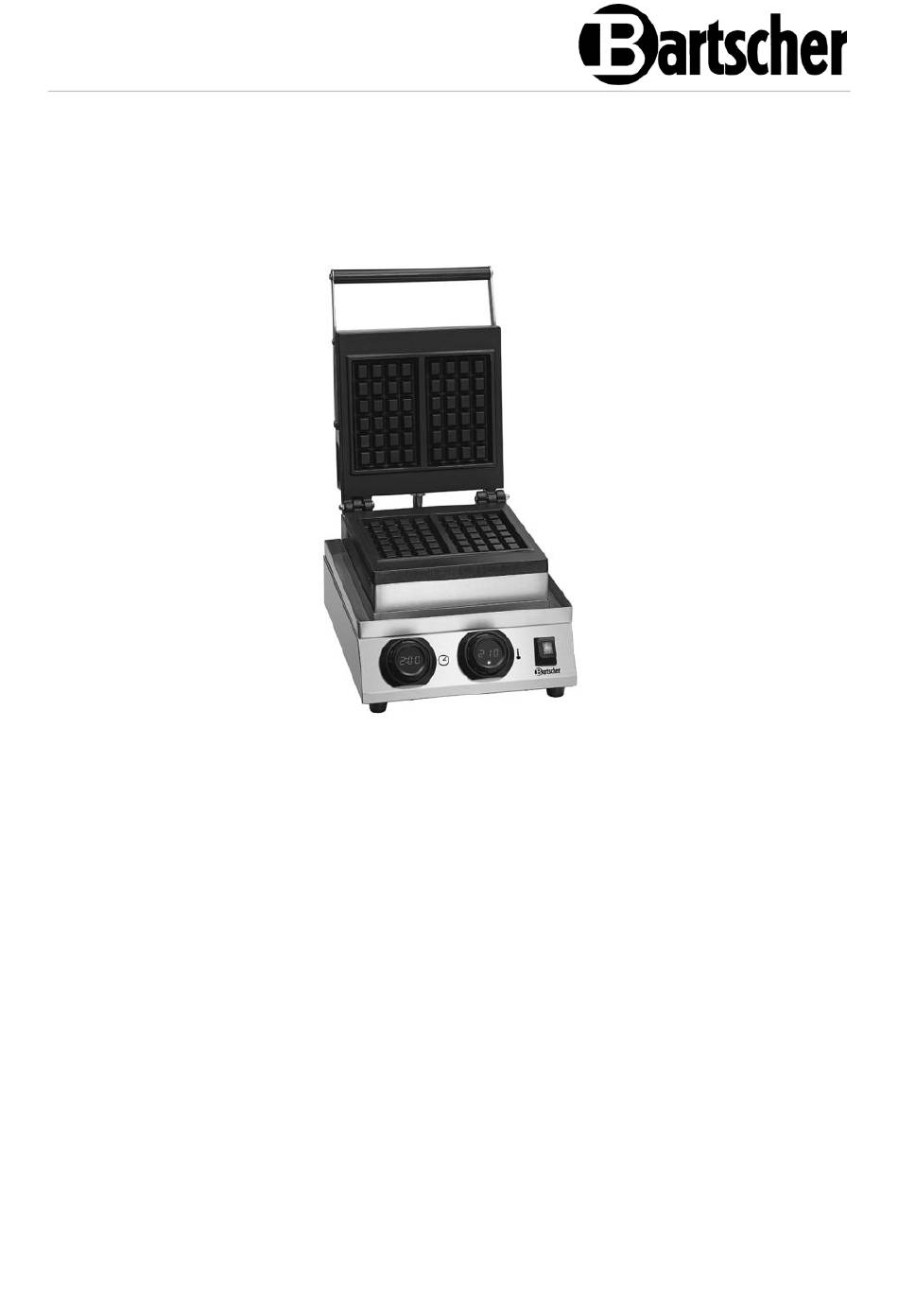

- Page 1 MDI 1HW-AL - 1BW-AL - Torti 400 - Lolly 400 - Donut 900 - Lolly 600 370270 - 370271 - 370272 370273 - 370274 - 370275...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-11-09...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltende n ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Baking waffles. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
• Indicator light: ON/OFF, heating up • The set includes: 1 drip tray We reserve the right to implement technical modifications. <Endergebnis> Name: Waffle maker MDI 1HW-AL 370270 Art. No.: Material: Stainless steel Baking trays material: Aluminium, Coated Number of baking units:... - Page 12 Technical Data Name: Waffle maker MDI 1BW-AL 370271 Art. No.: Material: Stainless steel Baking trays material: Aluminium, Coated Number of baking units: Waffle shape: Brussels waffle Waffle size, in mm: 160 x 100 Waffle height, in mm: Temperature range, min.–max., in °C: 50 - 300 Connected load: 1,8 kW / 230 V / 50-60 Hz...
- Page 13 Technical Data Name: Waffle maker MDI Lolly 400 370273 Art. No.: Material: Stainless steel Baking trays material: Aluminium, Coated Number of baking units: Waffle shape: Lollipop (Christmas tree), triangular Baking unit version: 4 Lollipop (Christmas tree), triangular Waffle size (W x D x H), in mm: 52 x 20 x 220 Temperature range, min.–max., in °C: 50 - 300...
- Page 14 Technical Data Name: Waffle maker MDI Lolly 600 370275 Art. No.: Material: Stainless steel Baking trays material: Aluminium, Coated Number of baking units: Waffle shape: Lollipop, round Baking unit version: 6 Lollipops, round Waffle size (W x D x H), in mm: 40 x 30 x 140 Temperature range, min.–max., in °C: 50 - 300...
- Page 15 Technical Data Tart-shaped 370272 Lollipop (Christmas tree), triangular 370273 Doughnut 370274 Lollipop, round 370275 370270 13 / 26...
-
Page 16: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Grip 2. Top baking tray 3. Bottom baking tray 4. Housing 5. ON/OFF switch with integrated 6. Push rotary temperature control operation indicator light (green) knob 7. Push rotary time control knob 8. -
Page 17: Functions Of The Appliance
Installation and operation Functions of the Appliance Robust design, high power, and simple and intuitive control with a knob, accompanied by digital display, timer and audible signal provide for ideal conditions for baking perfect waffles. When the baking trays are heated up to the required temperature, you may, depending on the version of the appliance, bake waffles of various shapes (heart-shaped waffles, Brussels waffles, tart-shaped waffles, lollipops, doughnuts). -
Page 18: Operation
Installation and operation • The appliance should be placed on surfaces that are: – even, with sufficient bearing capacity, resistant to water, dry and resistant to high temperatures; – sufficiently large, and thus enabling usage of the appliance with no problems;... - Page 19 Installation and operation 4. Moisten the baking trays with food oil three or four times. Settings The waffle maker is controlled with two push rotary control knobs: – Push rotary time control knob – Push rotary temperature control knob The push rotary control knobs are integrated with digital displays that allow reading the most recently set time and temperature.
- Page 20 Installation and operation The red indicator light in the push rotary time control knob blinks. When the time elapses, the acoustic signal is generated. To switch off the signal, press the push rotary time control knob shortly. NOTE! When the set time elapses, the appliance does not switch to standby mode —...
- Page 21 Installation and operation Baking Waffles WARNING! Risk of burns! Touching hot baked products with bare fingers or hands may cause burns. Hot baked products should be removed only with the use of wooden or plastic paddle, or, if possible, tongs resistant to high temperature. 1.
- Page 22 Installation and operation Indications and tips • Before you start preparing the batter, its ingredients should be kept for some time in room temperature. • The batter will be more fluffy if you sieve the flour first. • Separate egg yolks from egg whites and add the yolks to the batter first. Whip the whites to compact foam and stir the foam gently at the end, without whipping it.
-
Page 23: Cleaning
Cleaning 1. Mix the flour, baking powder (or baking soda), salt, sugar and vanilla sugar in a bowl, then make a small hole in the middle of the mixture. 2. Melt the butter and leave it to cool down. 3. Mix the butter with eggs. 4. - Page 24 Cleaning 7. Clean the housing with a soft cloth and mild cleaning agent. 8. Wipe all washed surfaces with a clean, damp cloth. 9. Then dry the appliance thoroughly. 22 / 26 370270...
-
Page 25: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution The appliance is Abnormal or interrupted Check the power supply power supply. -
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
