„Deluxe"
370164
Original-Gebrauchsanleitung
V2/0717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Deluxe and is the answer not in the manual?

Questions and answers

Related Manuals for Bartscher Deluxe

Summary of Contents for Bartscher Deluxe

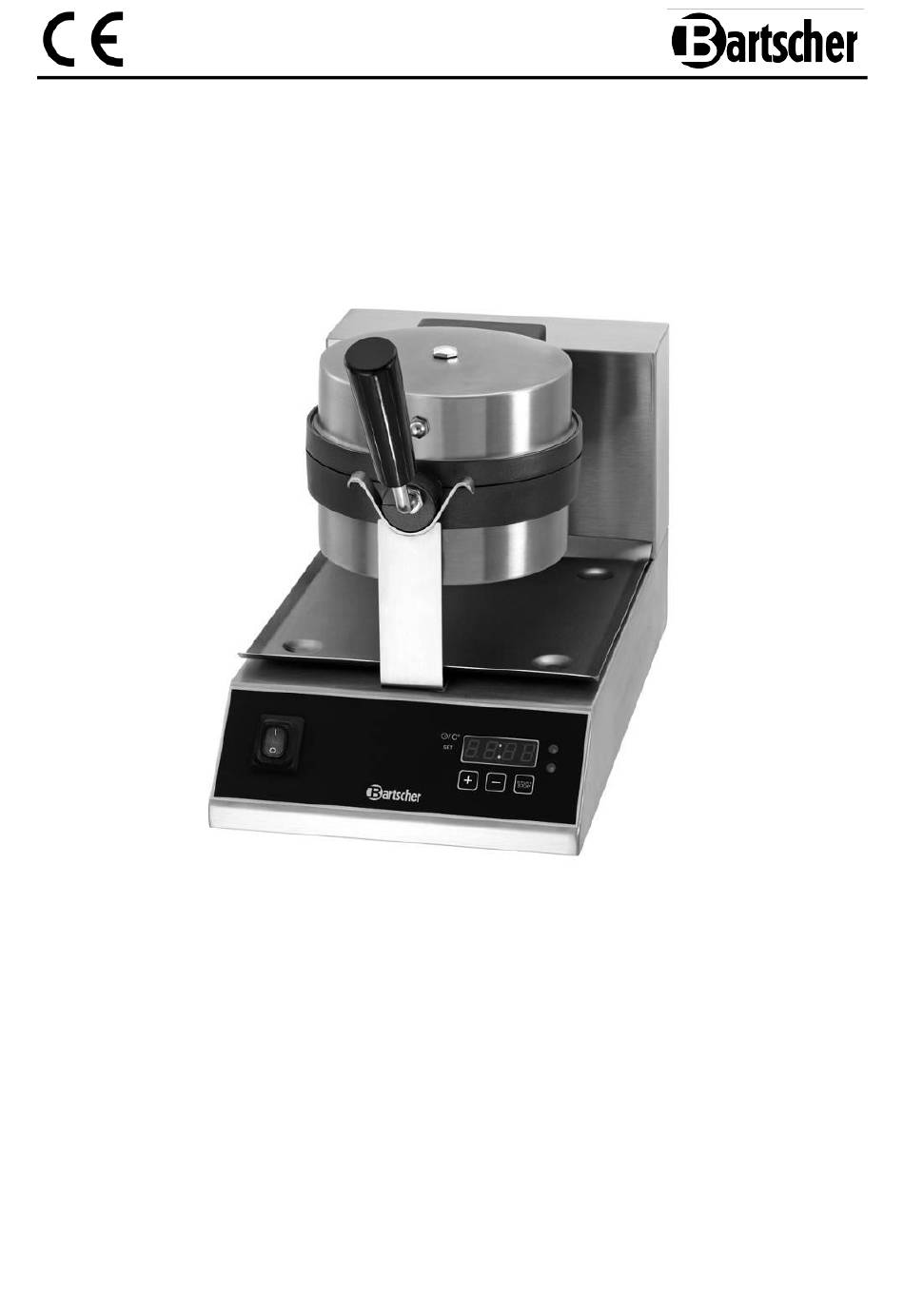

  • Page 1 „Deluxe“ 370164 Original-Gebrauchsanleitung V2/0717...

  • Page 2: Table Of Contents

    4.2 Technical specification ..................31 5. Installation and operation ..................32 5.1 Installation ......................32 5.2 Operation ......................33 6. Cleaning ........................39 7. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!  Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
  • Page 6  Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
  • Page 7  The device remains hot also for some time after turning off, so before cleaning or moving the device wait until it cools down.  Never move the device during work. WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: ...

  • Page 8: Proper Use

    1.3 Proper use CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. The operational safety of the device is assured only in case of proper use, according to the operation manual.

  • Page 9: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 10: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 11: Technical Data

    4. Technical data 4.1 Overview of parts Housing Cover Base Drop collecting tray Control panel Rotation handle Baking plate mount Top baking plate Suspension Bottom baking plate - 30 -...

  • Page 12: Technical Specification

    Green control light Red control light START / STOP button Decrease value Increase value On/Off switch 4.2 Technical specification Name Waffle Maker "Deluxe" 370164 Code-No.: Baking plates: Die-cast aluminum, coated Construction Housing: stainless steel Temperature range: 125 °C - 230 °C Waffle size: Ø...

  • Page 13: Installation And Operation

    5. Installation and operation 5.1 Installation Positioning  Unpack the device and remove all packing material. CAUTION! Never remove the rating plate and any warning signs from the device.  Place the device on top of an even, stable, dry, and water-resistant surface which supports the weight of the device and is not heat sensitive.

  • Page 14: Operation

    5.2 Operation Before first use  Before first use, clean the device according to the instructions in 6. "Cleaning".  Before first use, heat the device up without dough ("Activating and heating the device"). Leftover production materials can create smoke when heated; this is not a danger to the user, nor a sign of any defect.
  • Page 15 HOT SURFACE! Burn hazard! When in use, the device's baking plates and external surfaces can get very hot. To avoid burns, do not touch these surfaces and grasp the device only using the handle, and use only control elements (ON / OFF switch, buttons).
  • Page 16  The display will show a countdown of the set time. When "0" is reached, an alarm will sound. Press START / STOP to finish the program. The alarm will stop sounding, and the display will again show the previously set time. NOTE! The last time and temperature values will remain set until new ones are entered.
  • Page 17 ▶  Close the cover, hold the handle and rotate 180° clockwise (handle to the bottom). This will lock the cover and prevent it from opening.  Rotation ensures the waffle bakes evenly across both baking plates, giving best results. NOTE! Close the device as quickly as possible.
  • Page 18  Hold the handle, open the cover and carefully remove the finished waffle. Use a wooden or plastic spatula to remove waffles.  Never use sharp, metallic or spiked objects that can damage the baking plates.  Place the finished waffle aside to cool. ...
  • Page 19  Finished, cooled waffles can be frozen. To prevent sticking, place baking paper between them, then freeze in bags or appropriate containers.  Remove the waffles from the freezer and leave to defrost at room temperature. Heat them before serving in an oven at 100 °C. Place them in a container with a cover or wrap in aluminum foil to prevent them from drying out.

  • Page 20: Cleaning

    6. Cleaning WARNING Disconnect the unit from the power supply (unplug!) before cleaning. Wait for the device to cool down. Never clean the device with use of pressurized water jet. Protect the device from the water penetration. Cleaning the device o Clean the device after every use.

  • Page 21: Waste Disposal

    CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
