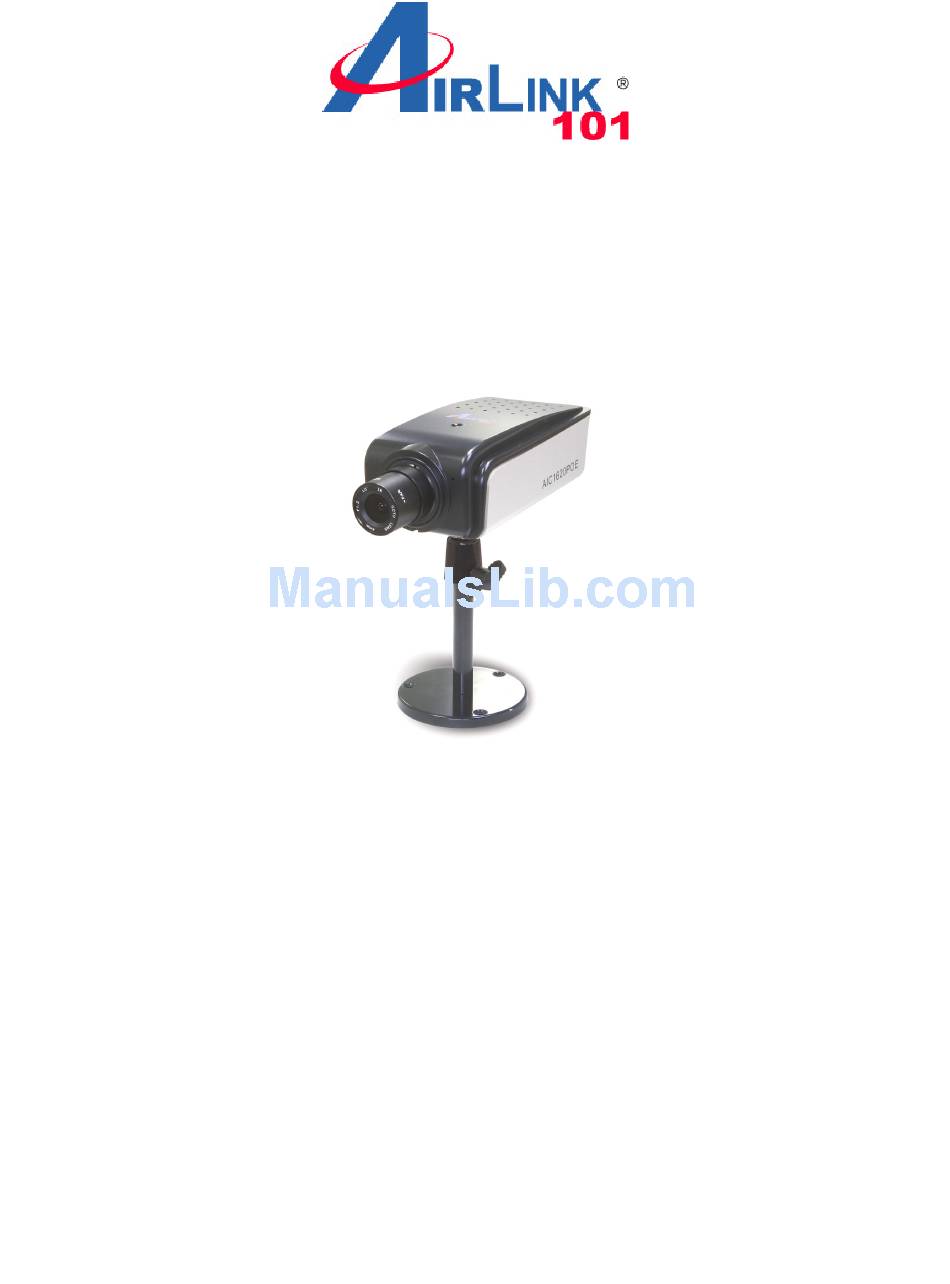

- Page 1 Quick Installation Guide SkyIPCam1620 PoE MPEG4 3GPP Network Camera Model # AIC1620POE Ver. 1A...
- Page 2 Package Contents PoE MPEG4 3GPP Network Camera • AC Power Adapter • Wall Mount Kit • GPIO & RS485 Adapter • Ethernet Cable (RJ-45 type) • Setup CD • Quick Installation Guide • System Requirement Accessing the Camera using Web Browser - Supported Browsers: Microsoft®...
-
Page 3: Getting To Know Your Camera

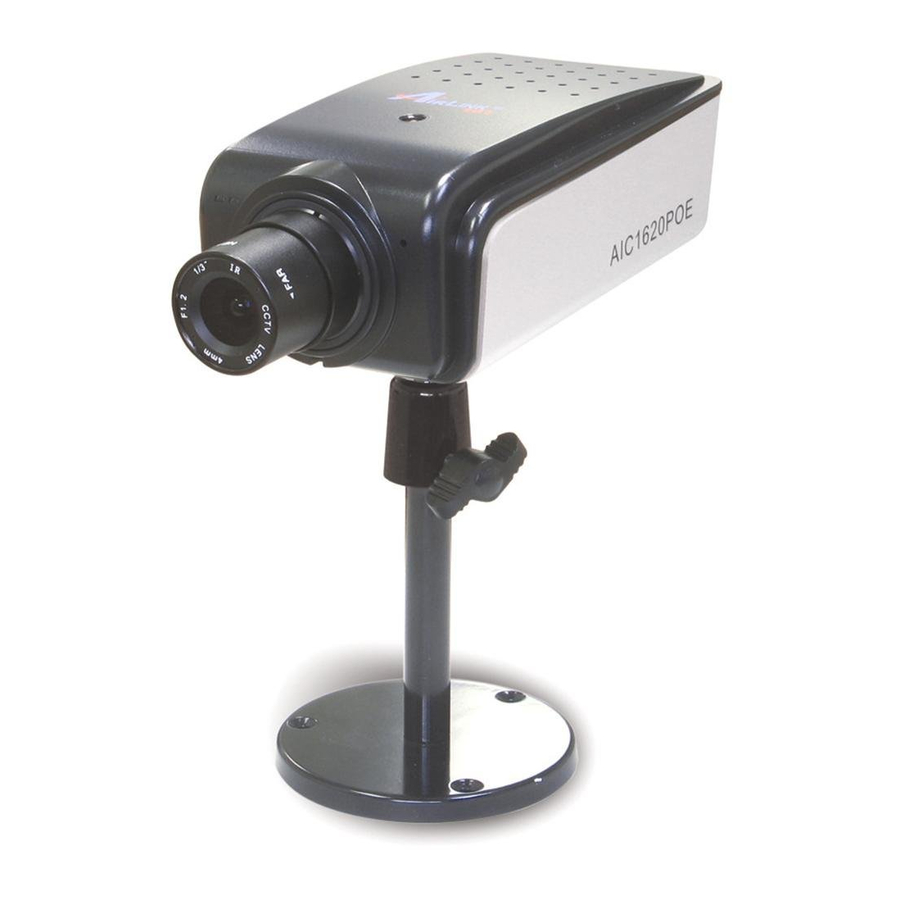

Section 1 Getting to Know Your Camera Front and Top View Screw Hole* is used to attach the camera stand onto the camera by screwing the screw head of the camera stand into the screw hole of the camera. LED Indicators: Power (left, steady amber light) indicates the camera is powered Link (right, flashing green light) -
Page 4: Rear View
Rear View GPIO and RS485 is used to connect the external devices. Ethernet Cable Connector* connects the network cable, which supports the NWay protocol so that the camera can detect the network speed automatically. Audio I/O Connectors: Audio Out connects an external active speaker. -
Page 5: Hardware Installation
Section 2 Hardware Installation Step 2.1 Assemble and attach the provided wall mount kit to the camera. Step 2.2 Connect one end of a network cable to the IP Camera and connect the other end to one of the LAN ports on your router or switch. Step 2.3 If your router or switch does not support Power over Ethernet function, you will need to provide power to the camera by connecting the... -
Page 6: Installing Skyipcam Utility
Section 3 Installing SkyIPCam Utility Step 3.1 Insert the provided CD into your computer’s CD ROM drive. Step 3.2 Click on Install Utility and Software when the autorun menu pops up on the screen. - Page 7 Note: If you do not see the autorun menu pops up on the screen, please go to your CD-ROM drive > UltraView folder > run “Setup.exe”. Step 3.3 Click Install to install the utility. Step 3.4 Click Finish when installation finishes.
-
Page 8: Configuring The Camera
Section 4 Configuring the Camera Step 4.1 Open SkyIPCam Utility by double clicking on its icon on your desktop. Step 4.2 Click on Search to find the camera on your network. Select the Camera you wish to configure and click on Change IP. Note If the Camera you wish to configure does not show up in the utility, make sure the camera is properly connected to the same local network as... - Page 9 Step 4.3 Please configure a unique static IP address for your camera; if you are not sure how to do it, you can select DHCP to let your router dynamically assign an IP to your camera. Enter “admin” for both ID and password, and click Change. Step 4.4 Select the Camera you wish to configure and click on Link.
- Page 10 Step 4.5 When you are prompted for the username and password, enter “admin” for both User name and Password, and click OK. Step 4.6 The camera viewing window will appear. Click on Setup, then click on Smart Wizard.
- Page 11 Step 4.7 Enter a name for your camera and a location (i.e. RoomA01). Create a password and enter to Admin Password and Confirm Password. This will change the admin password of the camera. It is recommended to modify the admin’s password to protect your privacy. Click Next. Step 4.8 If you have assigned a Static IP to the camera at Step 4.3, please enter the Primary/Secondary DNS addresses here provided by your ISP.
- Page 12 Step 4.9 If you would like to set up email alerts that you can receive in the future, enter your email information here. You can get this information from your Internet Service Provider. You can also set this up at a later time. Click Next.
-
Page 13: Viewing Image
Section 5 Viewing Image Method A > Access Camera from SkyIPCam Utility Step 5.1A Open Airlink101 SkyIPCam Utility, select the camera you wish to connect to and click on Link button. Go to Step 5.3. Method B > Access Camera from Web Browser Step 5.1B If you assigned a static IP address for your camera (at Step 4.3), you may open the Web Browser on your computer. - Page 14 Step 5.3 Enter username and password, then click OK. The default username and password are both “admin” if you did not make any change to it at Step 4.7. Step 5.4 Internet Explorer User: view image from the web configuration page, you will be prompted to install the ActiveX Control.
- Page 15 Step 5.5 Click on Run, then you will be able to view the image. Note If you are using Mozilla Firefox or Safari and you are not able to view any image, please make sure you have Java and Quick Time add-ons installed.
-
Page 16: Technical Support
All products and trademarks are the property of their respective owners. Copyright ©2011 Airlink101® ** Monitoring multiple cameras simultaneously demands high performance computer system. *** AIC1620POE supports most of the 3G devices, but compatibility with every 3G device is not guaranteed.
