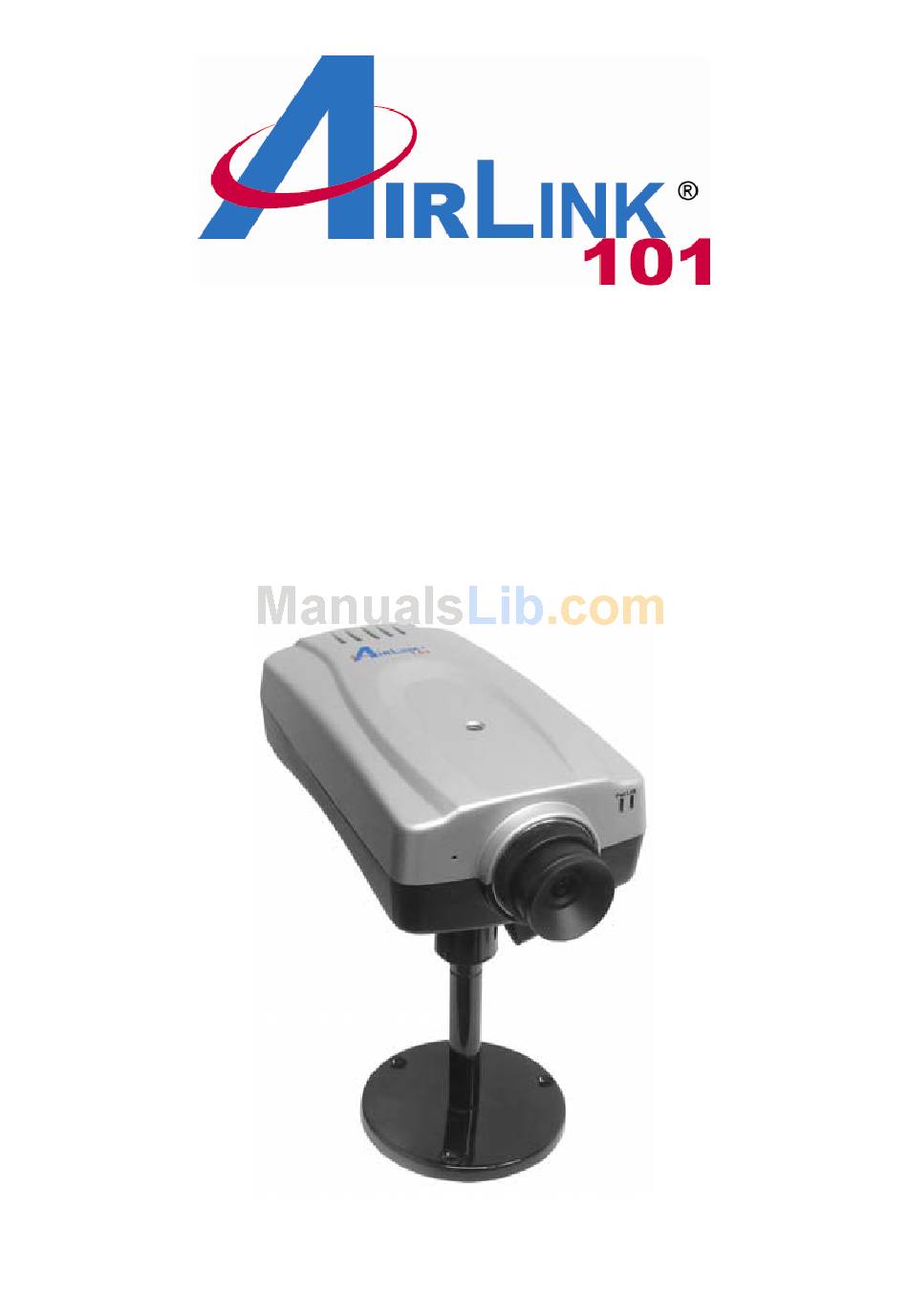

Page 1: Quick Installation Guide
Quick Installation Guide Power Over Ethernet Network Camera Model # AICP310 Ver. 1A... -
Page 2: Getting Started
Section 1 This Quick Installation Guide only provides basic instructions. For detailed information on using this product and the software IPView Pro, please refer to the User’s Manual on the supplied CD. Step 1 Connect one end of a network cable to the IP Camera and connect the other end to one of the LAN ports on your router or switch. - Page 3 Note: If the autorun screen does not appear automatically, go to Start, Run, type D:\Wizard\Setup.exe (where D is the letter of your CD drive) and click OK. Step 3 Click Next.
- Page 4 Step 4 Click Yes to accept the License Agreement. Step 5 Click Next to accept the default Destination Folder.
-
Page 5: Using The Setup Wizard
Step 6 Click Finish to complete the installation. Section 3 Using the Setup Wizard Step 1 Go to Start > (All) Programs > AirLink101 IP Camera Setup Wizard > AirLink101 IP Camera Setup Wizard. - Page 6 Step 2 Select the IP Camera you want to configure from the list and click on the Wizard button.
- Page 7 Step 3 If the Camera’s default IP address is on a different subnet, the following message will appear. Click Yes to continue. If you do not receive this message, skip to Step Step 4 Enter admin for both the Admin ID and Password and click OK. Step 5 The Wizard will automatically generate an IP address for the camera, if this address is not in use by any other device in your local network, click OK.
- Page 8 Step 6 Enter admin for both the Admin ID and Password field and click Next. Optionally, you can change the password by checking on the Change box and entering the new password.
- Page 9 Step 7 If you need to change the Camera’s IP address because another network device is already using the same address, you can assign a new address here and click Next. Step 8 Verify that all the fields are correct and click Restart to save the settings and reboot the camera.
-
Page 10: Viewing Images
Section 4 Step 1 At the Setup Wizard, select the desired camera from the list and click on the Web Config button. Step 2 Enter the username and password for the network camera. The default username and password are both “admin”. Viewing Images... - Page 11 Step 3 The web based viewing page will appear. You can view live video by selecting either the ActiveX Mode (Internet Explorer only) or the Java Mode (Internet Explorer and Netscape).
- Page 12 Step 4 If you select ActiveX Mode, you may be prompt to install the ActiveX Control. Click on the yellow bar to on the top of the screen and click on Install ActiveX Control. Step 5 Click on Install.
- Page 13 Step 6 You can focus the camera by turning the camera’s lens clockwise or counter-clockwise. Note: ActiveX and/or Java Applet must be installed and enabled on your Web Browser (Internet Explorer or Netscape) before you can view the live videos. For more information please refer to the User’s Manual in the provided CD.
-
Page 14: Technical Support
Toll Free: 1-888-746-3238 Website: www.airlink101.com *Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2007 AirLink101®...
