Rosewill AC600 Manual

Wireless dual band pci-express adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

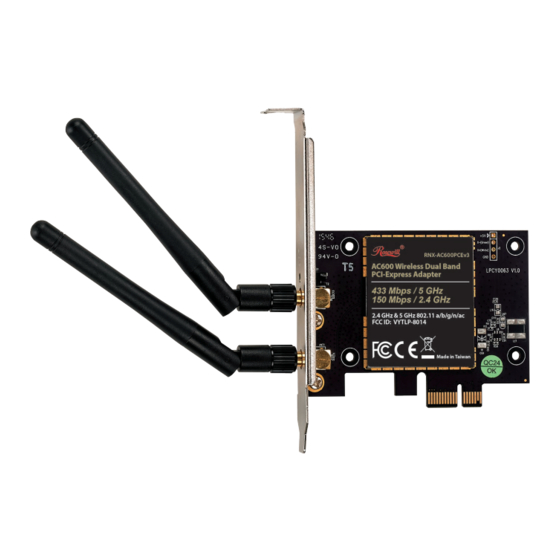

AC600 Wireless Dual Band PCI-Express Adapter
RNX-AC600PCEv3
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosewill AC600

Summary of Contents for Rosewill AC600

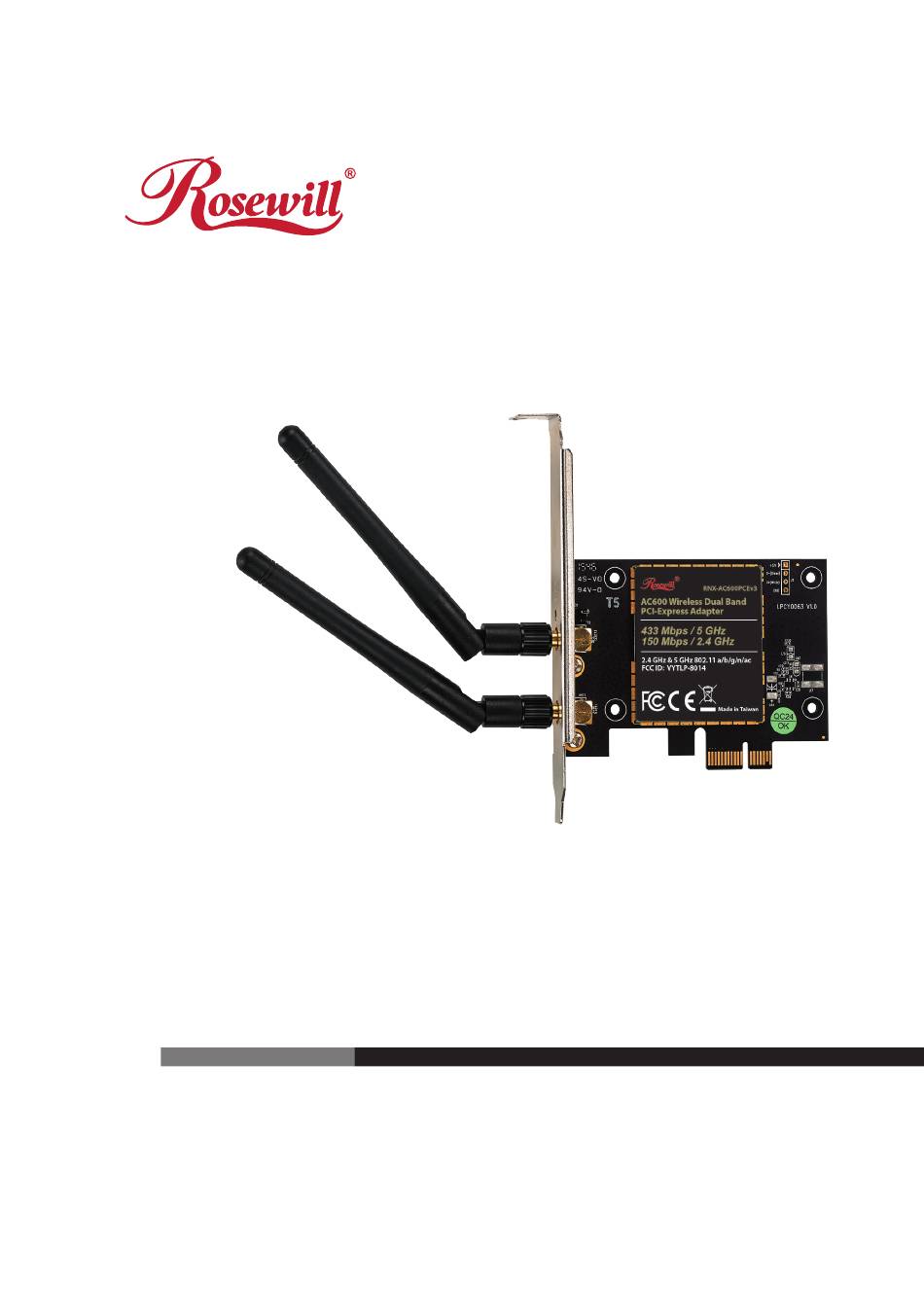

  • Page 1 AC600 Wireless Dual Band PCI-Express Adapter RNX-AC600PCEv3 User Manual...
  • Page 2 No part of the specifications may be reproduced in any form by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill, Inc. Copyright © 2018 Rosewill, Inc. All rights reserved.
  • Page 3 This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction...
  • Page 4 Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents …………....…………...…….…......Package Contents …………....…………...…….…......SECTION 1: Product Overview …....………..…….…....1.1 Introduction …………………………………….…......... 1.2 Features ………..…..............1.3 LED Status ……………………………………........SECTION 2: Installation ……………...……..........2.1 Hardware Installaton ……………………....…......2.2 Software Installation ……………............SECTION 3: Connect to a Wireless Network …………......Connect Using Windows Built-In Wireless Utility ........

  • Page 6: Package Contents

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 Package Contents • 1 x RNX-AC600PCEv3 AC600 Wireless Dual Band PCI-Express Adapter • 2 x 3 dBi Detachable Antenna • 1 x Low-Profile Bracket • 1 x Quick Installation Guide • 1 x Resource CD Make sure that the above items are within the package.

  • Page 7: Section 1: Product Overview

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 SECTION 1: Product Overview 1.1 Introduction The adapter is an 802.11ac client device designed to deliver a high-speed wireless performance for your desktop. With a faster wireless connection, you can get a better internet experience, such as downloading, gaming, and video streaming.

  • Page 8: Section 2: Installation

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 SECTION 2: Installation Please install the PCI-Express adapter into your computer before installing the driver from the Resource CD. 2.1 Hardware Installation 1. Turn off your computer and unplug the power cord from the computer. 2.

  • Page 9: Software Installation

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 2.2 Software Installation The adapter’s Setup Wizard will guide you through the installation procedures for Windows XP, Windows 7, Windows 8, Windows 8.1 and Windows 10. The procedures in different systems are similar, therefore we have presented the procedures in Windows 10 as an example. Important Notice: In order to install the driver successfully, please uninstall other Wi-Fi drivers before installing the RNX-AC600PCEv3 driver.
  • Page 10 Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 Figure 2-4 3. After the Wireless LAN driver is installed successfully, you must restart your computer. Select "Yes" and click "Finish" (Figure 2-5). Figure 2-5 4. After restarting the computer, the (Wi-Fi icon) will appear at the right button side in your system tray.

  • Page 11: Section 3: Connect To A Wireless Network

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 SECTION 3: Connect to a Wireless Network With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network using the following method. Connect Using Windows Built-In Wireless Utility Windows users may use the built-in wireless utility to connect to a wireless network.

  • Page 12: In Windows 7

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 3. The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the "Connect" button. 4. If the network is security-enabled, you will be prompted to enter the key as shown below (Figure 3-3).

  • Page 13: In Windows 8.1

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 3.3 In Windows 8.1 Windows 8.1 users may use the built-in wireless utility. Follow the steps below: 1. Click the icon at the bottom of your screen, and a network list will appear at the right side of your screen.

  • Page 14: In Windows 10

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 3. When "Connected" appears behind the SSID (Figure 3-6), you have successfully connected to the target network. Figure 3-6 3.4 In Windows 10 Windows 10 users may use the built-in wireless utility. Follow the steps below: 1.
  • Page 15 Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 2. If the network is unencrypted, you will directly connect to it. If the network is encrypted, enter the password (network security key) and then click "Next" to continue (Figure 3-8). Figure 3-8 3.

  • Page 16: Appendix A: Specifications

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 Appendix A: Specifications Normal Interface 1 x PCI-Express Standards IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ac Operating System Windows XP/7/8/8.1/10; Windows Server 2012 11b: 1/2/5.5/11 Mbps 11g: 6/9/12/18/24/36/48/54 Mbps Radio Data Rate 11n: 150 Mbps (2.4 GHz) 11ac: 433 Mbps (5 GHz) 11b: CCK 11g: CCK/OFDM/BPSK/QPSK/16-QAM/64-QAM...

  • Page 17: Appendix B: Glossary

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 Appendix B: Glossary • 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4 GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
  • Page 18 Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 • SSID (Service Set Identification) - A thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card.

  • Page 19: Faq

    Wireless Dual Band PCI-Express Adapter User Manaul RNX-AC600PCEv3 This section provides solutions to problems that may occur during the installation and operation of the Wireless PCI-Express Wi-Fi Adapter. 1. I cannot communicate with the other computers linked via Ethernet in the Infrastructure configuration.
  • Page 20 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a quality Rosewill product. Please register your product at www.rosewill.com for complete warranty information and support for your product. RNX-AC600PCEv3_A...

This manual is also suitable for:

Rnx-ac600pcev3
