Rosewill RNWD-N1501UB Quick Installation Manual

Wireless N Adapter RNWD-N1501UB/RNWD-N1502UBE

1. Overview

Thank you for choosing Rosewill's 802.11n Wireless USB adapter –
RWND-N1501UB / RWND-N1502UBE. This chapter is to introduce you
more about this Wireless Adapter.

1.1 Package Content

Before getting started, please verify that your package includes the
following items:

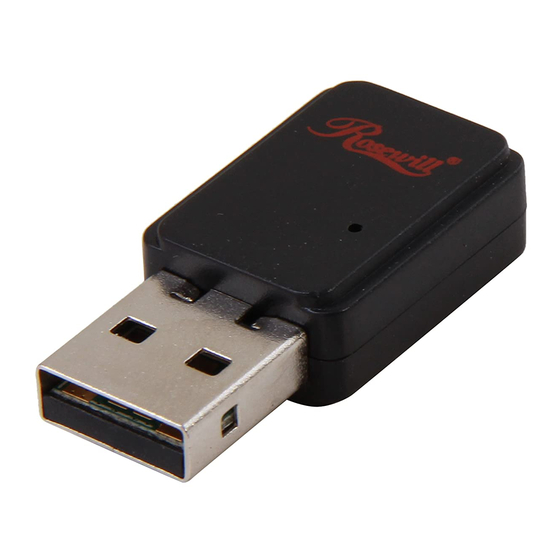

1.Rosewill RWND-N1501UB / RWND-N1502UBE 802.11n
Wireless USB Adapter x 1
2.Resource CD x 1, including:
• Wireless Utility and Driver
• User Manual
• Quick Installation Guide
Note:
Make sure that the package contains the above items. If any of the listed
items are damaged or missing, please contact with your distributor.

1.2 Product Specification

Chipset
Standard
Bus Type
Frequency Band
Data Rate
Output Power
Wireless N Adapter
RNWD-N1501UB/RNWD-N1502UBE
Security
Quick Installation Guide
OS support
Temperature
Humidity
Quick Installation Guide Wireless N Adapter RNWD-N1501UB/RNWD-N1502UBE

1.3 System Requirement

2. Installation Guide

2.1 Hardware Installation

Ralink RT5370
IEEE 802.11b/g/n
USB 2.0/1.1 Interface
2.4GHz ISM (Industrial Scientific Medical Band)
11b: 1/2/5.5/11Mbps;
11g: 6/9/12/24/36/48/54Mbps
11n: up to 150Mbps
11n:14dBm+/-1.5dBm
11g:14dBm+/-1.5dBm
11b:16dBm+/-1.5dBm
WEP 64/128, WPA, WPA-PSK, WPA2,
WPA2-PSK, TKIP/AES
Windows 2K/XP/Vista/7 (32/64bit); Linux Kernel 2.4
and 2.6 series; Mac OS 10.5/10.6/10.7
Operating: 32 ~ 104°F (0~40°C);
Storage: -4 ~ 167°F (-20~75°C)
Operating: 10% ~ 90% (Non-Condensing);
Storage: 5% ~ 95% (Non-Condensing)
1
Quick Installation Guide
You must have at least the following
• A laptop computer/desktop PC with an available USB port
• At least a 300MHz processor and 32MB of memory
• Windows OS for Win2000, XP, Vista, 7; Mac OS X 10.5~10.6;
or Linux OS under Kernel 2.4 and 2.6 series
• A CD-ROM Drive
• USB controller properly installed and working in the computer
• A 802.11n 802.11g or 802.11b Wireless (and ) Access Point/Router
(for infrastructure Mode) or another 802.11n 802.11g or 802.11b
wireless (and ) adapter (for Ad-Hoc; Peer-to-Peer networking mode).
• Please first connect the RWND-N1501UB / RWND-N1502UBE with
the USB cable, then insert into the USB slot of your PC or NB.
• If the following window popup, please click Cancel or Close:
▪ Under Win XP
Wireless N Adapter RNWD-N1501UB/RNWD-N1502UBE
▪ Under Windows Vista/Win7

2.2 Installing Drivers and/or Utility

► Please insert the CD into your CD-rom drive
►
Click on the Driver for
Windows OS in the CD
to install driver and
utility for Windows
2
