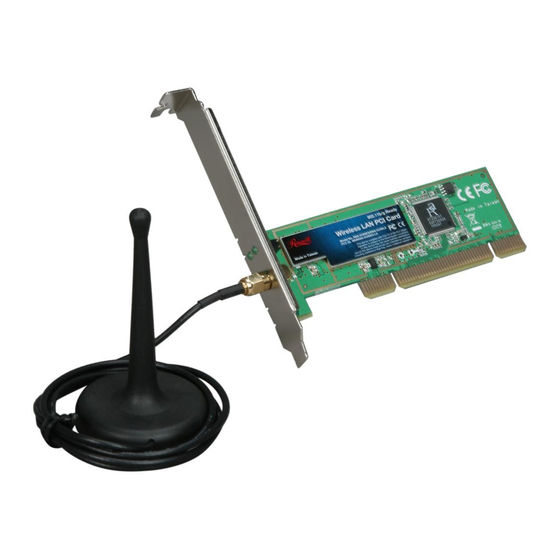

Wireless Adapter
RNX-G300EX/LX
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RNX-G300EXLX and is the answer not in the manual?

Questions and answers

Related Manuals for Rosewill RNX-G300EXLX

Summary of Contents for Rosewill RNX-G300EXLX

  • Page 1 Wireless Adapter RNX-G300EX/LX User Manual...

  • Page 2: Table Of Contents

    Wireless Adapter RNX-G300EX/LX CONTENT Introduction ... - 2 - Specifications... - 3 - Installation ... - 4 - Hardware Installation... - 4 - Software Installation (for all windows OS) ... - 5 - Software Uninstall ... - 9 - Ralink Wireless Utility ( RaUI ) or Windows Zero Configuration ( WZC ) ... - 10 - Use WZC to configure wireless NIC...

  • Page 3: Introduction

    Wireless Adapter RNX-G300EX/LX INTRODUCTION Thank you for purchasing Wireless LAN PCI Card. Wireless card is a perfect combination product of performance and cost-effectiveness. It is sincerely hoped that you can enjoy the wireless world through this solidly profiled wireless card. It provides a full solution of the IEEE 802.11b/g protocols, this solution passed the WiFi tests that are compatible with all the wireless products with WiFi logo.

  • Page 4: Specifications

    Wireless Adapter RNX-G300EX/LX SPECIFICATIONS Interface Standard 802.11b, 802.11g OS support 98SE, WinME, Win2000, WinXP32, WinXP64, Vista32, Vista64 Data rate 1,2,5.5,11,6,8,12,18,24,36,48,54Mbps, depends on the wireless mode Frequency band BG:2.4 ~ 2.497 GHz Operation Channel 1~11(BG) Coverage Area Indoors: 100m (BG) Outdoors: 400m (BG) Compatibility Fully compatible with IEEE 802.11 b/g devices Operation Mode...

  • Page 5: Installation

    Wireless Adapter RNX-G300EX/LX User Manual INSTALLATION HARDWARE INSTALLATION 1. Turn off your PC and remove the cover. 2. Insert the RNX-G300EX/ LX to an available PCI slot firmly. 3. Secure this card to the rear of the computer chassis 4. Put back the cover. 4.

  • Page 6: Software Installation (For All Windows Os)

    Wireless Adapter RNX-G300EX/LX SOFTWARE INSTALLATION (FOR ALL WINDOWS OS) After hardware installation complete, system will detect new hardware automatically as below: Found New Hardware Wizard window pops up, click Cancel. Insert the driver disk into your DVD-ROM. Click My Computer icon, then click DVD-ROM, then click autorun - 5 - User Manual...
  • Page 7 Wireless Adapter RNX-G300EX/LX User Manual Click Driver Installation Click I accept the term of the license agreement ,then click Next icon. - 6 -...
  • Page 8 Wireless Adapter RNX-G300EX/LX User Manual Click Ralink Configuration Tool, then click Next icon. Click Optimize for WiFi modes, then click Next icon. - 7 -...
  • Page 9 Wireless Adapter RNX-G300EX/LX User Manual Click Install icon. Click Finish icon. - 8 -...

  • Page 10: Software Uninstall

    Wireless Adapter RNX-G300EX/LX User Manual SOFTWARE UNINSTALL Click My Computer icon, then click Add or Remove Program icon, and then click Ralink Wireless LAN icon and then click Remove icon. Click Yes, I want to restart my computer now icon, and then Finish icon. - 9 -...

  • Page 11: Ralink Wireless Utility ( Raui ) Or Windows Zero Configuration ( Wzc )

    Wireless Adapter RNX-G300EX/LX RALINK WIRELESS UTILITY ( RAUI ) OR WINDOWS ZERO CONFIGURATION ( WZC ) In windows XP, it provides wireless configuration utility named "Windows Zero configuration" which provides basic configuration function for Ralink Wireless NIC. Ralink's utility ( RaUI ) provides WPA supplicant functionality. To make it easier for user to select the correct utility.
  • Page 12 Wireless Adapter RNX-G300EX/LX User Manual Figure 1-3 RaUI status with WZC active When activating WZC, there are couple difference on RaUI status compared to that with out WZC running. A. Profile button will be gray, profile function is removed since the NIC is controlled by WZC B.

  • Page 13: Use Wzc To Configure Wireless Nic

    Wireless Adapter RNX-G300EX/LX User Manual USE WZC TO CONFIGURE WIRELESS NIC A. If connection is lost or not connected, the status prompt as Figure 1-4 will pop up. Figure 1-4 status prompt of no connection B. Right-click the network connection icon in task bar. Figure 1-5 Select WZC main status C.
  • Page 14 Wireless Adapter RNX-G300EX/LX User Manual Figure 1-6 Wireless Network Connection D. Select intended AP and click "Connect" shown as Figure 1-7. Then click "Connect Anyway" shown as Figure 1-8. - 13 -...
  • Page 15 Wireless Adapter RNX-G300EX/LX User Manual Figure 1-7 Select intended AP : AP1, then click "Connect" - 14 -...
  • Page 16 Wireless Adapter RNX-G300EX/LX User Manual Figure 1-8 Connect AP : AP1 successfully E. If you want to modify information about AP, click "Change advanced settings" shown as Figure 1-9. Then choose "Wireless Networks" label shown as Figure 1-10. - 15 -...
  • Page 17 Wireless Adapter RNX-G300EX/LX User Manual Figure 1-9 Click "Change advanced settings" Figure 1-10 Choose "Wireless Networks" label - 16 -...
  • Page 18 Wireless Adapter RNX-G300EX/LX F. Click "Properties" shown as Figure 1-11. Then click "OK" button. Figure 1-11 AP's properties G. After filling appropriate value, click "OK" button. And the status will prompt up as Figure 1-12. Figure 1-12 Network connection status H.
  • Page 19 Wireless Adapter RNX-G300EX/LX User Manual Figure 1-13 Show connection status by using WZC to do connection - 18 -...

  • Page 20: Start Raui

    Wireless Adapter RNX-G300EX/LX START RAUI When starting RaUI, system will connect to the AP with best signal strength without setting profile or matching profile setting. When starting RaUI, it will issue a scan command to wireless NIC. After two seconds, the AP list will updated with the result of BSS list scan.
  • Page 21 Wireless Adapter RNX-G300EX/LX User Manual A. Button Section : Include Profile page, Network page, Advanced page, Statistics page, WMM page, WPS page, About button, Radio On/Off button and Help button. Figure 2-1-2 Button section Figure 2-1-3 Move to the left Figure 2-1-4 Move to the right B.
  • Page 22 Wireless Adapter RNX-G300EX/LX User Manual Figure 2-1-6 Network page Figure 2-1-7 Advance page - 21 -...
  • Page 23 Wireless Adapter RNX-G300EX/LX User Manual Figure 2-1-8 Statistics page Figure 2-1-9 WMM page - 22 -...
  • Page 24 Wireless Adapter RNX-G300EX/LX User Manual Figure 2-1-10 WPS page Figure 2-1-11 About page C. Status Section : Include Link Status, Authentication Status, AP's information, Configuration and retrying the connection when authentication is failed. - 23 -...
  • Page 25 Wireless Adapter RNX-G300EX/LX User Manual Figure 2-1-12 Link Status Figure 2-1-13 Authentication Status Figure 2-1-14 AP's Information - 24 -...
  • Page 26 Wireless Adapter RNX-G300EX/LX User Manual Figure 2-1-15 Retry the connection Figure 2-1-16 Configuration At the mean time of starting RaUI, there is also a small Ralink icon appears within windows taskbar as Figure 2-1-15. You may double click it to bring up the main menu if you selected to close RaUI menu eariler.

  • Page 27: Profile

    Wireless Adapter RNX-G300EX/LX Besides, the small icon will change color to reflect current wireless network connection status. The status indicates as follow: : Indicate Connected and Signal Strength is Good. : Indicate Connected and Signal Strength is Normal. : Indicated not connected yet. : Indicated wireless NIC not detected.

  • Page 28: Icons And Buttons

    Wireless Adapter RNX-G300EX/LX User Manual ICONS AND BUTTONS : Indicate connection is successful on currently activated profile. Indicate connection is failed on currently activated profile. Indicate network type is infrastructure mode. Indicate network type is Ad-hoc mode. Indicate security-enabled wireless network. Add a new profile.

  • Page 29: Add/Edit Profile

    Wireless Adapter RNX-G300EX/LX User Manual ADD/EDIT PROFILE There are three methods to open Profile Editor form. A. You can open it from "Add to Profile" button in Site Survey function. B. You can open it from "Add" button in Profile function. C.
  • Page 30 Wireless Adapter RNX-G300EX/LX D. Network Type : There are two types, infrastructure and 802.11 Ad-hoc mode. Under Ad- hoc mode, user can also choose the preamble type, the available preamble type includes auto and long. In addition to that, the channel field will be available for setup in Ad-hoc mode.

  • Page 31: Example To Add Profile In Profile

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO ADD PROFILE IN PROFILE A. Click Add in Profile function. - 30 -...
  • Page 32 Wireless Adapter RNX-G300EX/LX User Manual B. Add Profile page will pop up. - 31 -...
  • Page 33 Wireless Adapter RNX-G300EX/LX User Manual C. Change profile name to what you want to connect. Pull down the ssid and select one intended AP. The AP list is the result of last Network. - 32 -...
  • Page 34 Wireless Adapter RNX-G300EX/LX User Manual D. Then, you can see the profile which you set appear in the profile list. Click "Activate".Activate the profile setting. - 33 -...

  • Page 35: Network

    Wireless Adapter RNX-G300EX/LX User Manual NETWORK Under the Network function, system will display the information of surrounding APs from last scan result. List informations include SSID, BSSID, Signal, Channel, Encryption algorithm, Authentication and Network type as Figure 2-3-1-1 shown. Figure 2-3-1-1 Network fuction Definition of each field : A.

  • Page 36: Icons And Buttons

    Wireless Adapter RNX-G300EX/LX User Manual ICONS AND BUTTONS : Indicate connection is successful. Indicate network type is infrastructure mode. Indicate network type is Ad-hoc mode. Indicate security-enabled wireless network. Indicate 802.11a wireless mode. mode. Indicate 802.11b wireless. Indicate 802.11g wireless mode. Indicate 802.11n wireless mode Indicate that AP list are sorted by SSID, Channel or Signal.

  • Page 37: Connected Network

    Wireless Adapter RNX-G300EX/LX CONNECTED NETWORK : A. When RaUI first ran, it will select the best AP to connect automatically. B. If user wants to connect to other AP. He can click "Connect" button for the intended AP to make connection. C.
  • Page 38 Wireless Adapter RNX-G300EX/LX User Manual A-1.General information contain AP's ssid, MAC address, authentication type, encryption type, channel, network type, beacon interval, signal strength and supported rates. It shows as Figure 2-3-1-2. Figure 2-3-1-2 General informaion about AP's detal information - 37 -...
  • Page 39 Wireless Adapter RNX-G300EX/LX A-2. WPS information contain authentication type, encryption type, config methods, device password id, selected registrar, state, version, AP setup locked, UUID-E and RF bands as Figure 2-3-1-3. The introduction indicates as follow : A-2-1. Authentication Type : There are three type of authentication modes supported by RaConfig. They are open, Shared, WPA-PSK and WPA system.
  • Page 40 Wireless Adapter RNX-G300EX/LX User Manual Figure 2-3-1-3 WPS information about AP's detail information - 39 -...
  • Page 41 Wireless Adapter RNX-G300EX/LX User Manual A-3. CCX information contains CCKM, Cmic and Ckip information. It shows as Figure 2-3-1-4. Figure 2-3-1-4 CCX information about AP's detail information - 40 -...
  • Page 42 Wireless Adapter RNX-G300EX/LX User Manual A-4. 802.11n information contains some related 802.11n information. It shows as Figure 2-3-1-5. Figure 2-3-1-5 802.11n information - 41 -...

  • Page 43: Example On Adding Profile In Network

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE ON ADDING PROFILE IN NETWORK A. Select the intended network from AP list in Network function. - 42 -...
  • Page 44 Wireless Adapter RNX-G300EX/LX User Manual B. Click "Add to Profile". - 43 -...
  • Page 45 Wireless Adapter RNX-G300EX/LX User Manual C. System will pop up Add Profile windows. You can change profile name which you like most. - 44 -...
  • Page 46 Wireless Adapter RNX-G300EX/LX User Manual D. Then, you can see the profile which you set appear in the profile list. Click "Activate".Activate the profile setting. - 45 -...

  • Page 47: Advanced

    Wireless Adapter RNX-G300EX/LX ADVANCED Figure 2-4 shows Advance function of RaUI. Figure 2-4 Advance function A. Wireless mode : Select wireless mode. 802.11 B only, 802.11 A only, 802.11 B/G mix, 802.11 B/G/N mix, 802.11 A/B/G mix, and 802.11 A/B/G/N mix modes are supported. (802.11 A/B/G mix selection item only exists for A/B/G adapter ;...

  • Page 48: Icons And Buttons

    Wireless Adapter RNX-G300EX/LX ICONS AND BUTTONS: Show the information of Status Section. Hide the information of Status Section. STATISTICS Statistics page displays the detail counter information based on 802.11 MIB counters. This page translates that MIB counters into a format easier for user to understand. Figure 2-5-1 shows the detail page layout. Figure 2-5-1 Statistics function Transmit Statistics : A.

  • Page 49: Icons And Buttons

    Wireless Adapter RNX-G300EX/LX User Manual C. RTS Frames Successfully Receive CTS : Successfully receive CTS after sending RTS frame. D. RTS Frames Fail To Receive CTS : Failed to receive CTS after sending RTS. E. Frames Retransmitted Successfully : Successfully retransmitted frames numbers. F.

  • Page 50: Wmm

    Wireless Adapter RNX-G300EX/LX Figure 2-6-1 shows WMM function of RaUI. It involves "WMM Enable", "WMM - Power Save Enable" and DLS setup. The introduction indicates as follow : Figure 2-6-1 WMM function A. WMM Enable : Enable Wi-Fi Multi-Media. The setting method follows Section 2-6-2. WMM – B.

  • Page 51: Example To Configure To Enable Dls (Direct Link Setup)

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE TO ENABLE DLS (DIRECT LINK SETUP) A. Click "Direct Link Setup Enable" - 50 -...
  • Page 52 Wireless Adapter RNX-G300EX/LX B. Change to "Network" function. And add a AP that supports DLS features to a Profile. The result will look like the below figure in Profile page. The setting of DLS indicates as follow : A. Fill in the blanks of Direct Link with MAC Address of STA. The STA must conform to two conditions as follow : 1.
  • Page 53 Wireless Adapter RNX-G300EX/LX User Manual B. Timeout Value represents that it disconnect automatically after some seconds. The value is integer. The integer must be between 0~65535. It represents that it always connects if the value is zero. Default value of Timeout Value is 60 seconds. - 52 -...
  • Page 54 Wireless Adapter RNX-G300EX/LX User Manual C. Click "Apply" button. The result will look like the below figure. Describe "DLS Status" as follow : A. As the up figure, after configuring DLS successfully, show MAC address of the opposite side and Timeout Value of setting in "DLS Status".
  • Page 55 Wireless Adapter RNX-G300EX/LX User Manual B-2. Double click. And the result will look like the below figure. C. Disconnect Direct Link Setup as follow : C-1. Select a direct link STA. - 54 -...
  • Page 56 Wireless Adapter RNX-G300EX/LX User Manual C-2. Click "Tear Down" button. The result will look like the below figure. - 55 -...

  • Page 57: Example To Configure To Enable Wi-Fi Multi-Media

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE TO ENABLE WI-FI MULTI-MEDIA If you want to use "WMM-Power Save" or "Direct Link" you must enable WMM. The setting method of enabling WMM indicates as follows: A. Click "WMM Enable". - 56 -...
  • Page 58 Wireless Adapter RNX-G300EX/LX User Manual B. Change to "Network" function. And add a AP that supports WMM features to a Profile. The result will look like the below figure in Profile page. - 57 -...

  • Page 59: Example To Configure To Enable Wmm Power Save

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE TO ENABLE WMM POWER SAVE A. Click "WMM-Power Save Enable". B. Please select which ACs you want to enable. The setting of enabling WMM-Power Save is successfully. - 58 -...

  • Page 60: Wps

    Wireless Adapter RNX-G300EX/LX User Manual Figure 2-7-1 shows WPS function of RaUI. The introduction indicates as follow: Figure 2-7-1 WPS function - 59 -...

  • Page 61: Icons And Buttons

    Wireless Adapter RNX-G300EX/LX A. WPS Configuration : The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. Ralink STA as an Enrollee or external Registrar supports the configuration setup using PIN configuration method or PBC configuration method through an internal or external Registrar.

  • Page 62: Wps Information On Ap

    Wireless Adapter RNX-G300EX/LX User Manual WPS INFORMATION ON AP WPS information contain authentication type, encryption type, config methods, device password id, selected registrar, state, version, AP setup locked, UUID-E and RF bands. The introduction indicates as follow : - 61 -...
  • Page 63 Wireless Adapter RNX-G300EX/LX A. Authentication Type : There are three type of authentication modes supported by RaConfig. They are open, Shared, WPA-PSK and WPA system. B. Encryption Type : For open and shared authentication mode, the selection of encryption type are None and WEP. For WPA, WPA2, WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES.

  • Page 64: Example To Add To Registrar Using Pin Method

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO ADD TO REGISTRAR USING PIN METHOD The user obtains a device password (PIN Code) from the STA and enters the password into the Registrar. Both the Enrollee and the Registrar use PIN Config method for the configuration setup. The detail indicates as follows. A.
  • Page 65 Wireless Adapter RNX-G300EX/LX User Manual B. Click "Rescan" button to update available WPS APs. C. Select an AP (SSID/BSSID) that STA will join to. - 64 -...
  • Page 66 Wireless Adapter RNX-G300EX/LX D. Click "PIN" button to start PIN connection. F. Enter PIN Code of STA into the Registrar when prompted by the Registrar. *Allow of an exchange between Step 4 and Step 5. *If you use Microsoft Window Connection Now as an External Registrar, you must start PIN connection at STA first. After that, search out your WPS Device name and MAC address at Microsoft Registrar.
  • Page 67 Wireless Adapter RNX-G300EX/LX User Manual H. Configured and got one or multiple credential(s). I. Then connect successfully. The result will look like the below figure. - 66 -...
  • Page 68 Wireless Adapter RNX-G300EX/LX User Manual J. Click "Detail" button. K. You will look like the below figure. *If Credential#1 is reliable and present, system will connect with Credential#1. On the contrary, system will auto rotate to the next existed credential. *Also you can click "Rotate"...
  • Page 69 Wireless Adapter RNX-G300EX/LX User Manual A. Asuccessful PIN Configuration : Start PIN connection - SSID ~> Begin associating to WPS AP ~> Associated to WPS AP ~> Sending EAPOL-Start ~> Sending EAP-Rsp (ID) ~> Receive EAP-Req (Start) ~> Sending M1 ~> Received M2 ~> (Received M2D ~> Sending EAP-Rsp (ACK)) ~> Sending M3 ~>...

  • Page 70: Example To Add To Registrar Using Pbc Method

    Wireless Adapter RNX-G300EX/LX EXAMPLE TO ADD TO REGISTRAR USING PBC METHOD The PBC method requires the user to press a PBC button on both the Enrollee and the Registrar within a two-minute interval called the Walk Time. If only one Registrar in PBC mode, which PBC mode is obtained from ID 0x0004, is found after a complete scan, the Enrollee can immediately begin running the Registration Protocol.
  • Page 71 Wireless Adapter RNX-G300EX/LX User Manual B. Click PBC to start PBC connection. C. Push PBC on AP. *Allow of an exchange between Step 2 and Step 3. D. Then it can be shown "Rcanning AP" as the below figure. - 70 -...
  • Page 72 Wireless Adapter RNX-G300EX/LX User Manual E. When finding only one AP, join it. F. Check WPS Information on available WPS APs - 71 -...
  • Page 73 Wireless Adapter RNX-G300EX/LX User Manual G. Configured and got one or multiple credential(s). H. Then connect successfully. The result will look like the below figure. Describe "WPS Status Bar" - "PBC - xxx" as follow : - 72 -...
  • Page 74 Wireless Adapter RNX-G300EX/LX A. A successful PBC Configuration : Start PBC connection ~> Scanning AP ~> Begin associating to WPS AP ~> Associated to WPS AP ~> Sending EAPOL-Start ~> Sending EAP-Rsp (ID) ~> Receive EAP-Rsp (Start) ~> Sending M1 ~> Received M2 ~> Sending M3 ~> Received M4 ~> Sending M5 ~> Received M6 ~> Sending M7 ~> Received M8 ~>...

  • Page 75: Example To Configure A Network/Ap Using Pin Or Pbc Method

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE A NETWORK/AP USING PIN OR PBC METHOD A o to the box of Config Mode and select Registrar. - 74 -...
  • Page 76 Wireless Adapter RNX-G300EX/LX B. Enter "Detail" of the credential and change configurations (SSID, Authentication, Encryption and Key) manually if need. C. If PIN configuration setup, enter Pin Code read from your Enrollee. D. Start PIN or PBC. The following procedures are as similar as section 2-7-3(PIN Enrollee Setup) or section 2-7-4(PBC Enrollee Setup), E.
  • Page 77 Wireless Adapter RNX-G300EX/LX Describe "WPS Status Bar" - "PIN - xxx" as follow : A successful PIN Configuration : Start PIN connection - SSID ~> Begin associating to WPS AP ~> Associated to WPS AP ~> Sending EAPOL-Start ~> Sending EAP-Rsp (ID) ~> Receive M1 ~> Sending M2 ~> Receive M3 ~> Sending M4 ~> Receive M5 ~>...

  • Page 78: Link Status

    Wireless Adapter RNX-G300EX/LX LINK STATUS Figure 2-9 is the link status page, it displays the detail information current connection. Figure 2-9 Link Status function A. Status : Current connection status. If no connection, if will show Disconnected. Otherwise, the SSID and BSSID will show here.

  • Page 79: Auth. \ Encry. Setting - Wep/Tkip/Aes

    Wireless Adapter RNX-G300EX/LX AUTH. \ ENCRY. SETTING - WEP/TKIP/AES Auth. \ Encry. Setting, shown as Figure 3-1. Figure 3-1 Auth. \ Encry. Setting A. Authentication Type : There are 7 type of authentication modes supported by RaUI. They are open, Shared, LEAP, WPA and WPA-PSK, WPA2 and WPA2-PSK.

  • Page 80: 802.1X Setting

    Wireless Adapter RNX-G300EX/LX 802.1X SETTING 802.1x is a authentication for "WPA" and "WPA2" certificate to server. AUTHENTICATION TYPE : A. PEAP : Protect Extensible Authentication Protocol. PEAP transport securely authentication data by using tunneling between PEAP clients and an authentication server. PEAP can authenticate wireless LAN clients using only server-side certificates, thus simplifying the implementation and administration of a secure wireless LAN.

  • Page 81: Authentication

    Wireless Adapter RNX-G300EX/LX AUTHENTICATION : A. Protocol : Tunnel protocol, List information include "EAP-MSCHAP v2", "EAP-TLS/Smart card", "Generic Token Card", "CHAP", "MS-CHAP", "MS-CHAP-V2", "PAP" and "EAP- MD5". B. Tunnel Identity : Identity for tunnel. C. Tunnel Password : Password for tunnel. - ID \ PASSWORD - A.

  • Page 82: Eap Fast

    Wireless Adapter RNX-G300EX/LX - EAP FAST - A. Allow unauthenticated provision mode : During the PAC can be provisioned (distributed one time) to the client automatically. It only supported "Allow unauthenticated provision mode" and use "EAP-MSCHAP v2" authentication to authenticate now. It causes to continue with the establishment of the inner tunnel even though it is made with an unknown server.

  • Page 83: Example To Reconnect 802.1X Authenticated Connection After 802.1X Authenticated Connection Is Failed In Profile

    Wireless Adapter RNX-G300EX/LX EXAMPLE TO RECONNECT 802.1X AUTHENTICATED CONNECTION AFTER 802.1X AUTHENTICATED CONNECTION IS FAILED IN PROFILE There are two situations to be able to reconnect 802.1x authenticated connection and authenticate successfully after 802.1x authenticated connection is failed in profile page. Two examples about this case are as follows: When keying in error identity, password or domain name : A.
  • Page 84 Wireless Adapter RNX-G300EX/LX User Manual D. Click "OK" button. If it connected successfully, the result will look like the below figure. - 83 -...
  • Page 85 Wireless Adapter RNX-G300EX/LX User Manual When occurring "Timeout" : A. Authentication type chooses "PEAP", key identity into wpatest2. Tunnel Protocol is "EAP-MSCHAP-v2, and tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP's setting. B.
  • Page 86 Wireless Adapter RNX-G300EX/LX User Manual c. If it connected successfully, the result will look like the below figure. - 85 -...

  • Page 87: Example To Configure Connection With Wep On

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE CONNECTION WITH WEP ON A. Select AP with WEP encryption and click "Connect" button. - 86 -...
  • Page 88 Wireless Adapter RNX-G300EX/LX User Manual B. Auth. \ Encry. function pop up. - 87 -...
  • Page 89 Wireless Adapter RNX-G300EX/LX User Manual C. Enter 1234567890 at Key#1 which is same as our intended AP's setting. - 88 -...
  • Page 90 Wireless Adapter RNX-G300EX/LX User Manual D. Click "OK" button. The result will look like the below figure. - 89 -...

  • Page 91: Example To Configure Connection With Wpa-Psk

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE CONNECTION WITH WPA-PSK A. Select the AP with WPA-PSK authentication mode and click "Connect" button. - 90 -...
  • Page 92 Wireless Adapter RNX-G300EX/LX User Manual B. Auth. \ Encry. function pop up. (If AP setup security to Both (TKIP + AES), system defines is AES that security is severely.) - 91 -...
  • Page 93 Wireless Adapter RNX-G300EX/LX User Manual C. Authentication Type is WPA-PSK. Select correct encryption (TKIP or AES). Enter WPA Pre-Shared Key secret as 12345678. - 92 -...
  • Page 94 Wireless Adapter RNX-G300EX/LX User Manual D. Click "OK" button. Be careful, if the WPA Pre-Shared Key entered is not correct, even though the AP can be connected, but you won’t be able to exchange any data frames. - 93 -...

  • Page 95: Example To Configure Connection With Wpa

    Wireless Adapter RNX-G300EX/LX User Manual EXAMPLE TO CONFIGURE CONNECTION WITH WPA A. Select AP with WPA authentication mode and click "Connect" button. - 94 -...
  • Page 96 Wireless Adapter RNX-G300EX/LX User Manual B. Auth. \ Encry. function pop up. (If AP setup security to Both (TKIP + AES), system defines is AES that security is severely.) - 95 -...
  • Page 97 Wireless Adapter RNX-G300EX/LX User Manual C. Click "8021X" button and 802.1x setting page will pop up. - 96 -...
  • Page 98 Wireless Adapter RNX-G300EX/LX D. Authentication type and setting method : PEAP : A. Authentication type chooses PEAP, key identity into wpatest2. Protocol chooses EAP- MSCHAP v2 for tunnel authentication, tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP's setting.
  • Page 99 Wireless Adapter RNX-G300EX/LX User Manual B. Click OK. The result will look like the below figure. *If you want to disconnect, please click cancel button in Authentication Status function. *In Profile function, show "Profile Name" option only in adding AP to Profile function. - 98 -...
  • Page 100 Wireless Adapter RNX-G300EX/LX User Manual C. If it connected successfully, the result will look like the below figure. - 99 -...
  • Page 101 Wireless Adapter RNX-G300EX/LX User Manual TLS / Smart Card : A. Authentication type chooses TLS / Smart Card, TLS only need identity that is wpatest2 for server authentication. - 100 -...
  • Page 102 Wireless Adapter RNX-G300EX/LX User Manual B. TLS must use client certification. Click "Client Certification" button and choose a certification for server authentication. - 101 -...
  • Page 103 Wireless Adapter RNX-G300EX/LX User Manual C. Click "OK" button. The result will look like the below figure. *If you want to disconnect, please click cancel button in Authentication Status function. *In Profile function, show "Profile Name" option only in adding AP to Profile function. - 102 -...
  • Page 104 Wireless Adapter RNX-G300EX/LX User Manual D. If it connected successfully, the result will look like the below figure. - 103 -...
  • Page 105 Wireless Adapter RNX-G300EX/LX User Manual TTLS : A. Authentication type chooses TTLS, identity is wpatest2. Protocol chooses CHAP for tunnel authentication, tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP's setting. - 104 -...
  • Page 106 Wireless Adapter RNX-G300EX/LX User Manual B. Click "OK" button. The result will look like the below figure. *If you want to disconnect, please click cancel button in Authentication Status function. *In Profile function, show "Profile Name" option only in adding AP to Profile function. - 105 -...
  • Page 107 Wireless Adapter RNX-G300EX/LX User Manual C. If it connected successfully, the result will look like the below figure. - 106 -...

  • Page 108: Eap-Fast

    Wireless Adapter RNX-G300EX/LX EAP-FAST : A. Authentication type chooses EAP-FAST, key identity into wpatest2; key domain name into blank space. Tunnel Protocol only supported "Generic Token Card" now, and tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP's setting.
  • Page 109 Wireless Adapter RNX-G300EX/LX User Manual B. Click "OK" button. The result will look like the below figure. - 108 -...
  • Page 110 Wireless Adapter RNX-G300EX/LX User Manual C. If it connected successfully, the result will look like the below figure. *If you want to disconnect, please click cancel button in Authentication Status function. *In Profile function, show "Profile Name" option only in adding AP to Profile function. - 109 -...

  • Page 111: Acknowledgements

    Eric Young (eay@cryptsoft .com). This product includes software written by Tim Hudson (tjh@cryptsoft.com). Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product. - 110 -...

This manual is also suitable for:

Rnx-g300exRnx-g300lx
