Summary of Contents for Lifetime 80123

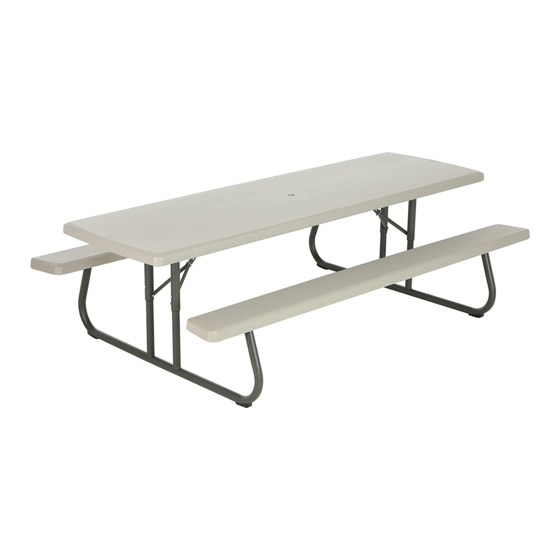

- Page 1 MODEL N° 80123 OWNER’S MANUAL Keep this Identification Number in case you must contact our Customer Service Department.
-
Page 2: Safety Instructions
REGISTER YOUR LIFETIME PRODUCT TODAY! There are benefi ts to registering your Lifetime product. With our new online product registration form, it’s fast and easy! Register with us at www.lifetime.com and enjoy these great benefi ts: LIFETIME’S PROMISE TO YOU: Maintaining your privacy is our long-standing policy at Lifetime. -
Page 3: Before Beginning Assembly
BEFORE BEGINNING ASSEMBLY Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department. *TWO ADULTS REQUIRED TO COMPLETE ASSEMBLY* TOOLS REQUIRED FOR THIS ASSEMBLY Phillips Screwdriver Safety Glasses... - Page 4 ASSEMBLY GUIDES Refer to the following areas throughout the instructions to assist in the assembly process: TOOLS AND HARDWARE REQUIRED FOR THIS PAGE This area is located at the top, left-hand corner of the page and indicates which tools and hardware are needed to complete the assembly steps on a page.
-
Page 5: Parts List
PARTS LIST Item Description PARTS IDENTIFIER PART ILLUSTRATIONS Note: Ensure Bushings (BAH) are inserted into Brace Assemblies (BAF). - Page 6 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE REMOVE HARDWARE FROM J-CHANNEL Table Top Assembly (BAC) J-Channels J-Channel Note: Save the Screws for use later in the assembly.
- Page 7 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO HARDWARE REQUIRED ON THIS PAGE **TWO ADULTS REQUIRED FOR THIS STEP** Leg Latches (BAG) over Brace Assemblies (BAF) Note: Do not put the J-Channel on upside down. Refer to the installed J-Channel for the correct orientation.
- Page 8 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE USE HARDWARE TAKEN FROM J-CHANNEL **TWO ADULTS REQUIRED FOR THIS STEP** Brace Assemblies (BAF)
- Page 9 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE REMOVE HARDWARE FROM J-CHANNEL Table Leg Assemblies (BAE) Brace Assemblies (BAF) Tubes must face each other Bushing Push- Button Detail 1 Bench Assembly (BAD) J-Channel Note: Save the Screws for use later in the assembly.
- Page 10 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE USE HARDWARE TAKEN FROM J-CHANNEL **TWO ADULTS REQUIRED FOR THIS STEP** Table Leg Assembly (BAE) Note: Do not put the J-Channel on upside down. Refer to the installed J-Channel for the correct orientation. **TWO ADULTS REQUIRED FOR THIS STEP** 1.10 Repeat Steps 1.8 through 1.10 to attach the other Bench.
- Page 11 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO HARDWARE REQUIRED ON THIS PAGE **TWO ADULTS REQUIRED FOR THIS STEP** 1.11 Leg Latches (BAG) 1.12 Umbrella Hole Plug (BBZ) Figure 3 Figure 2 Figure 1 CAUTION...
-
Page 12: Setup Instructions
SET-UP INSTRUCTIONS **TWO ADULTS REQUIRED FOR THIS STEP** CAUTION... - Page 13 TABLE STORAGE **TWO ADULTS REQUIRED FOR THIS STEP** Leg Latches...
- Page 14 TABLE STORAGE **TWO ADULTS REQUIRED FOR THIS STEP**...
-
Page 15: Cleaning And Care
CLEANING AND CARE CLEANING AND CARE WARNING ADVERTENCIA AVERTISSEMENT #F020012 D... - Page 16 LIFETIME 2-YEAR LIMITED FACTORY WARRANTY LIFETIME PRODUCTS, INC. RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE. PLEASE INCLUDE YOUR DATED SALES RECEIPT AND PHOTOGRAPHS OF DAMAGED PARTS. REGISTER YOUR PRODUCT FOR QUICKER CUSTOMER SERVICE.
