Lifetime 80172 Owner's Manual

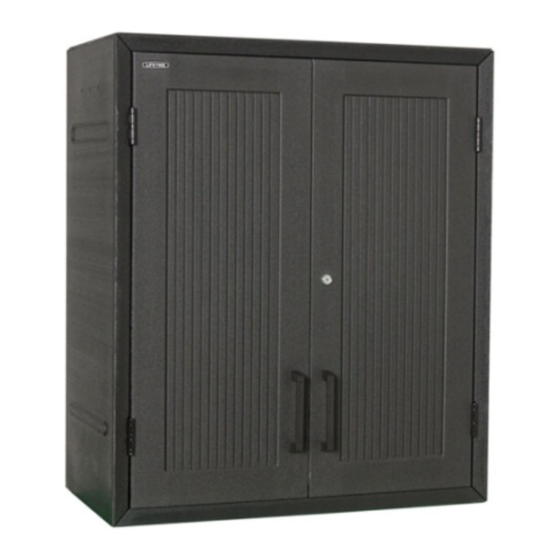

Garage storage cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL N° 80172
OWNER'S MANUAL
Keep this Identification Number in case you must contact our Customer Service Department.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80172 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifetime 80172

Summary of Contents for Lifetime 80172

  • Page 1 MODEL N° 80172 OWNER’S MANUAL Keep this Identification Number in case you must contact our Customer Service Department.

  • Page 2: Safety Instructions

    REGISTER YOUR LIFETIME PRODUCT TODAY! There are benefi ts to registering your Lifetime product. With our new online product registration form, it’s fast and easy! Register with us at www.lifetime.com and enjoy these great benefi ts: LIFETIME’S PROMISE TO YOU: Maintaining your privacy is our long-standing policy at Lifetime.

  • Page 3: Before Beginning Assembly

    BEFORE BEGINNING ASSEMBLY Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department. *TWO ADULTS REQUIRED TO COMPLETE ASSEMBLY* TOOLS REQUIRED FOR THIS ASSEMBLY Phillips Screwdriver 7/8” Wrench Safety Glasses...
  • Page 4 ASSEMBLY GUIDES Refer to the following areas throughout the instructions to assist in the assembly process: This area is located at the top, left-hand TOOLS AND HARDWARE REQUIRED FOR THIS PAGE corner of the page and indicates which tools and hardware are needed to complete the assembly steps on a page.

  • Page 5: Parts List

    PARTS LIST Item Description Main Parts 80172 Small Parts Kit 80172 Kit Box 80172 Assembly Hardware PARTS IDENTIFIER 80172 KIT BOX [CMY] *CMB...
  • Page 6 PARTS IDENTIFIER 80172 SMALL PARTS KIT [CMX] 80172 ASSEMBLY HARDWARE [CMS]...
  • Page 7 PARTS IDENTIFIER MAIN PARTS...
  • Page 8 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE CABINET ASSEMBLY Door Magnet Plate (CMA) Left Door (CMH) 1/4” x 5/8” Pan-Head Screws (ADZ) Do not overtighten. Note: Use only a hand screwdriver for all steps. Door Hinges (CLY) 1/4” x 5/8” Pan-Head Screws (ADZ) Do not overtighten.
  • Page 9 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Door Handle (CLX) 1/4” x 1 1/2” Countersink Screws (CLV). Tighten Screws until the Door Handle is flush with the Left Door, but do not overtighten. Two sets of holes Note: There are two sets of holes for the Door Handle. If the Cabinet is set down low, e.g., on the floor, you may want the Handle on the upper set of holes.
  • Page 10 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Lock Bracket (CMQ) Screw Star-toothed Washer Lock Bracket (CMQ) Note: In the illustration above, the Lock Bracket (CMQ) is shown in “Locked” position. Locking Arms (CMB)
  • Page 11 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 7/16” Locking Arm Guide (CMC) 1/4” x 5/8” Pan-Head Screws (ADZ) Using a 7/8” wrench, tighten the Hex Nut on the Lock. Door Magnets (CLZ) Top Panel (CML) 1/4” x 5/8” Pan-Head Screws (ADZ) Magnets Note: The magnets should face toward the outside.
  • Page 12 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Support Tube Brackets (CMM) 1/4” x 5/8” Pan-Head Screw (ADZ) Support Tube (CMD) 1.10...
  • Page 13 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Wall Mounting Bracket (CME) 1/4” x 5/8” Pan-Head Screws (ADZ) 1.11...
  • Page 14 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Left Wall Panel (CMJ) 1.12 1/4” x 5/8” Pan-Head Screws (ADZ) Repeat this step for the Right Wall Panel (CMK). Left and Right Rear Wall Panels (CMO and CMP) 1.13 Upside down view...
  • Page 15 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO HARDWARE REQUIRED FOR THIS PAGE Support Tubes (CMD) Bottom Panel (CMF) 1.14 Rear View Note: The Bottom Panel fits only one way. The tabs on the Left & Right Rear Wall Panels fit into the groove towards the rear of the Support Tubes (CMD) Bottom Panel.
  • Page 16 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 1/4” x 5/8” 1.15 Pan-Head Screws (ADZ) 1/4” x 1 1/2” Countersink Screws (CLV) Note: Do not overtighten Screws (CLV). Overtightening may prevent Cabinet Doors from closing properly.
  • Page 17 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 1/4” x 5/8” Pan-Head Screws (ADZ) 1.16 1/4” x 1 1/2” Countersink Screws (CLV) 1.17 Note: Do not overtighten Screws (CLV). Overtightening may prevent Cabinet Doors from closing properly.
  • Page 18 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Support Tubes (CMD) Shelves (CMG) 1.18 1/4” x 5/8” Pan-Head Screws (ADZ) Repeat this step for the 1.19 Right Door.
  • Page 19 MOUNTING THE CABINET TO A WALL There are several holes in the Wall Mounting Bracket to help with alignment. Insert Lag Bolts in slots that line up with the studs in your wall.

  • Page 20: Stacking Cabinets

    STACKING CABINETS Note: Drill 1/4” holes here through the upper Cabinet and through the indents in the underside of the Top Panel for the lower Cabinet. 1/4” x 2 1/2” Carriage Bolts (CLW) 1/4” Flat Washer (ABD) 1/4” Hex Nut (BER) WARNING...
  • Page 21 ATTACHING CABINETS HORIZONTALLY 1/4” x 1 3/4” Carriage Bolts (CMW) 1/4” Flat Washer (ABD) 1/4” Hex Nut (BER) Note: Drill 1/4” holes here through the indents in the Wall Panel and through the indents Wall Panel of the adjacent Cabinet.

  • Page 22: Cleaning And Care

    CLEANING AND CARE CLEANING AND CARE...
  • Page 23 NOTES:...
  • Page 24 LIFETIME 10-YEAR LIMITED FACTORY WARRANTY LIFETIME PRODUCTS, INC. RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE. PLEASE INCLUDE YOUR DATED SALES RECEIPT AND PHOTOGRAPHS OF DAMAGED PARTS. REGISTER YOUR PRODUCT FOR QUICKER CUSTOMER SERVICE.
