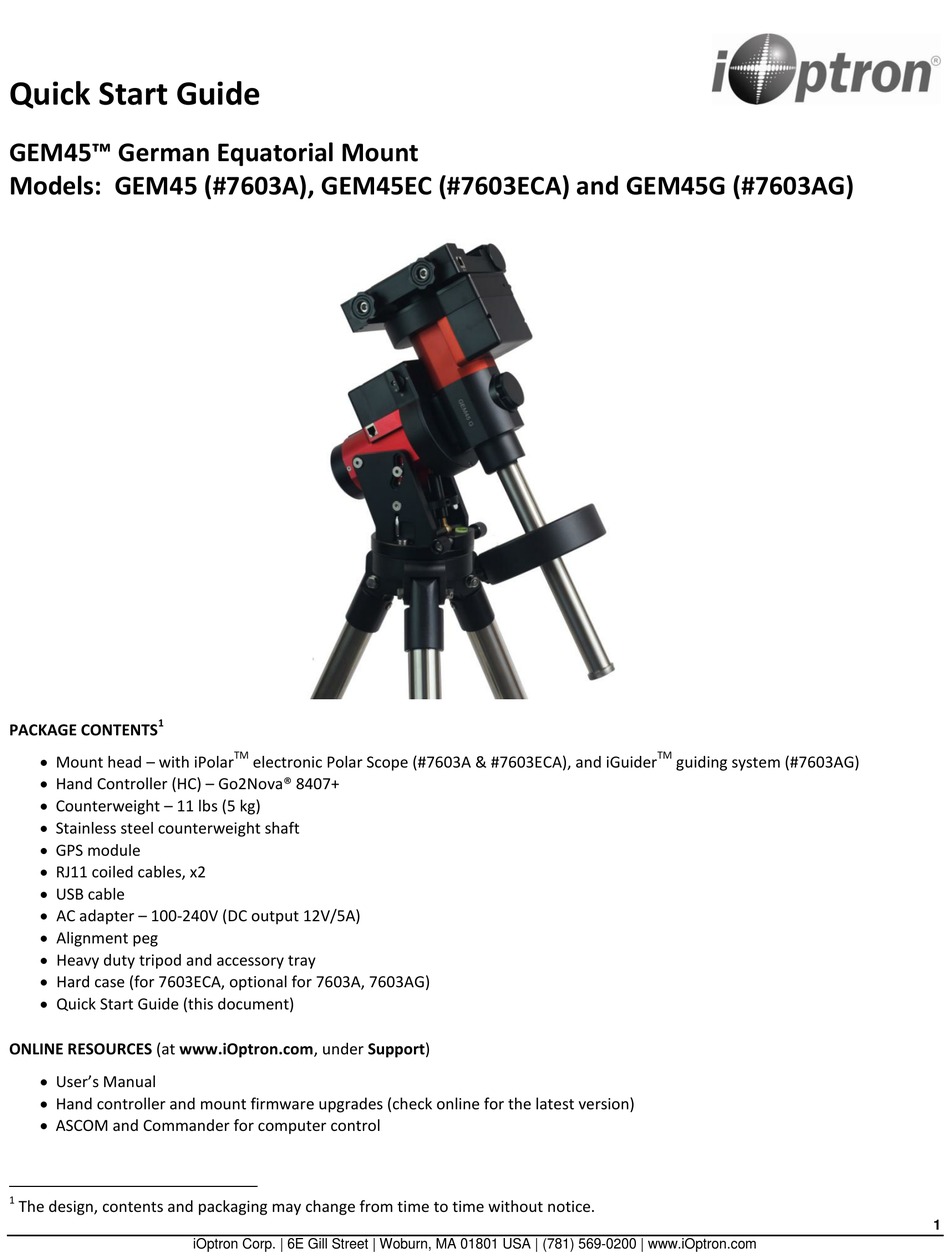

Quick Start Guide

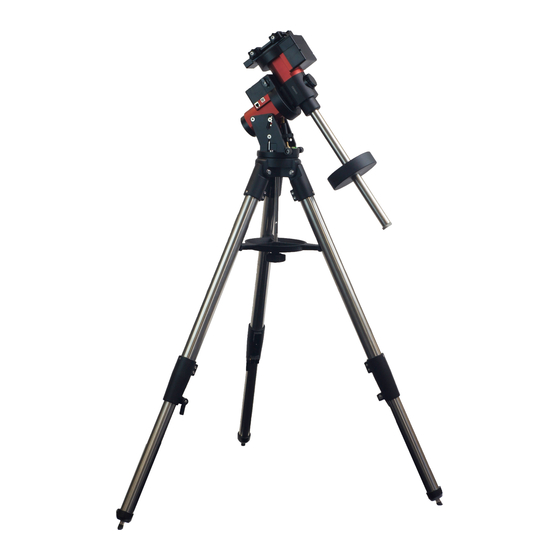

GEM45™ German Equatorial Mount
Models: GEM45 (#7603A), GEM45EC (#7603ECA) and GEM45G (#7603AG)
1

PACKAGE CONTENTS

 Mount head – with iPolar
 Hand Controller (HC) – Go2Nova® 8407+
 Counterweight – 11 lbs (5 kg)
 Stainless steel counterweight shaft
 GPS module
 RJ11 coiled cables, x2
 USB cable
 AC adapter – 100-240V (DC output 12V/5A)
 Alignment peg
 Heavy duty tripod and accessory tray
 Hard case (for 7603ECA, optional for 7603A, 7603AG)
 Quick Start Guide (this document)
ONLINE RESOURCES (at www.iOptron.com, under Support)
 User's Manual
 Hand controller and mount firmware upgrades (check online for the latest version)
 ASCOM and Commander for computer control
1
The design, contents and packaging may change from time to time without notice.
TM
electronic Polar Scope (#7603A & #7603ECA), and iGuider
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com
TM
guiding system (#7603AG)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEM45 and is the answer not in the manual?

Questions and answers

Summary of Contents for iOptron GEM45

  • Page 1  Hand controller and mount firmware upgrades (check online for the latest version)  ASCOM and Commander for computer control The design, contents and packaging may change from time to time without notice. iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
  • Page 2 Two latitude ranges, 14~44° and 36~68°, can be set the mount head by tightening the Azi Locking Screws up for the mount head. To change the latitude range iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
  • Page 3 Return to Zero Position for balance adjustment. Balance the DEC axis by moving the scope with accessories back and forth iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
  • Page 4 GPS OK. (It takes about cycle the mount. Double check the HC display and it 1 to 2 minutes in normal conditions). should show correct local time. iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
  • Page 5 Zero Position discrepancy and improve support. GOTO accuracy. Refer to User’s Manual for more details about improving GOTO accuracy. V2.0 iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
  • Page 6 A. iOptron warrants your telescope, mount, or controller to be free from defects in materials and workmanship for two years. iOptron will repair or replace such product or part which, upon inspection by iOptron, is found to be defective in materials or workmanship. As a condition to the obligation of iOptron to repair or replace such product, the product must be returned to iOptron together with proof-of- purchase satisfactory to iOptron.
