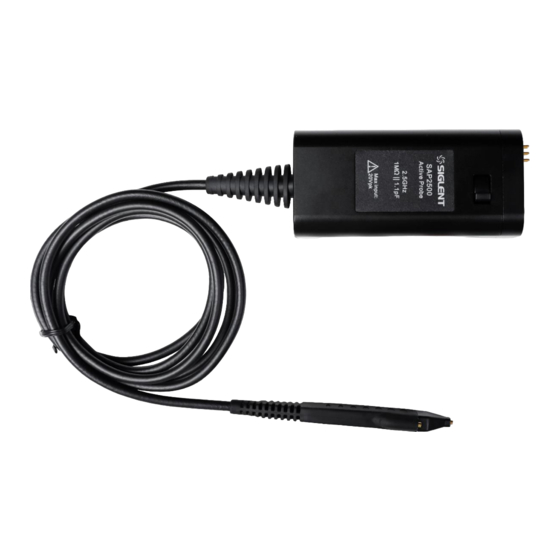

SIGLENT TECHNOLOGIES SAP1000 User Manual

Active probe
Hide thumbs Also See for SAP1000:
Table of Contents

Advertisement

Quick Links

Download this manual
SAP1000/SAP2500
Active Probe
User Manual
EN01A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAP1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT TECHNOLOGIES SAP1000

Summary of Contents for SIGLENT TECHNOLOGIES SAP1000

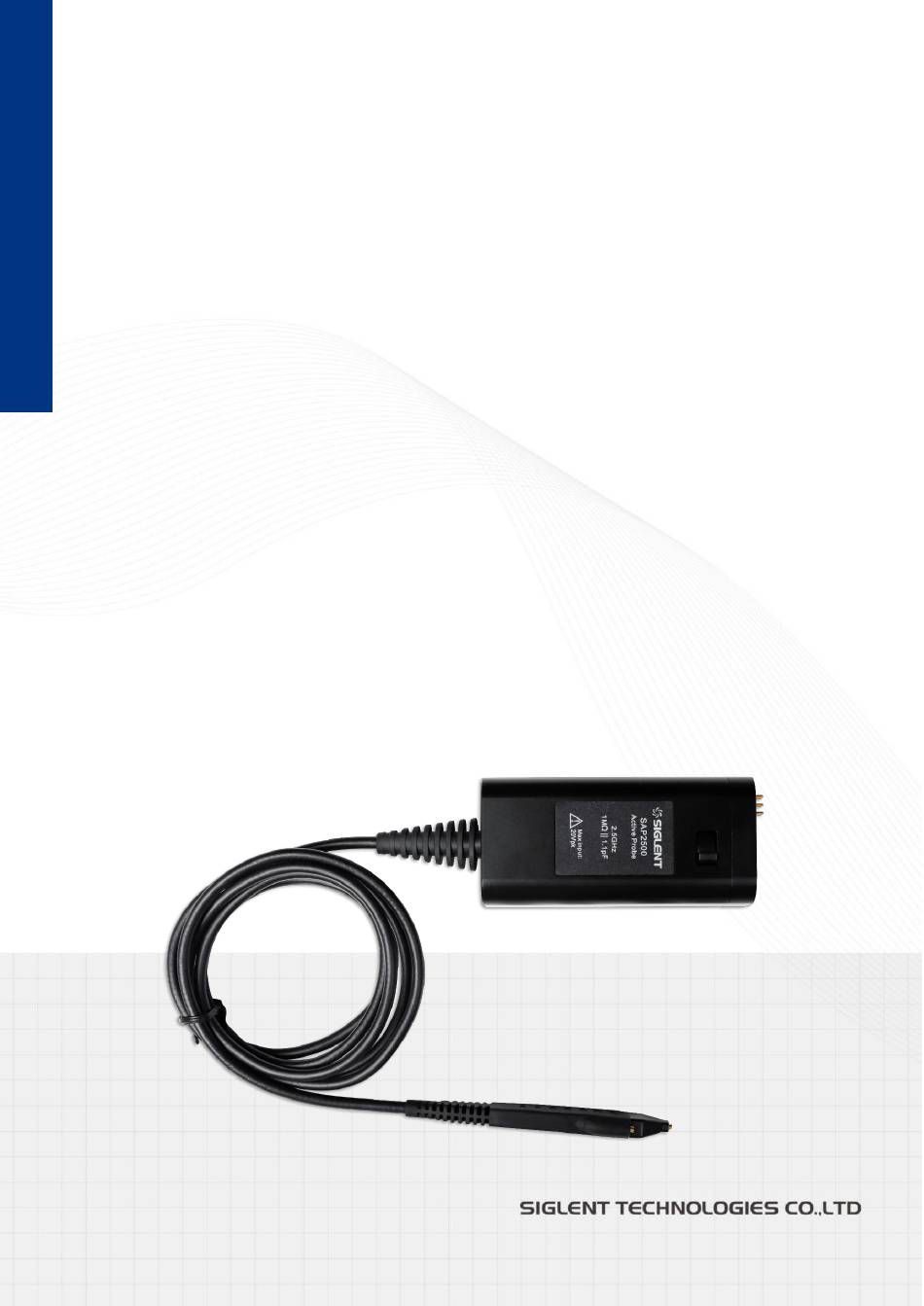

  • Page 1 SAP1000/SAP2500 Active Probe User Manual EN01A...

  • Page 3: Table Of Contents

    UALITY SSURANCE ..........................8 AINTENANCE GREEMENT MECHANICAL DIMENSION ..........................9 ACCESSORIES ..............................10 PROBE OPERATION ............................14 ..................14 ONNECTING THE ROBE TO AN SCILLOSCOPE ..................14 ONNECTING THE ROBE TO THE IRCUIT SPECIFICATIONS..............................16 SAP1000/SAP2500 Active Probe User Manual...

  • Page 4: Safety Instructions

    Use indoors only. Keep product surfaces clean and dry. Be careful with sharp tips. The tips may cause bodily injury if not handled properly. SAP1000/SAP2500 Active Probe User Manual...

  • Page 5: Symbols

    Temperature： 5° to 40° C. Humidity：Maximum relative humidity 80 % for temperatures up to 30 ° C decreasing linearly to 50 % relative humidity at 40° C. Altitude：Up to 10,000 ft (3,048 m). SAP1000/SAP2500 Active Probe User Manual...

  • Page 6: Calibration

    CAUTION: The probe case is not sealed and should never be immersed in any fluid. 1.5 Abnormalities This probe should only be used for the purpose specified by the manufacturer. The probe may be damaged when it exhibits visible damage or is subjected to SAP1000/SAP2500 Active Probe User Manual...
  • Page 7 WARNING: Using the probe in a manner not specified by the manufacturer may damage the probe. This probe and related accessories should not be directly connected to the human body or used for patient monitoring. SAP1000/SAP2500 Active Probe User Manual...

  • Page 8: First Steps

    1. Turn on the oscilloscope and warm up for 20 minutes. 2. Connect the active probe to channel 1 of the oscilloscope. 3. Open the parameter bar of channel 1 and check the probe information, SAP1000/SAP2500 Active Probe User Manual...

  • Page 9: Quality Assurance

    SIGLENT can repair or replace any product that is returned to the authorized service center during the warranty period. We must first examine the product to SAP1000/SAP2500 Active Probe User Manual...

  • Page 10: Maintenance Agreement

    We provide various services based on maintenance agreements. We offer extended warranties as well as installation, training, enhancement and on-site maintenance, and other services through specialized supplementary support agreements. For details, please consult your local SIGLENT customer service center or distributor. SAP1000/SAP2500 Active Probe User Manual...

  • Page 11: Mechanical Dimension

    3 Mechanical Dimension Characteristic Description SAPBus interface 115.0 mm × 38.9 mm × 24.5 mm Probe head 83.0 mm × 14.1 mm × 6.4 mm Cable length 1.3 m (from the probe head to the compensation box) SAP1000/SAP2500 Active Probe User Manual...

  • Page 12: Accessories

    4 Accessories The SAP1000 and SAP2500 probes are provided with numerous features and accessories to make probing and connecting to different test points easier than ever. Standard Accessory Part Number Quantity Unit Straight Tip 2.74.70.12.003 Pogo Tip 2.74.70.12.004 L-In Adapter 2.74.70.12.005...
  • Page 13 Figure 2 Accessories Straight Tip：The straight tip is rugged and designed for general probing. Fits in either probe socket. SAP1000/SAP2500 Active Probe User Manual...
  • Page 14 It has two sockets on one end and two square pins on the other and may be used for general purpose probing. Straight Pin Leads：These leads have a socket on one end and a square pin SAP1000/SAP2500 Active Probe User Manual...
  • Page 15 Channel ID Clips：They are used to distinguish the oscilloscope channel that the probe is connected to. SAP1000/SAP2500 Active Probe User Manual...

  • Page 16: Probe Operation

    5.1 Connecting the Probe to an Oscilloscope The SAP1000 and SAP2500 probes have been designed for use with Siglent’s SDS5000X and SDS6000A platforms equipped with the SAPBus interface. When you attach the probe output connector to the oscilloscope’s input connector, the oscilloscope recognizes the probe, and provides proper termination.
  • Page 17 ± 8 V. The probe has a DC offset adjustment function, which can adjust the DC offset to eliminate the DC component in the test signal and maximize the performance of the probe. The DC offset adjustment range is ±12 V. SAP1000/SAP2500 Active Probe User Manual...

  • Page 18: Specifications

    With low input capacitance and high input resistance, circuit loading is minimized. With the SAPBus interface, the SAP1000 and SAP2500 become an integral part of the oscilloscope. The probe can be controlled from the oscilloscope’s front panel. The oscilloscope provides power to the probe, so there is no need for a separate power supply or batteries.
  • Page 19 Input resistance Offset range ± 12 V ÷10 Attenuation ratio (DC) Offset accuracy < 3% DC gain accuracy < 3% Input dynamic range ± 8 V Maximum input voltage 20 V (non-destruct) Cable length 130 cm SAP1000/SAP2500 Active Probe User Manual...
  • Page 20 Figure 3 Typical frequency response of SAP2500 Figure 4 Input impedance over frequency of SAP2500 SAP1000/SAP2500 Active Probe User Manual...
  • Page 21 SAP1000/SAP2500 Active Probe User Manual...
