DELUXE HIGH
SECURITY SET
LKM116 INSTRUCTIONS
S&G 8400/8500 DRILL GUIDE
LKM115 INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Lock X-O7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LockMasters X-Lock X-O7

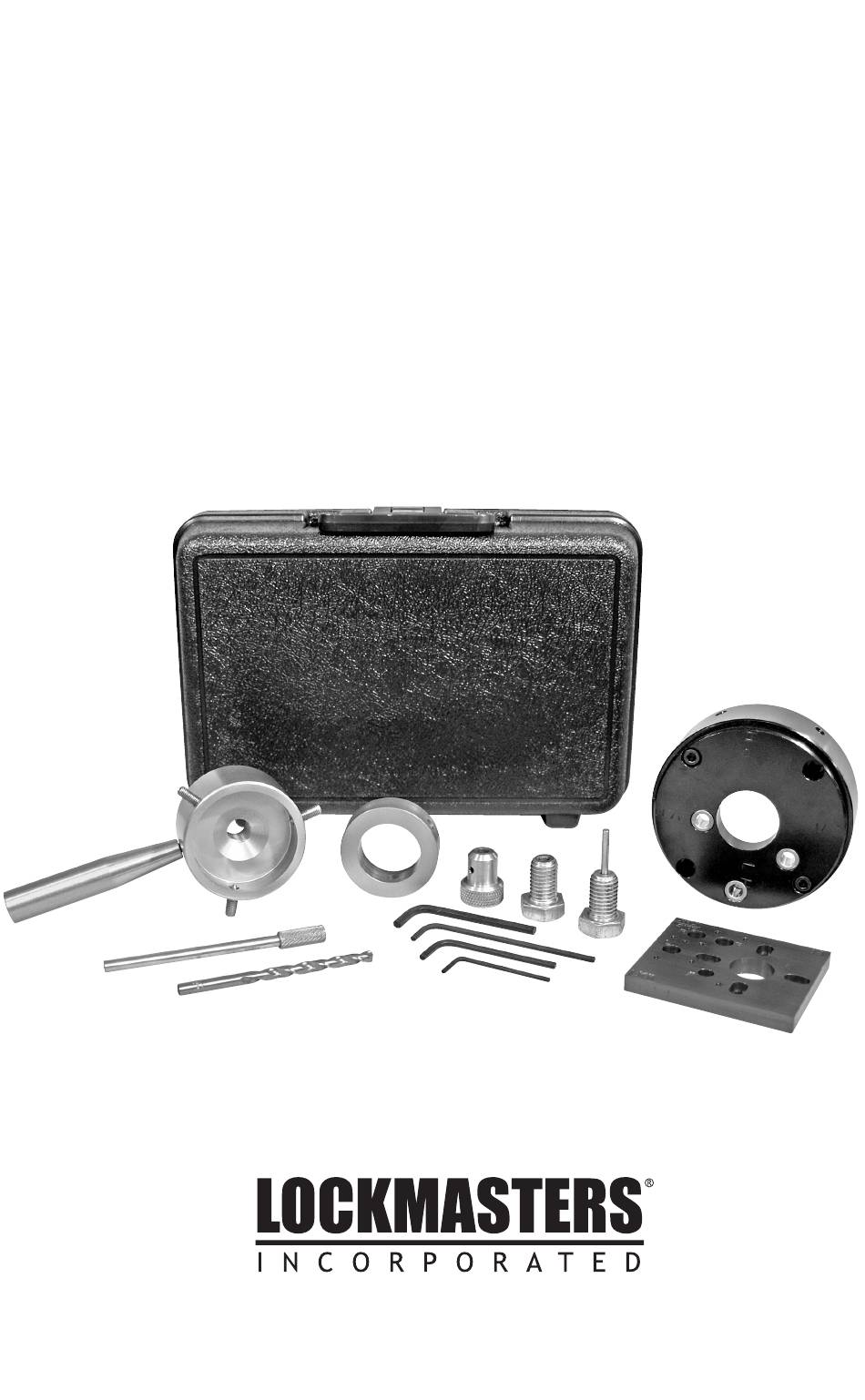

  • Page 1 DELUXE HIGH SECURITY SET LKM116 INSTRUCTIONS S&G 8400/8500 DRILL GUIDE LKM115 INSTRUCTIONS...

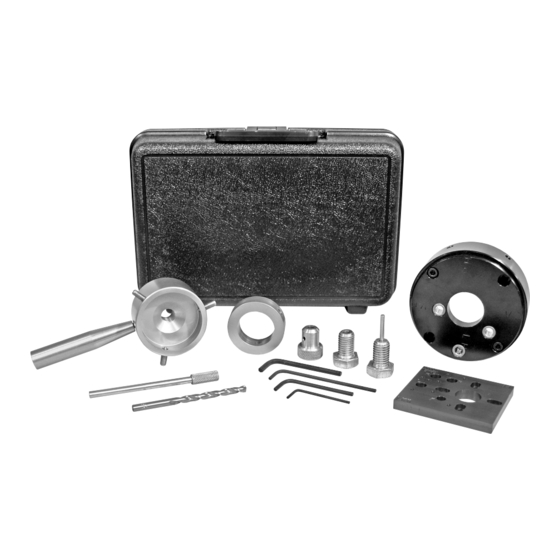

  • Page 2 X-o7 DIal Puller & DrIll GuIDe comPonentS 8400/8500 DrIll GuIDe X-o7 DIal SPacer rInG SPInDle bolt Puller bolt Puller cuP SPInDle Knob cuP hanDle 3/32” , 3/16”, 9/64” & 5/32” fence DrIllInG X-locK DrIll GuIDe jIG & DrIll allen wrencheS The X-Lock Dial Puller &...
  • Page 3 SteP 2 - Place the Puller Cup over the nose of the dial, which will self-center over the spindle. Use the provided 3/16” Allen wrench and firmly tighten the 3-pointed Hex head screws. Tighten pointed Hex head screws until the start biting into the nose of the dial. SteP 3 - Thread the Cup Handle onto the Puller Cup and hand tighten.
  • Page 4 SteP 7 - The distance required to completely remove the dial is approximately 3/8” from the bottom of your drilled hole or 9/16” from the face of the Puller Cup. When the dial has been removed, the Puller Cup can be separated from the dial by loosening the 3-set screws.
  • Page 5 the X-locK DrIll GuIDe oPeratIon The X-Lock drill guide has four drill points mapped out. Hole P targets the pin on the X-O7 lever. This will usually be the primary drill point because the pin is located well inside the diameter of the dial ring, making repair much easier.
  • Page 6 8400/8500 DrIll GuIDe The 8400/8500 Drill Guide is a unique drilling template that has been designed to target the fence, relock and lever screw on Sargent & Greenleaf 8400 and 8500 Series Group I Combination Locks with the Spy-Proof dial and dial rings. INDEX PIN The 8400/8500 Drill Guide attaches directly to the dial ring with 4 hex head...
  • Page 7 tips for Drilling the fence a-fence b-lever Screw All you have to be is close. Close enough that c-relock is to bend the fence towards the center of the drilled hole. With this accomplished, there are a couple of ways to eliminate the fence. You InDeX could try drilling it off freehand, use a hole saw marK...
  • Page 8 2101 John C. Watts Drive • Nicholasville, Kentucky 40356 800.654.0637 • 859.885.6041 • Fax 859.885.7093 www.lockmasters.com • salesinfo@lockmasters.com LKM116_LKM115INST Copyright © 2011 Lockmasters Inc. 10/11...
