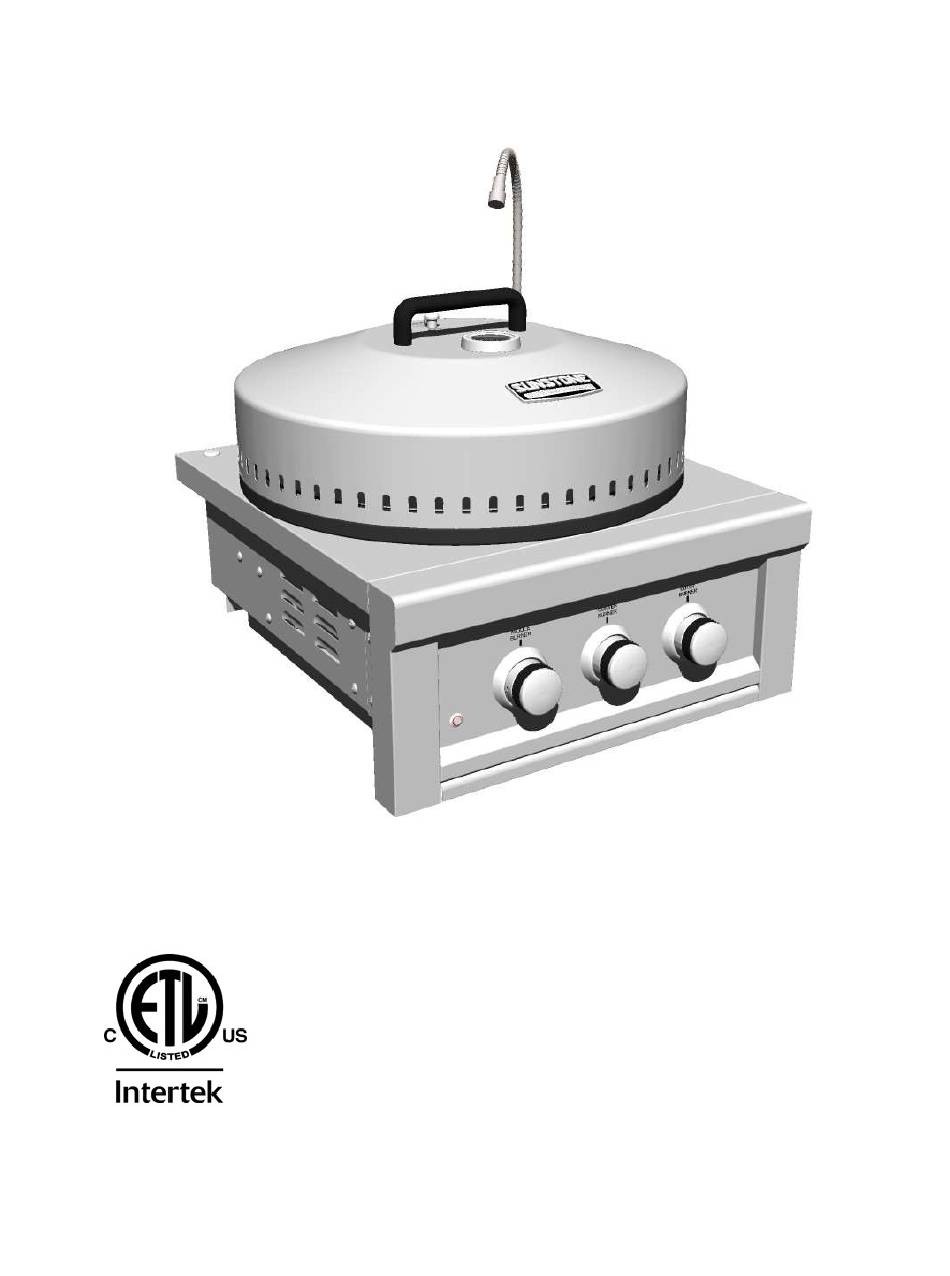

SUNSTONE® POWER CIRQUE™
Read all instructions before you operate your grill.
3174816
To installer or person assembling grill:
To consumer:
www.sunstonemetalproducts.com
Save these instructions!
Conforms to
ANSI STD Z21.58-2018
Certified to CSA STD 1.6-2018
Outdoor Cooking Gas Appliances
Keep this manual for future reference.
Leave this manual with grill for future reference.
Advertisement
Table of Contents
Related Manuals for SUNSTONE POWER CIRQUE SUNCHSZ30
Summary of Contents for SUNSTONE POWER CIRQUE SUNCHSZ30
- Page 1 SUNSTONE® POWER CIRQUE™ Read all instructions before you operate your grill. Save these instructions! Conforms to ANSI STD Z21.58-2018 Certified to CSA STD 1.6-2018 Outdoor Cooking Gas Appliances 3174816 Leave this manual with grill for future reference. To installer or person assembling grill: Keep this manual for future reference.
- Page 2 Welcome & Congratulations Congratulations on your purchase of a new Sunstone grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain for optimum performance and longevity.
-
Page 3: Table Of Contents
INDEX DIRECTORY BURNER PARTS LIST SUN24PCB ----------------------- HAZARDS & WARNING SIGNS BURNER INSTALLATION Product Detail --------------------- 3 ATTENTION: Indicates a potentially hazardous Cut-Out Detail --------------------- situation which, if not avoided, may result in minor or GFCI Transformer----------------- moderate personal injury, or property damage. ---------- Install &... - Page 4 START-UP CHECKLIST ATTENTION: Never operate the grill unattended. EXPLOSION: When Igniting the Grill – Always keep the Hood Open. “FIRST TIME STARTUP CHECKLIST” Transformer Electrical Plug is properly installed. Installation of the proper gas type and regulator settings. The proper Regulator & Gas Connection is complete. Minimum 24”...
-
Page 5: Burner Parts List
BURNER PARTS LIST – PARTS DIAGRAM PAGE 1 MATERIAL SPECIFICATIONS 18 Gauge 304 Stainless steel for 19" Burner. 16 Gauge 304 Stainless steel for Griddle. 20 Gauge 304 Stainless steel for Hood 18 Gauge 304 Stainless steel body and control panel, ... - Page 6 PAGE 2 BURNER PARTS LIST – PARTS DIAGRAM...
-
Page 7: Burner Installation Product Detail
BURNER INSTALLATION – PRODUCT DETAIL PAGE 3 Product Details The Power Cirque Burner consists of multiple insert options, each with its own unique purpose and functionality. The Large cover, 20” Dia. Three-in-one Cooking Grid, and 15” Dia. Pizza Stone are all included with the base model. -
Page 8: Cut-Out Detail
PAGE 4 BURNER INSTALLATION – CUT-OUT DETAIL Cut-Out Details It is always best to first have the Burner On-Site, if you cannot make sure to follow all Cut-Out instructions exactly as shown. The Burner is SELF-RIMMING, meaning the lip of grill rests on top of the counter edge around the cut-out with the front of grill which is Free Hanging from countertop. -
Page 9: Gfci Transformer
PAGE 5 BURNER INSTALLATION – GFCI TRANSFORMER : Use only with a Ground-Fault Circuit Interrupter - GFCI protected Outlet LIVE CIRCUIT with this Power Burner. : Use only extension cords approved for outdoor use marked with W-A and VOLTAGE rated for the power of this appliance. 1. -
Page 10: Install & Placement
PAGE 6 BURNER INSTALLATION – INSTALL & PLACEMENT Install & Placement Your grill is SELF-RIMMING, meaning the lip of grill rests on top of the counter edge around the cut-out with the front of grill which is Free Hanging from countertop. Because of this, there is No Need for any Trim-Kit like with many other grills in the market. -
Page 11: Open Area
PAGE 7 BURNER INSTALLATION – OPEN AREA Open Area Counter-Top Install 1. For breezy days, be careful not to leave the cover on for more than 15 minutes, when the burners are on HIGH Heat. (Never leave grill unattended when in operation) 2. -
Page 12: Recessed Position
PAGE 8 BURNER INSTALLATION – RECESSED POSITION Recessed Position Install When installed as Recessed Position, this is most often used for Large Crock Pot Cooking, by lowering the height of the cooktop this makes it easier to maneuver heavy pots on and off. We recommend elevating the counter 8”... -
Page 13: Island Location
ISLAND LOCATION – OVERHEAD STRUCTURE PAGE 9 Overhead Structure Definition: Structure built above Appliance that is sometimes attached to the home’s exterior outside wall or roof and there is a Minimum of “Two” adjacent sides which are open with outside exposure. Minimum Distances to Combustible Materials or other Appliance ONLY, Non-Combustible materials do not apply! (A) From Floor to Overhead Combustible Structure... -
Page 14: Enclosed Install
ISLAND LOCATION – ENCLOSED INSTALL PAGE 10 Enclosed Installation Definition: Structure built above Appliance that is attached to the home’s exterior outside wall, roof or is inside a separate structure like outdoor room and there is a Minimum of “One” Side open with outside exposure. - Page 15 ISLAND LOCATION – ENCLOSED INSTALL PAGE 11 The Table below is referencing Enclosed Install Illustration on page 10 Minimum Distances to Combustible Materials or other Appliance ONLY, Non-Combustible materials do not apply! (A) From Appliance to Vent Hood Width 4” Min. Clearance (B) From Counter to Outdoor Vent Hood 36"...
-
Page 16: Installation Overview
GAS SETUP – INSTALLATION OVERVIEW PAGE 12 CAUTION: Gas conversion kits are available from Customer care by dialing 888-934-9449. When ordering gas conversion kits, have the model number, and the type of gas (natural or LP). Use only the gas pressure regulator supplied with this appliance. This regulator is set for an outlet pressure of 11 inches water column. -
Page 17: Large Capacity Lp Tanks
GAS SETUP – LARGE CAPACITY LP TANKS PAGE 13 ATTENTION: If you have a Side Yard Propane Tank, you MUST have additional Medium Pressure Regulator located at the Grill. If you do not serious bodily harm may result or damage to the grill and island structure from HIGH Heat extremes. -
Page 18: Medium Capacity Lp Tanks
GAS SETUP – MEDIUM CAPACITY LP TANKS PAGE 14 Medium Capacity LP Tank The Type 1 connection system has the following features: The system will not allow gas to flow until a positive connection has been made. NOTE: The cylinder control valve must be turned off before any connection is made or removed. -
Page 19: Natural Gas Install
GAS SETUP – NATURAL GAS INSTALL PAGE 15 NG Gas Hook-up Natural Gas grills is designed to operate on Natural Gas ONLY, at a pressure regulated at 7” water column (W.C.) when equipped with the correct natural gas orifices on the valves and a NG regulator on the supply line regulated at the residential meter. -
Page 20: Burner Start-Up Lighting The Power Burner
BURNER START-UP – LIGHTING THE POWER BURNER PAGE 16 ATTENTION: Always take a leak test before lighting the grill to prevent a possible fire or explosion. DO NOT smoke while leak testing. Extinguish all open flames. Never leak test with an open flame or risk of serious harm to self or others. -
Page 21: Warranty
7. No one has the authority to add to or vary SUNSTONE POWER CIRQUE BURNER warranty, or to create for SUNSTONE METAL PRODUCTS LLC. any other obligation or liability in connection with the sale or use of its products.
