2-16 Disassemble Fan
Module

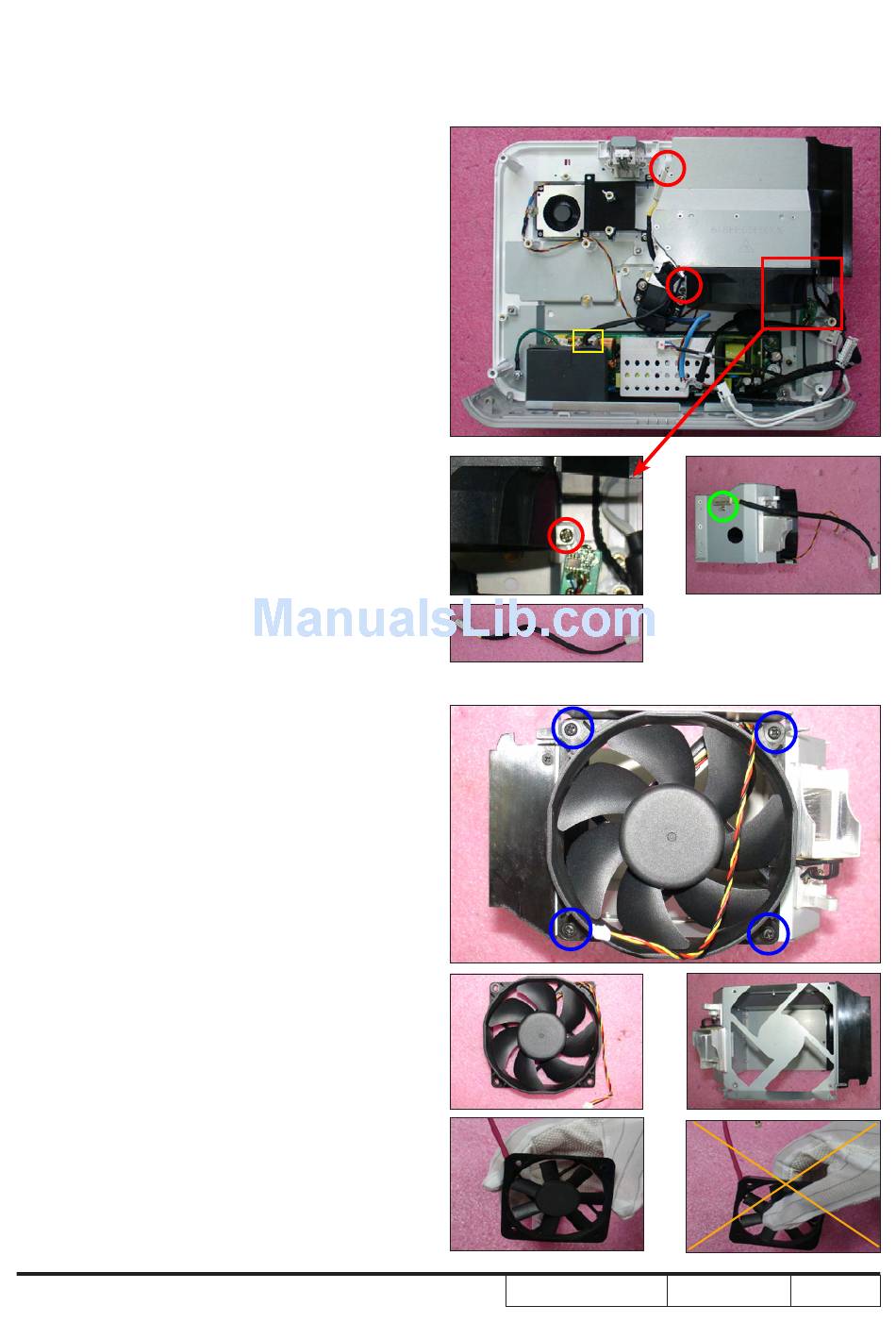

1. Unplug 1 connector (as yellow square).
2. Unscrew 3 screws (as red circle) to
disassemble the Fan Module.
3. Unscrew 1 screw (as green circle) to
disassemble the Thermal Switch.
4. Unscrew 4 screws (as blue circle) to
separate System Fan and Fan Shielding.
Note: - Take the Fan Module as the right
gesture.
System Fan
the right gesture
H7530/H7530D
Fan Shielding
the wrong gesture
