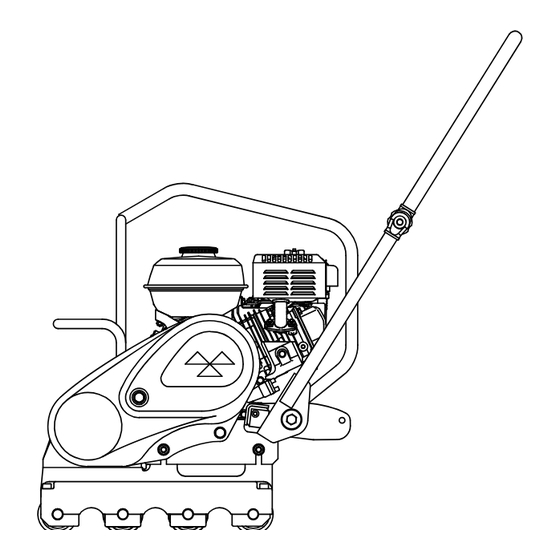

- Page 1 INTER-LOCKING BLOCK PLATE COMPACTOR MVB-85H MVB-152H OPERATION MANUAL 402-13602 *402-13602* http://www.mikasas.com...
-
Page 2: Table Of Contents
TABLE of CONTENTS 1. INTRODUCTION ............2. MACHINE OVERVIEW ..........3. WARNING SIGNS ............4. CAUTIONS FOR SAFETY ........5. SPECIFICATIONS ............6. APPEARANCE ............7. INSPECTION BEFORE OPERATION ....10-11 8. OPERATION ..............9. STOPPING THE MACHINE ........10. TRANSPORTATION ........... 11. -
Page 3: Introduction
For inquiries about repair parts, parts lists, service manuals, and repairs, please contact the store where you purchased the product, our sales office, or the Mikasa Parts Service Center. For parts lists, please visit our homepage (https://www.mikasas.com) where you can access Mikasa WEB parts lists. -
Page 4: Warning Signs
3. WARNING SIGNS The triangle shaped marks used in this manual and on the decals stuck on the main body indicate common hazards. Be sure to read and observe the cautions described. Warning labels indicating hazards to humans and to equipment. Denotes an extreme hazard. - Page 5 4.2 Refueling Precautions DANGER Always refuel in a well ventilated area. Make sure to stop the engine and wait until the engine cools down when refueling. Select a flat surface area with no flammable material around for refueling. Be careful not to spill the fuel.
- Page 6 4.6 Lifting Precautions DANGER Before lifting, check the machine parts (especially the hook and shock absorbers) for any damage and loosened or missing bolts. Stop the engine and close the fuel cock during lifting. Use a sufficiently strong wire rope. For lifting, use only the lifting hook, and do not lift at any other part.
- Page 7 The figure shows MVB-152H. 7 (Only MVB-152H) Parking Brake (Only MVB-152H) : ENGAGE : RELEASE EXP / EU PART No. PART NAME Q’TY REMARK SERIAL NO.PLATE / MVB-85H MVB-85H SERIAL NO.PLATE / MVB-152H MVB-152H 9202-25680 DECAL,PARKING BRAKE MVB-152H 9202-25580 DECAL,MODEL(GR)/MVB-152H MVB-152H (GREEN) 9202-25590...
- Page 8 4.10 Descriptions Of Symbols Used On Warning Decals P/N 9209-00090 DECAL, SET /MVC, MCD /EXP,EU includes NPA-1473, 1474, 1479 and 1480. Do not use. (For cutters) NPA-1480 NPA-1473 NPA-1479 NPA-1474 Do not use. (For cutters) Lethal Exhaust Gas Hazards Be careful not to approach hazard source. Carbon monoxide poisoning may occur if the During the operation, pay sufficient attention to exhaust gas is inhaled.
-
Page 9: Specifications
5. SPECIFICATIONS Model MVB-85H MVB-152H Weight Operating Weight Dimensions Overall Length 1038 Overall Width Overall Height (Handle) Rubber Roll Size Diameter Width Number Perfomance Vibrating frequency 93 Hz (5600 V.P.M.) 97 Hz (5800 V.P.M.) Centrifugal force 10.1 kN (1030 kgf) 15.2 kN (1550 kgf) -
Page 10: Appearance
6. APPEARANCE MVB-85H MVB-152H... - Page 11 (MVB-152H Only) (Vibrator) Vibrator Rubber Roll Lifting Grip Throttle Lever Muffler Fuel Tank Cap Fuel Tank Air Cleaner Lifting Grip Choke Lever Fuel Valve Lever Lifting Grip Oil Gauge The figure shows MVB-85H. Recoil Starter Drain Plug Engine (Engine) ON/OFF Switch...
-
Page 12: Inspection Before Operation
7 INSPECTION BEFORE OPERATION Part inspection sheet before work start Check point Check item Visual inspection Flaw, Deformation, Breakage, Crack Fuel tank Leak, Level, Dirt Fuel system Leak Fuel filter Dirt Engine oil Leak, Level, Dirt Vibrator oil Leak, Level, Dirt V-belt for vibrator Wear, Crack, Tension Rubber Roll... - Page 13 If the V-belt tension is not proper, adjust the 7.7 Rubber Roll Check V-belt tension. Slacken the four bolts fixed the engine and turn the nut for the V-belt Check that the rubber rolls rotates smoothly tension adjuster until the V-belt tension is b y m o v i n g t h e m a c h i n e f o r w a r d a n d correct.
-
Page 14: Operation
8. OPERATION Pull the starter grip lightly until you feel 8.1 Starting resistance. Then, pull it briskly in the M o v e t h e f o l d i n g h a n d l e f r o m s t o r e d direction of the arrow as shown below. -
Page 15: Stopping The Machine
8.2 Operation CAUTION Always move the throttle lever quickly ● WARNING without hesitation, because increasing the During operation, pay sufficient attention to engine speed slowly causes the clutch ● dangerous objects and obstacles in the slipping. direction of your work and surrounding area. When using the machine on sloping ground, Push and pull the handle to move forward ●... -
Page 16: Transportation
10. TRANSPORTATION 10.1 Loading And Unloading WARNING Make sure there is no breakage of guard ● Lifting Hook frame and shock absorbers nor loosened or missing bolts. Always stop the engine when lifting. ● Use an intact lifting cable (wire or rope) without any deformation with sufficient strength. -
Page 17: Regular Check And Adjustment
12. REGULAR CHECK AND ADJUSTMENT 12.1 Inspection And Maintenance Schedule Table Inspection interval Check parts Check items Remarks Daily Appearance Flaw, Deformation, Breakage, Crack (Before starting) Fuel tank Leak, Level, Dirt Gasoline Fuel system Leak, Dirt, Clog Air cleaner Dust, Dirt Engine oil Leak, Level, Dirt Engine oil... - Page 18 12.4 Check / Change The V-belt CAUTION Always stop the engine before maintenance E v e r y m o n t h o r e v e r y 2 0 0 h o u r s o f ●...
-
Page 19: Trouble Shooting
13. TROUBLE SHOOTING 13.1 Gasoline Engine (1) Starting problems Gap bridging on the spark plug. Electricity Carbon or oil fouling on the spark plug. reaches the high Short circuit due to faulty insulation of the spark plug. voltage cable. Fuel is supplied, but Faulty gap of the spark plug. - Page 20 13.2 Main Body Insufficient the engine output. Improper operating speed of the engine. Slipping of the clutch. Slipping of the V-belt. Vibration is weak. Damage or deterioration of the shock absorber. Too much the vibrator oil. Failure inside the vibrator. The bearing of the roll is damaged.
- Page 22 MIKASA SANGYO CO., LTD. 1-4-3,Kanda-Sarugakucho,Chiyoda-ku,Tokyo,101-0064,Japan PRINTED IN JAPAN...
