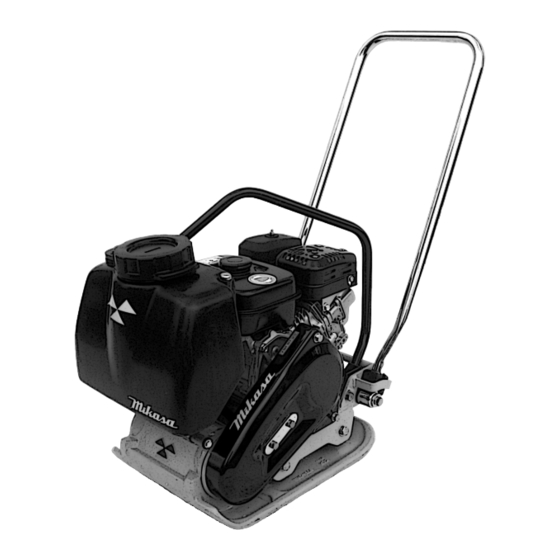

PLATE COMPACTOR
Contents of Declaration of Conformity
Please refer the
EC DECLARATION OF CONFORMITY
MVC
MVC
INSTRUCTION MANUAL
in this manual as well.
- 40G
- 50GB
W e t h a n k y o u f o r s e l e c t i n g
Mikasa Plate Compactor. For
your safe and proper operation,
please read this manual and be
always sure to keep it ready for
reference.
Original
402-04808
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mikasa MVC-40G
Summary of Contents for Mikasa MVC-40G
-
Page 1: Instruction Manual
Contents of Declaration of Conformity W e t h a n k y o u f o r s e l e c t i n g Mikasa Plate Compactor. For your safe and proper operation, please read this manual and be... - Page 2 2) Manufacturer’s name and address. 4-3, Sarugaku-cho 1 chome, Chiyoda-ku, Tokyo101-0064, Japan Yoshiharu Nishimaki, engineer 3) Name and address of the person who keeps the R. & D. Division, Mikasa Sangyo Co., Ltd. technical documentation. Shiraoka-machi, Saitama, Japan 4) Type: Vibratory Plates...
-
Page 3: Table Of Contents
TABLE of CONTENTS Preface Applications, Warnings, Structure and Power Transmission Warning Symbols Safety Precautions General precautions Refueling precautions Location and ventilation precautions Precautions before starting Precautions during work Lifting precautions Transportation and Storage precautions Maintenance precautions Labeling Position 4.10 Description of symbols used warning labels Specifications Machine specifications Engine specifications... -
Page 4: Preface
For inquiries about repair parts, parts lists, service manuals, and repairs, please contact the store where you purchased ● the product, our sales office, or the Mikasa Parts Service Center. For parts lists, please visit our homepage at: http://www.mikasas.com/ where you can access Mikasa WEB parts lists. -
Page 5: Warning Symbols
Before inspection and maintenance work, stop the engine, and do your work on ● a flat surface area. If a cell is attached, remove the battery wiring before your work. Mikasa does not accept any responsibility for accidents caused by remodeling or ● rework done on the machine. 4.2 Refueling precautions... -
Page 6: Location And Ventilation Precautions
4.3 Location and Ventilation precautions DANGER Do not run the machine in an unventilated location, such as indoors or inside a ！ ● tunnel. The exhaust gas from the engine contains toxic gases such as carbon monoxide and is very hazardous. Do not operate the machine near open flames. -
Page 7: Maintenance Precautions
4.8 Maintenance precautions Appropriate maintenance is required to ensure safe and efficient operation of the ● WARNING ！ machine. Always pay attention to the machine’s condition and keep it in good condition. Pay special attention to the parts used for lifting, if they are not maintained properly, it might result in a serious accident. -
Page 8: Labeling Position
DEAL,LIFTING POSITION NPA-1474 9209-00090 DEAL,CAUTION ICONS Warnig labels NPA-1479 9209-00090 DECAL,ENGINE HANDLING /GS Starting, and stopping NPA-1480 9202-00870 DECAL, WITHOUT ENGINE OIL NPA-87 9201-09530 DECAL,MIKASA(125MM)YELLOW NP-953 9201-00920 DECAL, MIKASAMARK 50GB/ WATER TANK NP-92 9201-05070 DECAL,MIKASA MARK 125MM 50GB/ WATER TANK NP-507... -
Page 9: Description Of Symbols Used Warning Labels
4-10. Descriptions of symbols used on warning labels P/N 9209-00090 DECAL, SET /MVC, MCD /EXP,EU Do not use. (For cutters) NPA-1480 ⑨ NPA-1473 NPA-1479 ① ② ③ ⑩ ④ ⑤ ⑥ ⑦ ⑧ NPA-1474 Do not use. (For cutters) Danger: poisonous exhaust gas ①... -
Page 10: Specifications
5.Specifications 5.1 Machine specifications MVC-50GB MVC-40G Model Folding Handle With Water Tank Engine model ← Robin EH09-2F ← Robin EX13 Overall Length ← ← Overall Width ← Overall Height ← ← 290 x 420 Plate Size (W X L) 345 x 460 Operating Weight ←... -
Page 11: Appearance
. 6. Appearance 6.1 Overall Dimensions 6.1.1 MVC-40G 855 ( Folding Handle: 865) 6.1.2 MVC-50GB 865 ( Folding Handle: 880) Dimensions may change without notice. -
Page 12: Control Unit Positions And Names
6.2 Control Unit Positions and Names MVC-40G 1. Starter Grip 2. Engine ON/OFF Switch 3. Choke Lever 4. Speed Control Lever 5. Fuel Cock 6. Handle Bar MVC-50GB 7. Folding Handle 8. Lifting Hook 9. Vibrating Plate 10. Vibration Case... -
Page 13: Inspection Before Operation
7. Inspection Before Operation DANGER ！ Conduct inspection while the engine is stopped. If you get caught in the rotating parts, you may suffer serious damage. Conduct inspection after making this machine level and checking that the body does not move. Refer to "Regular Check and Adjustments"... -
Page 14: Operation
Use engine oil SAE10W-30 as lubrication oil. Recommended oil quantity for MVC-40G/50G is 300cc. Remove the oil plug in Vibrator Assembly and check the oil level. Make sure the oil quantity is set at level of plug hole for checking. -
Page 15: Operation
Turn the stop switch to “ON (I)” position. (Fig.4) Engine Switch “ON” Open the speed control lever half. (Fig.3-1, 3-2) (RUN) When it is cold or the engine does not start easily, close the choke lever. (Figs. 3-1 , 3-2) Fig.4 Grip the starting knob of the recoil starter. -
Page 16: Stopping The Machine
9. Stopping the machine When you finish the work and stop the engine, return the speed control lever to the low speed position, and Engine switch keep the engine running at low speed for 3-5minutes. When the temperature of the engine has decreased, stop the engine. -
Page 17: Regular Check And Adjustments
12. Regular Check and Adjustments 12.1 Inspection and maintenance schedule table Check frequency Check parts Check items Oils Daily Appearance Flaw, deformation (before starting) Fuel tank Leakage Fuel system Leakage Leakage, oil level, dirt Engine oil Engine oil Shock absorber Crack, damage, wear Leakage Vibrator oil... -
Page 18: Changing The Engine Oil
12.2 Changing the engine oil Perform the first engine oil change after 20 hours of operation, then change at every 100 hours. 12.3 Cleaning the air cleaner When the air cleaner element becomes dirty, the engine does not start smoothly, and sufficient output can not be obtained. -
Page 19: Troubleshooting
13. Troubleshooting 1. Gasoline engine (1) Starting problem Bridging Spark Plug Carbon accumulated on Spark Plug Electricity reaches Short circuit due to insulation problems of to High Voltage Cable Spark Plug Fuel is supplied, but Inappropriate gap of Spark Plug Spark Plug does not ignite Short circuit of Stop Switch... - Page 20 (402-04801)08-07-00(BSC)
