D-ILA
PROJECTOR

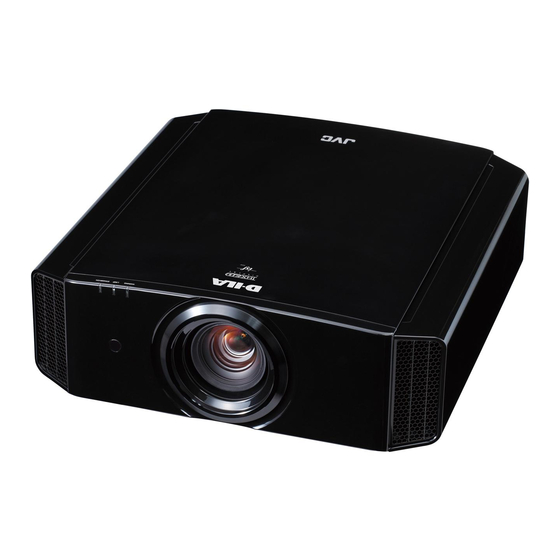

DLA-X9900BE
DLA-X7900BE/WE
DLA-X5900BE/WE
http://manual3.jvckenwood.com/projector/mobile/global/
The Mobile User Guide can be viewed on mobile internet devices including
smartphones and tablets.
For Customer use :
Enter below the serial No. which is
located on the side of the cabinet.
Retain this information for future
reference.
Model No.
DLA-X9900BE / DLA-X7900BE /
DLA-X7900WE / DLA-X5900BE /
DLA-X5900WE
Serial No.
Not suitable for household room illumination.
MODE 1
MODE 2
MODE 3
SETTING MEMORY
ANAMO.
HDR
COLOR
GAMMA
MODE
PROFILE
SETTINGS
C.M.D.
Mobile User Guide
Pour utilisation par le client :
Entrerci-dessous le N°de série qui
est situé sous le boîtier. Garder
cetteinformation comme référence
pour le futur.
N° de modèle
DLA-X9900BE / DLA-X7900BE /
DLA-X7900WE / DLA-X5900BE /
DLA-X5900WE
N° de série
INSTRUCTIONS
Instrucción para el cliente :
Introduzca a continuación el nº de serie
que aparece en la parte inferior lateral
de la caja. Conserve esta información
como referencia para uso ulterior.
Modelo Nº
DLA-X9900BE / DLA-X7900BE /
DLA-X7900WE / DLA-X5900BE /
DLA-X5900WE
Nº de serie
B5A-2360-25
Advertisement
Chapters
Table of Contents
Related Manuals for JVC DLA-X9900BE
Summary of Contents for JVC DLA-X9900BE
- Page 1 Conserve esta información reference. pour le futur. como referencia para uso ulterior. Model No. DLA-X9900BE / DLA-X7900BE / N° de modèle DLA-X9900BE / DLA-X7900BE / Modelo Nº DLA-X9900BE / DLA-X7900BE / DLA-X7900WE / DLA-X5900BE /...
-
Page 2: Safety Precautions
Safety Precautions IMPORTANT INFORMATION About the installation place This product has a High Intensity Do not install the projector in a place that cannot Dis-charge (HID) lamp that contains support its weight securely. mercury. Manage in accord with If the installation place is not sturdy enough, the disposal laws. - Page 3 IMPORTANT SAFEGUARDS Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your Electrical energy can perform many useful functions. product dealer or local power company. This unit has been engineered and manufactured to This product is equipped with a three-wire plug.
- Page 4 For replacement, please consult your dealer, or the nearest Do not use optical instruments (such as magnifying glass or authorized JVC service center. reflector) viewing the laser output. It may pose an eye hazard.
- Page 5 THIS APPARATUS MUST BE EARTHED. Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVCKENWOOD Deutschland GmbH Konrad-Adenauer-Allee 1-11, 61118 Bad Vilbel, GERMANY...
- Page 6 ENGLISH Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.
- Page 7 Location information of the labels As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015...
-
Page 8: Table Of Contents
Contents Getting Started Fine-tuning the Image Quality ....... 36 Adjusting the Output Value of the Projected Image Safety Precautions ..........2 (Gamma) ............36 Accessories/Optional Accessories ......9 Fine-tuning to the Preferred Gamma Setting ..37 Check the Accessories ........9 Reducing the After-image of Fast-moving Images Optional Accessories ........... -
Page 9: Accessories/Optional Accessories
Accessories/Optional Accessories Check the Accessories Lens cover G ..............1 piece * It is attached to the main unit at the time of shipment. Remote control ............... 1 piece AAA-size batteries (for operational check) ......2 pieces Power cord (for USA) (about. 2 m) ......... 1 piece Power cord (for UK) (about. -
Page 10: Controls And Features
Controls and Features Main Unit - Front A Lens D Indicator This is a projection lens. Do not look through the lens Refer to “Indicator Display on the Main Unit”P. 77. while an image is projected. E Exhaust vent B Lens cover E T Warm air is discharged to cool down the internal temperature. -
Page 11: Main Unit - Rear
Main Unit - Rear I Input terminals L Remote sensor (rear) In addition to the video input terminal, there are also Please aim the remote control at this area when using other connection terminals for devices such as controllers and optional equipment. * There is also a remote sensor at the front. -
Page 12: Main Unit - Input Terminals
Main Unit - Input Terminals Enlarged View of Rear Face A [HDMI 1] input terminal F [TRIGGER] terminal (E) Output terminal for DC 12 V, 100 mA power supply. It B [HDMI 2] input terminal is used for sending output signals to control devices such as an elevating screen that is equipped with a For connecting to devices that support HDMI output. -
Page 13: Remote Control
Remote Control A B [STAND BY] O [PICTURE MODE] Switches the picture mode. Turns off the power. (P. 22) (P. 30) B C [ON] Press [NATURAL], [CINEMA] or Turns on the power. (P. 21) [HDR] to switch to the respective C [INPUT] picture mode. -
Page 14: Loading Batteries Into The Remote Control
Loading Batteries into the Remote Control If the remote control has to be brought closer to the unit Loading the batteries to operate, it means that the batteries are wearing out. Replace the batteries with new ones (AAA). Insert the batteries according to the t s marks. Be sure to insert the s end first. -
Page 15: Installing The Projector
Installing the Projector Precautions during Installation Please read the following carefully before installing this Using the projector unit. This unit uses a projection lamp, which will heat up when in use. Do not install at the following Please refrain from projecting in the following circumstances. -
Page 16: Precautions During Mounting
Take the necessary actions to prevent the main unit from falling off such as during an earthquake. Regardless of the warranty period, JVC is not liable for When this unit is to be mounted to a fixed position for any product damage caused by mounting the unit with use, install it horizontally. -
Page 17: Adjusting The Position
Adjusting the Position Adjusting the elevation angle of the projector Adjusting the position of the image The height and inclination of the unit (0 to 5 mm) can be By using the lens shift feature of this unit, you can shift adjusted by turning the feet. -
Page 18: Connecting The Projector
Connecting the Projector Do not turn on the power until connection is complete. The connection procedures differ according to the device used. For details, please refer to the instruction manual of the device to be connected. This projector is used for projecting images. To output the audio of connected devices, please connect a separate audio output device, such as an amplifier or speaker. -
Page 19: Connecting To The Lan Terminal
Connecting via HDMI-DVI conversion cable Desktop PC, etc. This Unit To [HDMI 1] or [HDMI 2] input terminal DVI Output Terminal HDMI-DVI Conversion Cable (Sold Separately) If noise occurs, move the desktop PC away from this unit. If the video is not displayed, try to reduce the length of the cable or lower the resolution of the video transmitting equipment. -
Page 20: Connecting To The Trigger Terminal
Connecting to the TRIGGER Terminal Screen This Unit To [TRIGGER] Terminal Trigger Input Terminal (Ø3.5) Trigger Cable (Sold Separately) Do not use it to supply power to other devices. Connecting to the audio terminal of another device may cause the device to malfunction or break down. Using beyond the rated value will cause the unit to malfunction. -
Page 21: Viewing Videos
Viewing Videos MEMO LAMP WARNING STANDBY/ON When you are using G, be sure to remove the lens cover. Connect the power cord, and ensure that the “STANDBY/ON” indicator lights up in red. Turn on the power Remote control: press the C [ON] button Projector unit: press the A [STANDBY/ON] button Remote Control The “STANDBY/ON”... - Page 22 Turn off the power Remote control: press the B [STAND BY] button Projector unit: press the A [STANDBY/ON] button While the “Are you sure you want to turn off?” message is displayed, press the button again. The lamp turns off, and the “STANDBY/ON” indicator switches from a green light to a red blinking light. After the light goes off, the fan will run for about 100 seconds to cool down the lamp (Cool-down mode).
-
Page 23: Adjusting The Projector Screen
Adjusting the Projector Screen Adjusting the Lens According to the Projection Position Press the [LENS CONTROL] button, and use the [JKH I] keys to adjust Focus, Zoom (screen size), and Shift (screen position) Focus MODE 1 MODE 2 MODE 3 SETTING MEMORY ANAMO. -
Page 24: Saving And Retrieving Adjustment Settings
Saving and Retrieving Adjustment Settings The Focus, Zoom, and Shift settings can be saved or retrieved, so you can switch easily to a different aspect ratio (screen size) according to the image. In a state where no adjustment settings are saved (factory default), only “Lens Memory Save”... - Page 25 Retrieving an adjustment data Press the [MENU] button to display the menu and select “Installation”"“Lens Control”"“Lens Memory Select” The data can also be retrieved using the direct keys on the remote control. The [MODE1] to [MODE3] keys correspond to MEMORY 1 to MEMORY 3. Installation >>...
-
Page 26: Setting Screen Correction
Setting Screen Correction Set Screen Adjust MEMO By selecting the optimal correction mode according to the characteristics of the screen in You can utilize the optional optical sensor and use, corrections can be performed to reproduce dedicated projector calibration software to make finer natural images with balanced colors. -
Page 27: Adjusting The Screen Size (Aspect)
Adjusting the Screen Size (Aspect) The screen size of the projected image can be adjusted Example of input image and screen size optimally according to the original screen size (aspect) that has been input. HDMI Signal Input Press the [MENU] button to display Output Image Setting the menu... -
Page 28: Viewing 3D Movies
Viewing 3D Movies By using the 3D Glasses (PK-AG1, PK-AG2, or PK-AG3) and 3D Synchro Emitter (PK-EM1 or PK-EM2), both sold separately, you can enjoy 3D video images. For 3D Glasses and 3D Synchro Emitter that are compatible with this unit, please refer to “Optional Accessories”P. -
Page 29: Viewing 3D Movies
Viewing 3D Movies Connect this unit to a 3D-compatible Format Description HDMI device, and turn on the power Auto Automatically determines and to play back the 3D video image sets the format upon receiving 3D For details on how to play back 3D video images, signal. -
Page 30: Selecting An Image Quality According To The Video Type
Selecting an Image Quality According to the Video Type Setting the Picture Mode You can adjust the image quality according to the type of video image you are viewing. Press the [PICTURE MODE] button, and use the [JK] keys to select and set the desired “Picture Mode” You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting “Picture Adjust”"“Picture Mode”. -
Page 31: Setting The Color Profile
Setting the Color Profile By setting the “Color Profile” (color space information) according to the “Picture Mode”, you can fine-tune the image quality according to the movie you are viewing. Configure “Picture Mode” (P. 30), then select “Picture Adjust”"“Color Profile” in the menu The selectable “Color Profile”... - Page 32 Cinema Standard Color space of the HDTV standard. *2 Cinema 1 Original JVC cinema-specific color gamut that achieves a balance between increased — brightness and color vividness. Cinema 2 Color space that is close to that of the DCI standard.
-
Page 33: Adjusting To The Preferred Color (Color Management)
User 1 to User 5 Standard Color space of the HDTV standard. *2 Cinema 1 Original JVC cinema-specific color gamut that achieves a balance between increased brightness and color vividness. Cinema 2 Color space that is close to that of the DCI standard. - Page 34 A Select “Color Selection”, and press the H I keys to Adjustable range when select the color to adjust Axis Position (Image) Red is selected: ± 30° For color adjustment, select the color from the Green Yellow with Red as the center following: “Red”, “Yellow”, “Green”, “Cyan”, “Blue”, Counterclockwise rotation: + “Magenta”.
-
Page 35: Adjusting Movies For Increased Expressiveness (Multiple Pixel Control)
Adjusting Movies for Increased Expressiveness (Multiple Pixel Control) The new image-processing algorithm developed by JVC Images are displayed in the original resolution (2K) helps to create a natural impression that is sharper at when “4K e-shift” is set to “Off”. -
Page 36: Fine-Tuning The Image Quality
Fine-tuning the Image Quality Adjusting the Output Value of the Projected Image (Gamma) You can adjust the output value of the projected image with respect to the video signal input. Example of gamma adjustment The overall image appear brighter with respect to the original image, making the dark areas more visible. Input Value The photos are for illustrative purposes only. -
Page 37: Fine-Tuning To The Preferred Gamma Setting
Gamma Settings for Different “Picture Mode” E T Picture Mode Selectable Settings Description Film When “Color Profile” is Film 1 Image is close to the characteristics of Eastman Kodak set to “Film 1” Company movie films. Film 2 Places more emphasis on the gradation compared to the “Film 1”... - Page 38 Adjust to the preferred setting Select the color to be adjusted from “Color Selection” and adjust the “Picture Tone”, “Dark Level” and “Bright Level”. Adjustment item and its setting Item Description Setting Color Selection For selecting the color for adjusting “Picture Tone”, White / Red / Green / Blue “Dark Level”...
- Page 39 List of selectable “Correction Value” according to “Picture Mode” E T Picture Mode Correction Value Film Film 1 Film 2 Import Cinema Animation Natural User 1 to User 5 Normal HDR(ST.2084) HDR(Hybrid Log) Import When “Correction Value” is set to “Import” Selecting “Import”...
- Page 40 Gamma Adjustment When the gamma curve is a straight line: The brightness and contrast of the video input will be Gamma Curve the same as that of the video output. Bright Area for which the gamma curve is above the straight line (A): Video output appears brighter than the input.
-
Page 41: Reducing The After-Image Of Fast-Moving Images (Blur Reduction)
Reducing the After-image of Fast-moving Images (Blur Reduction) Low Latency For changing the low latency setting. You are recommended to set to “On” for content requiring split-second timing with the operation screen of PC signals or games. Press the [MENU] button to display the menu and select “Picture Adjust”"“Blur Reduction”"“Low Latency”... - Page 42 Clear Motion Drive (C.M.D.) Optimal interpolation according to the content is made possible with the new high-definition image interpolation technique that supports 3D images. For some scenes, interpolation may cause distortion in the image. In this case, set to “Off”. Original Image Interpolation Enabled Intermediate Frame Generation...
-
Page 43: Viewing High Contrast Images (Lens Aperture)
Viewing High Contrast Images (Lens Aperture) JVC has developed an image analysis algorithm, which analyzes the state of the video image in real time, and controls the aperture dynamically according to the image information. This technology enables viewers to enjoy video images with enhanced contrast. -
Page 44: Adjustments And Settings In The Menu
Adjustments and Settings in the Menu Pressing the [MENU] button displays the menu. Press the [JKH I] keys to select an item, followed by pressing the [OK] button to confirm the selection. List of Menu Items Picture Adjust Picture Mode ..............................P. 30 9 Clear Black .............................. - Page 45 Installation Lens Control ..............................P. 23 9 Focus ................................. P. 23 9 Zoom ................................P. 23 9 Shift ................................P. 23 9 Image Pattern ............................. P. 51 9 Lock ................................P. 51 9 Lens Memory Select ........................... P. 25 9 Lens Memory Save ............................ P. 24 9 Lens Memory Name Edit ..........................
-
Page 46: Picture Adjust
Continuous use at the “High” setting may cause the lamp to darken faster. Lens Aperture JVC has developed an image analysis algorithm, which analyzes the state of the video image in real time, and controls the aperture dynamically according to the image information. -
Page 47: Color Profile
Color Profile By setting the “Color Profile” (color space information) according to the “Picture Mode”, you can fine-tune the image quality according to the movie you are viewing. Æ “Setting the Color Profile” (P. 31) Color Management Each of the colors is adjustable according to the user’s preference. Æ... -
Page 48: Mpc Level
MPC Level You can enjoy natural, expressive 4K images with a stronger sense of depth. Æ “Adjusting Movies for Increased Expressiveness (Multiple Pixel Control)” (P. 35) 4K e-shift Switches the display resolution. Setting values: On (4K), Off (2K) Graphic Mode For selecting whether the content you are viewing is of high sharpness such as graphics. -
Page 49: Input Signal
Color For adjusting the color density of the video image. Setting range: -50 (lighter) to +50 (deeper) * Adjustment cannot be made when “Color Profile” is set to “x.v.Color”. Tint For adjusting the hue of the video image. Setting range: -50 (reddish) to +50 (greenish) * Adjustment cannot be made when “Color Profile”... -
Page 50: Aspect
Aspect The screen size of the projected image can be adjusted optimally according to the original screen size (aspect) that has been input. Æ “Adjusting the Screen Size (Aspect)” (P. 27) Progressive For setting the interpolation method for the interlaced signals. If the image outline is unnatural, set this item to “Off”. Setting Description Auto... -
Page 51: Installation
Installation Lens Control Focus / Zoom / Shift For adjusting the lens according to the projection position Æ “Adjusting the Lens According to the Projection Position” (P. 23) Image Pattern Setting Description Displays the lens adjustment pattern. Displays external signals, and does not display the lens adjustment pattern. Lock Setting Description... -
Page 52: Pixel Adjust
Pixel Adjust Adjust For setting the adjustment feature to On (Memory 1 or Memory 2) or Off. * You can save the settings separately when an anamorphic lens is used and when you are using the projector with a screen. Adjust Area Setting Description... -
Page 53: Installation Style
Installation Style For setting to “Front”, “Ceiling Mount (F)”, “Rear”, or “Ceiling Mount (R)” according to the installation status of the projector. “Front” or “Ceiling Mount (F)” is set when projector is installed in the front with respect to the screen. “Rear”... - Page 54 Whole Adjust (Pixel) Operation Procedure For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image. A Set “Adjust Area” to “Whole” B Select “Adjust Color” and “Adjust Pattern Color” C Select “Adjust (Pixel)”, and press the [OK] button The Adjustment mode is activated, and the selected adjustment pattern and Adjustment (Pixel) window are displayed.
- Page 55 Whole Adjust (Fine) Operation Procedure For making general adjustments on the misalignment of the entire screen using “Adjust (Pixel)”, followed by making fine adjustments. A Set “Adjust Area” to “Whole” B Select “Adjust Color” and “Adjust Pattern Color” C Select Adjust (Fine), and press the [OK] button The Adjustment mode is activated, and the selected adjustment pattern and Fine window are displayed.
- Page 56 Zone Adjust Operation Procedure For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using “Adjust (Pixel)” and “Adjust (Fine)”. The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made. A Set “Adjust Area”...
-
Page 57: Display Setup
Display Setup Back Color For setting the color of the background to “Blue” or “Black” when there is no signal input. Menu Position For setting the display position of the menu. Signal Display Setting Description Shows the input terminal for 5 seconds when input is switched. Not displayed. -
Page 58: Eco Mode
ECO Mode Setting Description Enables “ECO Mode” to minimize power consumption in the Standby mode. RS-232C / LAN communication cannot be used in the Standby mode. If there is no signal transmission and operation for 20 minutes while an image is projected, the power management switches the equipment automatically into standby mode. -
Page 59: Information
Remote Code For changing the remote control code. Setting Description Change the remote control code from “B” to “A”. Change the remote control code from “A” to “B”. You need to configure the remote control according to the settings of this unit. On the remote control unit, press the [MENU] and [BACK] buttons at the same time for three seconds or longer to switch the code. -
Page 60: Replacing The Lamp
Replacing the Lamp The lamp is a consumable item. If the image appears dark or the lamp goes out, replace the lamp unit. When the lamp replacement time approaches, the user is notified with a message displayed on the screen and by the indicator. - Page 61 Install the new lamp unit MEMO Usable lamp life When the lamp is used with “Lamp Power” set to “Low”, the lamp life on this unit is approximately 4500 hours. This is the average usable time and not a guaranteed value. The lamp life may not reach 4500 hours depending on the operating conditions.
-
Page 62: Resetting The Lamp Time
Resetting the Lamp Time Reset the lamp time when you have replaced the lamp. Resetting the lamp time using the remote It provides an estimated timing for lamp replacement control Resetting the lamp time from the menu Insert the power plug into the power screen outlet Press the [MENU] button to display... -
Page 63: Cleaning And Replacing The Filter
Cleaning and Replacing the Filter Clean the filter regularly Otherwise, the air intake efficiency may deteriorate, and malfunction may occur. Reinstall the inner filter CAUTION Make sure that you pull out the power plug from the Check that the left outlet before cleaning or replacing the filter. -
Page 64: Troubleshooting
Troubleshooting Before sending the unit to your authorized dealer for repair, please check the following points. The following symptoms are not malfunctions. You do not need to worry about the following symptoms if there is no abnormality on the screen. A part of the top or front surface of the unit is hot. - Page 65 Video image does not appear Check Action Refer to Is the correct external input selected? Select the correct external input terminal. P. 21 Is the power of the AV device or PC Turn on the power of the AV device or PC and play the P.
- Page 66 Video image looks unnatural Colors are unnatural Check Action Refer to Is the color space of the input signal The color may turn out unnatural when the input signal is P. 49 correctly set? different from that in the projector setting. Set the “Color Space”...
- Page 67 Striped patterns appear on the screen Check Action Refer to Does the fabric of the screen have a Interference fringes may sometimes occur between the — regular pattern? fabric pattern and the pixels. Please consult the authorized dealer. Video images are missing Check Action Refer to...
-
Page 68: When The Following Messages Appear
When the Following Messages Appear... Message Description Action No device is connected to the input Input the video signals. terminal. No Input The input terminal is connected but there is no signal. A video signal that cannot be used with Input video signals that can be used. -
Page 69: External Control
External Control It is possible to control this unit by connecting it to a PC using an RS-232C cross cable (D-sub 9-pin). The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector. -
Page 70: Command Format
Command Format The command between this unit and the computer consists of “Header”, “Unit ID”, “Command”, “Data” and “End”. Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte) Header This binary code indicates the start of communication. Binary Code Type Description... -
Page 71: Remote Control Code
Remote Control Code Binary code is sent during communication. The following applies to the case when the remote control code is “A”. In the case of “B”, add “36” to the beginning of the code. Remote Control Button Name Binary Code Remote Control Button Name Binary Code STAND BY... -
Page 72: Communications Example
Communications Example This section shows the communication examples of RS-232C. Operating command Type Command Description Connection check PC " This unit: 21 89 01 00 00 0A Connection check This unit " PC: 06 89 01 00 00 0A Power (On) PC "... -
Page 73: Specifications
Specifications Product Name D-ILA Projector Model Name DLA-X9900B, DLA-X7900B/W, DLA-X5900B/W*1 Display Panel/Size D-ILA device *2, 3 0.7" (1920 x 1080 pixels) x 3 (total no. of pixels: approx. 6.22 million) Projection Lens 2.0 x power zoom lens (1.4:1 to 2.8:1), motorized zoom and focus Light-source Lamp 265 W ultra-high pressure mercury lamp [product no.: PK-L2615U] Average lifespan: 4500 hours (“Low”... - Page 74 E T have obtained the “THX 3D Display Certification” by THX. In addition to 2D movies, you can also enjoy faithful reproduction of images in a “quality as intended by the filmmaker” during playback of 3D movies. The THX 3D certification is “an indication of high definition and high resolution”, which is granted to products that have cleared more than 400 image quality tests.
- Page 75 When a 4:3 screen is used Screen Size Projection Distance Diagonal (Model) Width (mm) Height (mm) Wide-end (m) Tele-end (m) 1219 2.22 4.49 1422 1067 2.60 5.24 1626 1219 2.98 6.00 1829 1372 3.36 6.75 2032 1524 3.74 7.51 2235 1676 4.11 8.26...
- Page 76 Types of Possible Input Signals Video Digital Video Signal 480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840×2160/24Hz, 3840×2160/25Hz, 3840×2160/30Hz, 3840×2160/50Hz*1, 3840×2160/60Hz*1, 4096×2160/24Hz*2, 4096×2160/25Hz*2, 4096×2160/30Hz*2, 4096×2160/50Hz*1, 2, 4096×2160/60Hz*1, 2 3D Signal Frame Packing 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz Side-by-side 1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz, 1080p/50 Hz, 1080p/24 Hz,...
- Page 77 Indicator Display on the Main Unit Meaning of the lighting figures STANDBY/ON LAMP WARNING The indicator lights up. The indicator appears blinking. Operation mode display Displays using the different colors and solid/blinking light of the “STANDBY/ON” indicator. “STANDBY/ON” lights up (red) “STANDBY/ON”...
- Page 78 Warning display You can tell the details of a warning from the (repeated) displays of the “WARNING” and “LAMP” indicators. The “STANDBY/ON” indicator, which shows the operating mode of the unit, is displayed simultaneously as described above. The Warning mode is activated once the message is displayed. Projection is interrupted, and the cooling fan is turned on for about 100 seconds.
- Page 79 Dimensions (Unit: mm) Top Surface Bottom Surface Lens Lens Rear Surface Front 227.5 Ø60 Lamp Cover Lens Center The dimensions are identical for all the models.
-
Page 80: Index
Index Input Signal ............ 59, 76 A Accessories ............9 Input terminals ............. 12 Adjusting Distortion of the Projection Screen ..23 Installation Method ..........15 Adjustment and Setting by the Menu ....44 Installing the 3D Syncro Emitter ......28 Adjustment of the Image Quality ...... - Page 81 Signal Display ............59 W When the following messages appear....68 Software Ver............59 Specifications ............73 Z Zoom ..............24 T THX ..............74 Symbol 3D Crosstalk Cancel ..........29 Top and Bottom ........... 29 3D Format ............29 Trigger ..............
- Page 84 © 2019 JVCKENWOOD Corporation 0619KSH-SW-MG...
