Assembly Instructions
E.C. Woods, Inc. Outdoor Furniture
ACADIA
Tools Needed
Cordless Drill
6" #2 Square drive Bit

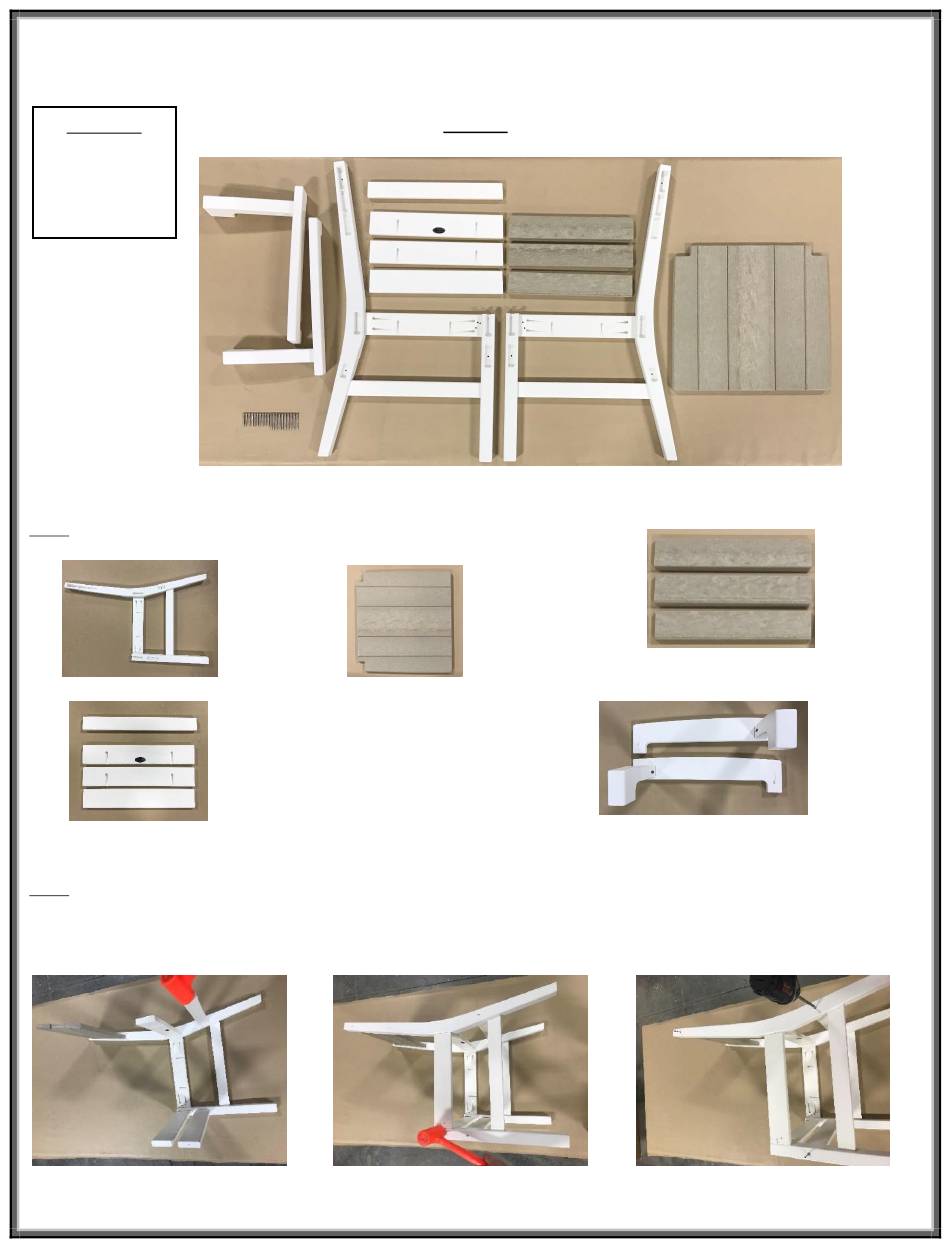

STEP 1: Lay all pieces on a smooth soft surface such as cardboard or carpet to help avoid scratching. We suggest using a 6" #2 square drive bit to fasten all screws
(available at your local hardware store). Be careful to not over tighten any of the fasteners.
14 5/8" LONG
SIDE ASSEMBLY
SEAT ASSEMBLY
BACK SUPPORTS
15 3/4" LONG
BACK AND FRONT STRETCHERS, AND (2) SEAT SKIRTS
OPTIONAL ARMS
STEP 2: (a) Use a soft hammer (if necessary) to insert Back Supports and Stretchers in to Side Assembly. (b) Place the other Side Assembly on top of the Back Supports
and Stretchers, starting at the top, use a soft hammer (if necessary) to seat the Side Assembly onto the Back Supports and Stretchers making sure that it is tight. (c)
Secure the Side Assembly to the Stretchers using the 2" stainless steel flat head screws provided. Flip the chair over and secure the other side with the 2" stainless
steel flat head screws provided.
(a)
(b)
(c)
