E.C. Woods Acadia Assembly Instructions

Assembly Instructions
E.C. Woods, Inc. Outdoor Furniture

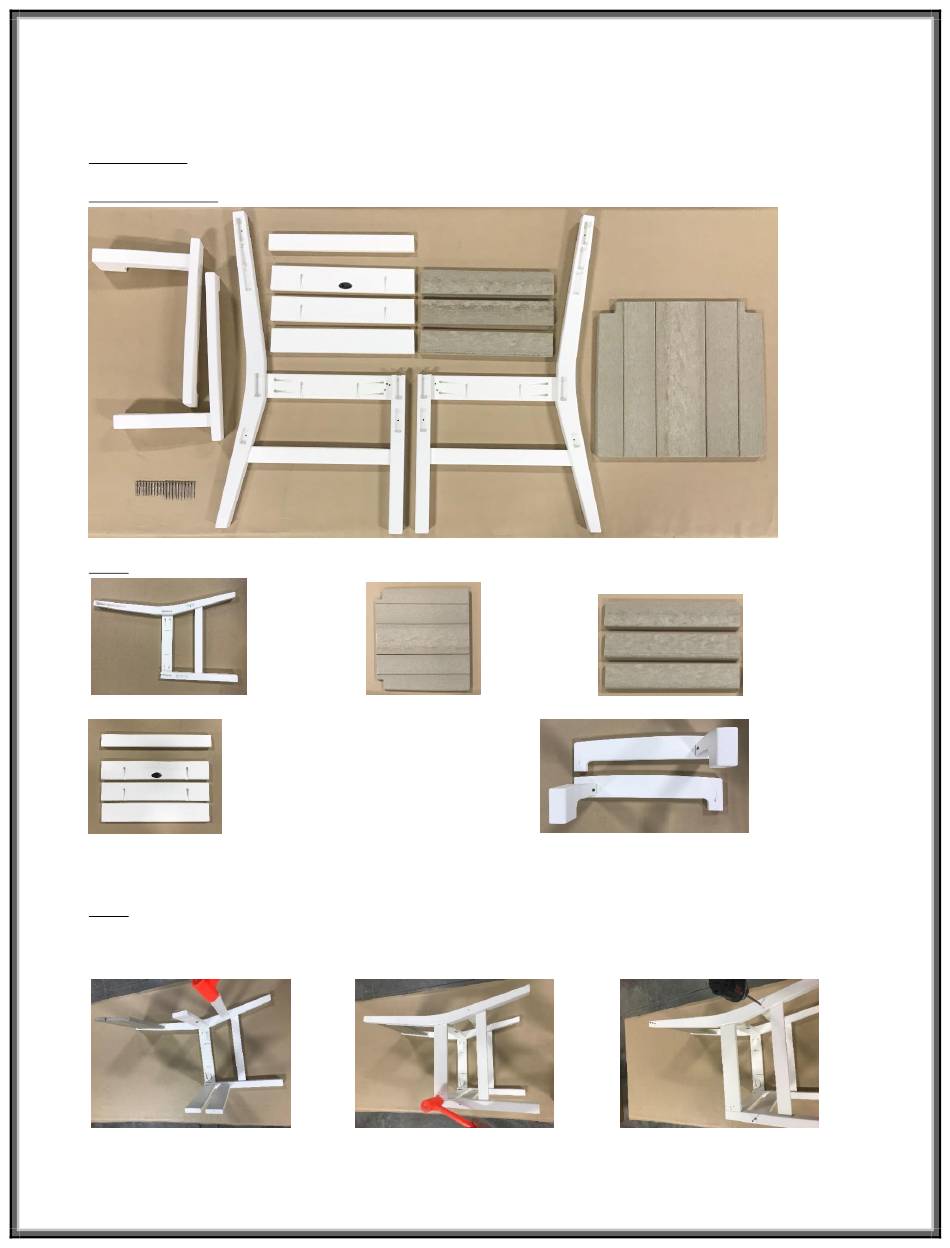

PARTS INCLUDED: 2 – Side Assemblies, 1 – Seat, 1 – Back Stretcher (1 3/4"x15 7/8"), 2 – Seat Skirts w/pocket holes (2 5/8"x15 3/4"), 1 - Front
Stretcher (2 5/8"x15 3/4"), 3 – Back Supports (2 5/8"x14 5/8"), (Opt) 2 – Arm Assemblies
HARDWARE INCLUDED: 10 – 1 ½" Pan Head and 10 – 2" Countersunk Head Stainless Steel Screws
STEP 1: Lay all pieces on smooth, soft surface, such as cardboard, to avoid scratching.
14 5/8" LONG
SIDE ASSEMBLY SEAT ASSEMBLY BACK SUPPORTS
15 3/4" LONG
BACK AND FRONT STRETCHERS, AND (2) SEAT SKIRTS OPTIONAL ARMS
STEP 2: (a) Use a soft hammer (if necessary) to insert Back Supports and Stretchers in to Side Assembly. (b) Place the other Side Assembly on
top of the Back Supports and Stretchers, starting at the top, use a soft hammer (if necessary) to seat the Side Assembly onto the Back Supports
and Stretchers making sure that it is tight. (c) Secure the Side Assembly to the Stretchers using (3) – 2" screws. Flip chair over and secure the
other side using (3) – 2" screws.
(a) (b) (c)
