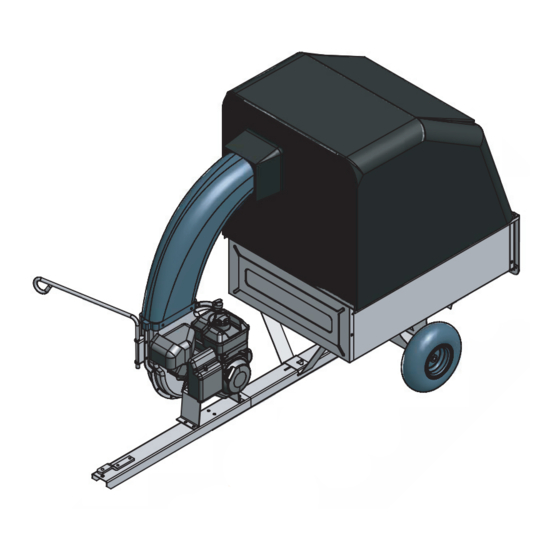

Agri-Fab VAC-N-GO 45-0407-131 Owner's Manual
  1. Manuals
  2. Brands
  3. Agri-Fab Manuals
  4. Lawn and Garden Equipment
  5. VAC-N-GO 45-0407-131
  6. Owner's manual

Agri-Fab VAC-N-GO 45-0407-131 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNERS
MANUAL
Model No.
45-0407-131
CAUTION:
Read Rules for
Safe Operation
and Instructions
WMV-
Digitally signed by WMV-Dresden
PRINTED IN USA
DN: cn=WMV-Dresden, c=DE,
o=WMV-Dresden,
Dresden
email=noreply@wmv-dresden.de
Date: 2017.01.26 13:00:43 +01'00'
�
Carefully
the fastest way to purchase parts www.speedepart.com
VAC-N-GO
Safety
Assembly
Operating
Maintenance
Repair Parts
™
FORM NO. 40426 (08/06)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAC-N-GO 45-0407-131 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agri-Fab VAC-N-GO 45-0407-131

Summary of Contents for Agri-Fab VAC-N-GO 45-0407-131

  • Page 1 � OWNERS MANUAL Model No. 45-0407-131 VAC-N-GO ™ CAUTION: Safety Read Rules for Assembly Safe Operation Operating and Instructions Maintenance Carefully Repair Parts the fastest way to purchase parts www.speedepart.com WMV- Digitally signed by WMV-Dresden PRINTED IN USA FORM NO. 40426 (08/06) DN: cn=WMV-Dresden, c=DE, o=WMV-Dresden, Dresden...
  • Page 3 SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. Look for this symbol to point out important safety precautions. It means — Attention!! Become alert!! Your safety is involved.
  • Page 4 NOT SHOWN FULL SIZE HARDWARE PACK...
  • Page 5 HARDWARE PACK REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION Hex Bolt, 3/8" x 3" Nylock Nut, 1/4" Hex Bolt, 1/2" x 1-1/4" Lock Nut, 1/4" Hex Bolt, 3/8" x 1" Flat Washer Hex Bolt, 1/4" x 1-1/2" Spacer Hex Bolt, 1/4" x 1" Washer, 7/16"...

  • Page 6: Tailgate Reinforcement Bracket 19 43009

    CARTON CONTENTS (NOT SHOWN FULL SIZE) 1. Cart 7. Tarp Strap, 25" 13. Hitch Plate 2. Cart Cover 8. Defl ector w/ Elbow 14. Hose Clamp (2) 3. Engine 9. Adapter Bracket 15. Hose Hanger Assembly 4. Hose Adapter 10. Rear Tongue 16.

  • Page 7: Latch Stand Bracket 26 47407

    4. To prevent accidental tipping during the following 7. Flip the cart over so that it rests on its wheels. assembly procedures, lower the cart to rest upside down 8. Assemble the front tongue on top of the rear tongue on its top fl...
  • Page 8 12. Assemble the engine to the tongue using two 3/8" x 3" 14. Place a hose clamp onto the end of the hose. Push the hex bolts in the rear holes, two 3/8" x 1" hex bolts in the hose onto the hose adapter (nozzle). Tighten the hose front holes and four 3/8"...
  • Page 9 CART COVER ASSEMBLY 17. Assemble the hitch plate to the tractor hitch if: a. Your tractor has a square (straight) hitch frame, 1. Attach the braces to the front support tube using two to help prevent binding. 1/4" x 1-1/2" hex bolts and 1/4" lock nuts. DO NOT b.
  • Page 10 4. Slide each end of the rope through the holes in the While performing the assembly operations tailgate shown in fi gure 13. in step 3, make sure the cart bag is between 5. Tie a knot in the end of each side of the rope to secure the rope in place.
  • Page 11 ASSEMBLING THE #62468 DECK ADAPTER 5. Position the adapter over the deck opening, and check for fi t of cutout as shown in fi gure 15. Trim cutout, if TO THE MOWER DECK necessary, to allow tilting of adapter, keeping the fi t as NOTE: Not all of the parts in the deck adapter hardware close as possible for best vacuum suction.
  • Page 12 7. Assemble the adapter bracket to the deck using two 8. With deck adapter positioned correctly over the discharge 5/16" x 1-1/4" hex bolts, 5/16" fl at washers and 5/16" opening, use the adapter bracket as a template and nylock nuts. See fi gure 17. drill three 9/32"...
  • Page 13 FOR 1990 AND NEWER MURRAY TRACTORS WITH FOR 1990 AND NEWER MURRAY TRACTORS A 38" OR 40" DECK WITH A 46" DECK 11. Cut out two templates and place on deck adapter as 14. Tape 46" template onto deck adapter. Mark and then shown in fi...

  • Page 14: Latch Lock Lever 29 47189

    OPERATION KNOW YOUR VAC SYSTEM Read this owner's manual and safety rules before operating your Vac System. Compare the illustration below with your Vac System to familiarize yourself with the various controls and their locations. BOOT CHOKE CONTROL THROTTLE LATCH LOCK LEVER CONTROL LATCH LOCK LEVER Locks the cart bed down to the tongue.
  • Page 15 BEFORE STARTING HOW TO USE YOUR VAC SYSTEM • The engine is shipped without oil or gas o line. Service CAUTION: Vehicle braking and sta bil i ty may engine with oil and gas as instructed in engine manual. be affected with addition of ac ces so ry or •...
  • Page 16 MAINTENANCE CUSTOMER RESPONSIBILITIES • Read and follow the maintenance schedule and the maintenance procedures listed in this section. MAINTENANCE SCHEDULE MAINTENANCE SCHEDULE Fill in dates as you Service Dates complete regular service. complete regular service. Check for loose fasteners Check for loose fasteners Check cover Check cover Check tire pressure...
  • Page 17 STORAGE • Clean the engine and the entire unit thoroughly. It is important to prevent gum deposits from forming in • Refer to engine manual for correct engine storage essential fuel system parts such as the carburetor, fuel fi lter, instructions.
  • Page 18 CART REPAIR PARTS FOR 45-0407-131 VAC-N-GO...

  • Page 19: Table Of Contents

    REPAIR PARTS LIST FOR 45-0407-131 VAC-N-GO REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION 23912 Cart Body 43081 Washer, 5/16" Std. 24906 Front Panel 23625 Spacer, .38" x .62" x .27" 62458 Tailgate Reinforcement Bracket 43009 Washer 24907 Tailgate 43010 Cotter Pin 23548 Tailgate Guide...
  • Page 20 REPAIR PARTS FOR MODEL 45-0407-131 SOFT TOP VAC-N-GO ADAPTER #62468 TRACTOR...

  • Page 21: Lock Nut

    REPAIR PARTS FOR MODEL 45-0407-131 SOFT TOP VAC-N-GO REF. PART NO. QTY. DESCRIPTION REF. PART NO. QTY. DESCRIPTION 25836 Top Support Angle 23540 Hitch Plate 25740 Front Support Tube 1543-69 Nylon Washer 25876 Brace 43351 Hex Bolt, 1/2-13 x 1-1/4" 49864 Lower Support Rod 43262...
  • Page 22 REPAIR PARTS FOR MODEL 45-0407-131 VAC-N-GO IMPELLER HOUSING ASSEMBLY REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION 629-0241A Harness, Wire 725-3166 Snap Mount Switch 24634 Housing Assembly, Inner 726-0272 Clamp 24633 Housing Assembly, Outer 731-1613 Switch Cover 43182 Hex Bolt, 5/16-18 x 3/4" 24958 Hose Hanger Bracket 40320...
  • Page 23 SLOPE GUIDE (Keep this sheet in a safe place for future reference.) Use this guide to determine if a slope is safe for the operation of your tractor and cart. Refer also to the instructions in your vehicle owners manual.
  • Page 24 REPAIR PARTS Agri-Fab, Inc. 809 South Hamilton Sullivan, IL. 61951 217-728-8388 www.agri-fab.com © 2006 Agri-Fab, Inc.
