Summary of Contents for Agri-Fab 45-0403

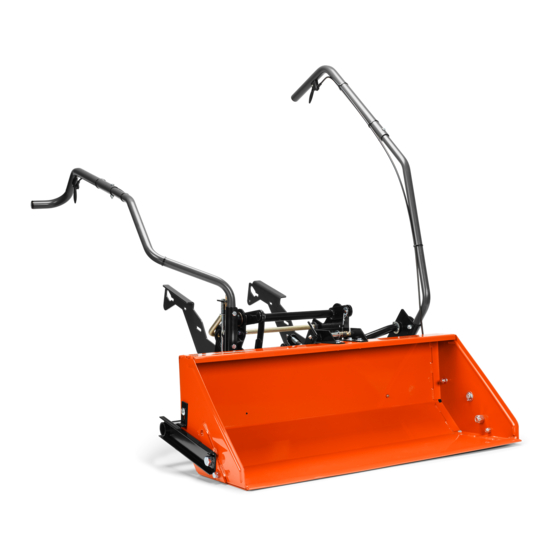

- Page 1 ™ OwNERS MaNual Model No. 45-0403 FRONT END SCOOP Safety CAUTION: assembly Read Rules for Operating Safe Operation Maintenance and Instructions Repair Parts Carefully the fastest way to purchase parts www.speedepart.com PRINTED IN U.S.A. FORM NO. 40121 (4/26/07)
-
Page 2: Safety Rules
SaFETY RulES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. • • Read this operator's manual before attempting to Never ram the scoop into material at high speed. -
Page 3: Carton Contents
CaRTON CONTENTS 1. Bucket Assembly 8. Right (Short) Side Plate 15. Lift Handle Tube 2. Pin Stop Bracket 9. Left (Short) Side Plate 16. Dump Handle Tube Extension 3. Lift Frame Assembly 10. Dump Control Rod 17. Dump Pivot Bracket 4. -
Page 4: Full Size Hardware Chart
Full SIZE HaRDwaRE CHaRT... -
Page 5: Parts Bag Contents
PARTS NOT SHOWN FULL SIZE PaRTS BaG CONTENTS Not all parts will be needed for fit-up to any one tractor. Discard unneeded parts after assembly is finished. REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION Hex Bolt, 5/8" x 1-1/2" Lock Washer, 3/8" Hex Bolt, 1/2"... -
Page 6: Tools Required For Assembly
5/16" x 1" aSSEMBlY HEX BOLT (F) TOOlS REQuIRED FOR aSSEMBlY 5/16" WASHERS (X) PIN STOP #2 Phillips Screwdriver BRACKET Standard Screwdriver 15/16" Wrenches (one should be box-end) 3/4" Wrenches 9/16" Wrenches BUCKET ASSEMBLY 7/16" Wrenches 1/2" Wrenches 3/8" Wrench aDDITIONal ITEMS NEEDED Ruler or Tape Measure Grease... - Page 7 STEP 4: INSTall lIFT BRaCKET aSSEMBlY STEP 6: INSTall lIFT STRaP aSSEMBlIES (SEE FIGuRE 3) (SEE FIGuRE 5) • loosen the bolts and nuts on the lift strap • Assemble the lift bracket assembly to the lift frame assemblies 1/4 turn or until the straps will slide back assembly using two 5/8"...
- Page 8 STEP 9: INSTall DuMP CONTROl ROD • Lightly apply grease to the end of the arm on the tilt (SEE FIGuRE 8) anchor assembly and install the tilt bracket assembly to the arm using a 1/2" x 1" hex bolt (C) and 1/2" •...
- Page 9 STEP 11: INSTall lIFT HaNDlE TuBE STEP 13: INSTall lIFT CaBlE (SEE FIGuRE 10) (SEE FIGuRE 12) • Install the lift handle tube into the index bracket using • Squeeze the lift trigger and slide the anchor end of the two 5/16"...
- Page 10 STEP 14: INSTall DuMP HaNDlE TuBE STEP 16: INSTall DuMP CaBlE (SEE FIGuRE 13) (SEE FIGuRE 15) DUMP • Install the dump handle tube to the dump pivot bracket • Squeeze the dump trigger and slide the anchor end HANDLE assembly using three 5/16"...
- Page 11 STEP 17: INSTall DuMP CONTROl PIN SPACER (SEE FIGuRE 16) • Install a small 1/2" washer (Z) and then the 5/16" x 1" compression spring (MM) onto the dump control pin. HEX BOLT (F) 5/16" Install the dump control pin into the pin stop bracket. NYLOCK NUT (R) Make sure the flat side of the pin faces to the front...
- Page 12 lawN TRaCTORS aND GaRDEN TRaCTORS STEP 21: INSTall FRaME BRaCE (SEE FIGuRE 20) wITH SINGlE SuSPENSION BRaCKETS • Install the frame brace to the inside of the side plates using two 1/2" x 1-3/4" bolts (B), large 1/2" washers STEP 20: INSTall SIDE PlaTES (CC), 1/2"...
- Page 13 lawN TRaCTORS wITH Dual SuSPENSION GaRDEN TRaCTORS wITH Dual BRaCKETS SuSPENSION BRaCKETS STEP 22: INSTall SIDE PlaTES STEP 24: INSTall SIDE PlaTES (SEE FIGuRE 21) (SEE FIGuRE 23) • Remove any bolts present in the mounting holes on the • Remove any bolts present in the mounting holes on left side of the tractor frame.
- Page 14 INSTRuCTIONS FOR all TRaCTORS STEP 26: aDJuST TIlT BRaCKET aSSEMBlY (SEE FIGuRE 25) • Lower the scoop assembly onto a smooth level STEP 25: MOuNT SCOOP TO TRaCTOR surface. For normal use, let the bottom of the bucket (SEE FIGuRE 24) rest flat on the ground.
- Page 15 STEP 27: aDJuST lIFT STRaPS (SEE FIGuRE 26) • Make sure the nuts and bolts in the lift straps are loose enough to turn by hand. Stand on the right side of the scoop and hold the lift handle as far forward as it will go while you tighten one of the nuts in the lift straps.
-
Page 16: Operation
OPERaTION • Always test to make sure your vehicle has adequate power and braking capabilities whenever hauling a substantial amount of weight in your front end scoop. KNOw YOuR FRONT END SCOOP Use extra caution when operating on slopes. Read this owner's manual and safety rules before operating your front end scoop. -
Page 17: Maintenance
MaINTENaNCE CHECK FOR lOOSE FaSTENERS luBRICaTION • Before each use make a thorough visual check of • Lightly oil all pivot points on the scoop lift mechanism. the front end scoop for any bolts and nuts which may • Lightly oil the surface on the scoop bucket where the have loosened. - Page 18 REPaIR PaRTS FOR MODEl 45-0403 FRONT END SCOOP 47 15...
- Page 19 REPaIR PaRTS FOR MODEl 45-0403 FRONT END SCOOP PaRT QTY DESCRIPTION PaRT QTY DESCRIPTION 1509-69 Hex Bolt, 1/4-20 x 1-3/4" (Grade 5) 45 R19212016 Flat Washer, 5/8" x 1-1/4" x 16 Ga. 726-0178 Cable Tie 25362 Tilt Bracket Extension Strap...
- Page 20 NOTES...
- Page 21 NOTES...
- Page 22 NOTES...
- Page 23 SlOPE GuIDE FOR TRaCTORS (Keep this sheet in a safe place for future reference.) use this guide to determine if a slope is safe for the operation of your tractor and scoop. Refer also to the instructions in your vehicle owners manual.
- Page 24 Agri-Fab, Inc. Unauthorized uses and/or reproductions of this manual will subject such unauthorized user to civil and criminal penalties as provided by the United States Copyright Laws.
