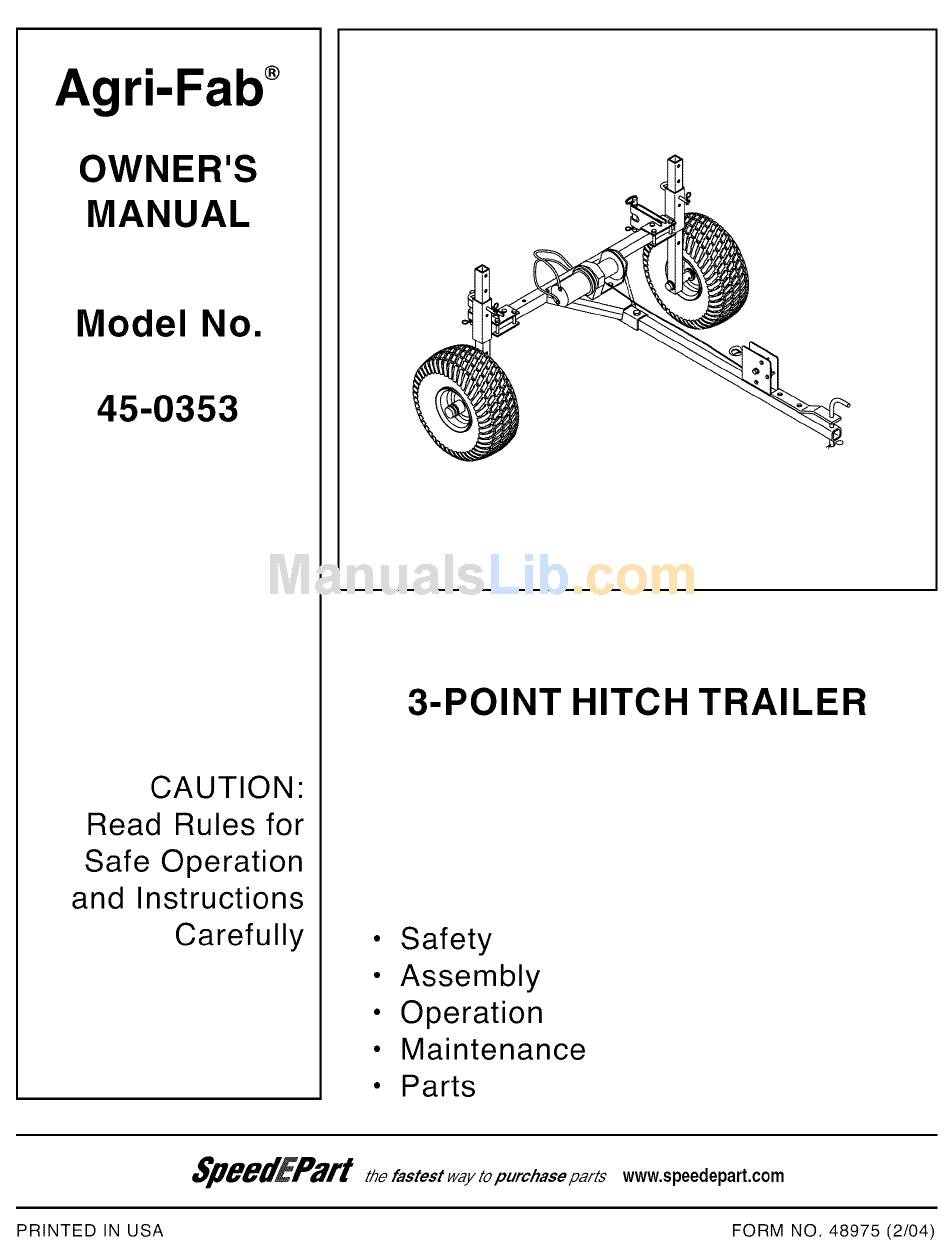

Agri-Fab ®
OWNER'S
MANUAL
Model No.
45-0353
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
3-POINT
HITCH TRAILER
• Safety
• Assembly
• Operation
• Maintenance
• Parts
PRINTED
IN USA
www.speedepart.com
FORM NO. 48975 (2/04)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45-0353 and is the answer not in the manual?

Questions and answers

Related Manuals for Agri-Fab 45-0353

Summary of Contents for Agri-Fab 45-0353

  • Page 1 Agri-Fab ® OWNER'S MANUAL Model No. 45-0353 CAUTION: Read Rules for Safe Operation and Instructions Carefully PRINTED IN USA 3-POINT HITCH TRAILER • Safety • Assembly • Operation • Maintenance • Parts www.speedepart.com FORM NO. 48975 (2/04)

  • Page 2: Safety Rules

    Remember, any power equipment operate the equipment. Exercise IMPORTANT SAFETY PRECAUTIONS. MEANS - ATTENTION! LOOK FOR THIS SYMBOL TO POINT OUT YOUR SAFETY IS INVOLVED. Read this owner's manual owner's manual before using this equipment. Do not allow children to operate hitch trailer, or any implement trailer.
  • Page 3 PARTS PACKAGE CONTENTS QTY. DESCRIPTION Screw, #8 x 3/8" Screw, #6 x 3/4" Hex Bolt, 5/16" x 1" Lg. Hex Bolt, 1/4" x 1-3/4" Lg. Hex Bolt, 3/8" x 1-3/4" Lg. Hex Bolt, 3/8" x 2-1/2" Lg. Hex Bolt, 1/2" x 2-3/4" Lg. Clevis Hex Nut, Nylock #6 Hex Nut, Nylock,...
  • Page 4 ASSEMBLY TOOLS REQUIRED FOR ASSEMBLY 7/1 6" Wrenches 1/2" Wrenches 9/1 6" Wrenches 3/4" Wrenches or 10" Adjustable Pliers Grease Remove all loose parts and the hardware from the shipping carton. Lay out and identify part and the common hardware and 3.
  • Page 5 Install the hitch anchors onto trailer frame. The clevis pin hole should be to the inside. Secure with four 3/8" x 2-1/2" hex bolts and 3/8" Nylock hex nuts. Tighten they are just snug. Slide each hitch anchor the frame to align with the outer hole for category 1 implements or the inner hole are for category implements.
  • Page 6 ELECTRICAL CONNECTIONS FOR THE WINCH REFER TO THE INSTRUCTION ELECTRICAL CONNECTIONS. Connect the wires in the drawbar terminals, securing red to positive negative. See figure 7. NOTE: tf the winch terminals are not marked positive and negative, you will need to check the direction of rotation after you complete Reverse...

  • Page 7: Operation

    OPERATION WIRE ROPE WHEN KEEP CLEAR UNDER LOAD. The 3-Point Hitch Trailer is only designed category 0 or 1 attachments. The total working of any attachment must not exceed 400 pounds. When the hitch trailer is attached the hitch pin used to connect the trailer to the vehicle hitch must be secured with the haircotter use the haircotter...

  • Page 8: Leveling Adjustment

    LEVELING ADJUSTMENT WITH ATTACHMENT DO NOT ADJUST SONAL INJURY CAN RESULT. The trailer height must be adjusted attached to the vehicle to obtain the best performance out an attached implement. Holes in the trailer frame provide change. Holes in the axle assembly inch height change.
  • Page 9 NOTES...
  • Page 10 REPAIR PARTS 3-POINT MODEL HITCH TRAILER 45-0353 _J 8 • _...
  • Page 11 REPAIR PARTS FOR MODEL NO. 45-0353 REF. PART QTY. DESCRIPTION HA21362 Hex Nut, Nylock, 43343 Haircotter 64778 Hitch Anchor 48967 Quick Attach 43432 Hex Bolt, 3/8"-16 49383 Screw, #6 x 3/4" 49385 Screw, #8 x 3/8" 47397 Clip 49384 Hex Nut, Nylock #6-32...

  • Page 12: Repair Parts

    REPAIRPARTS Agri-Fab,Inc. 303 WestRaymond Sullivan,IL61951 217-728-8388 © 2004Agri-Fab,Inc. www.agri-fab.com...
