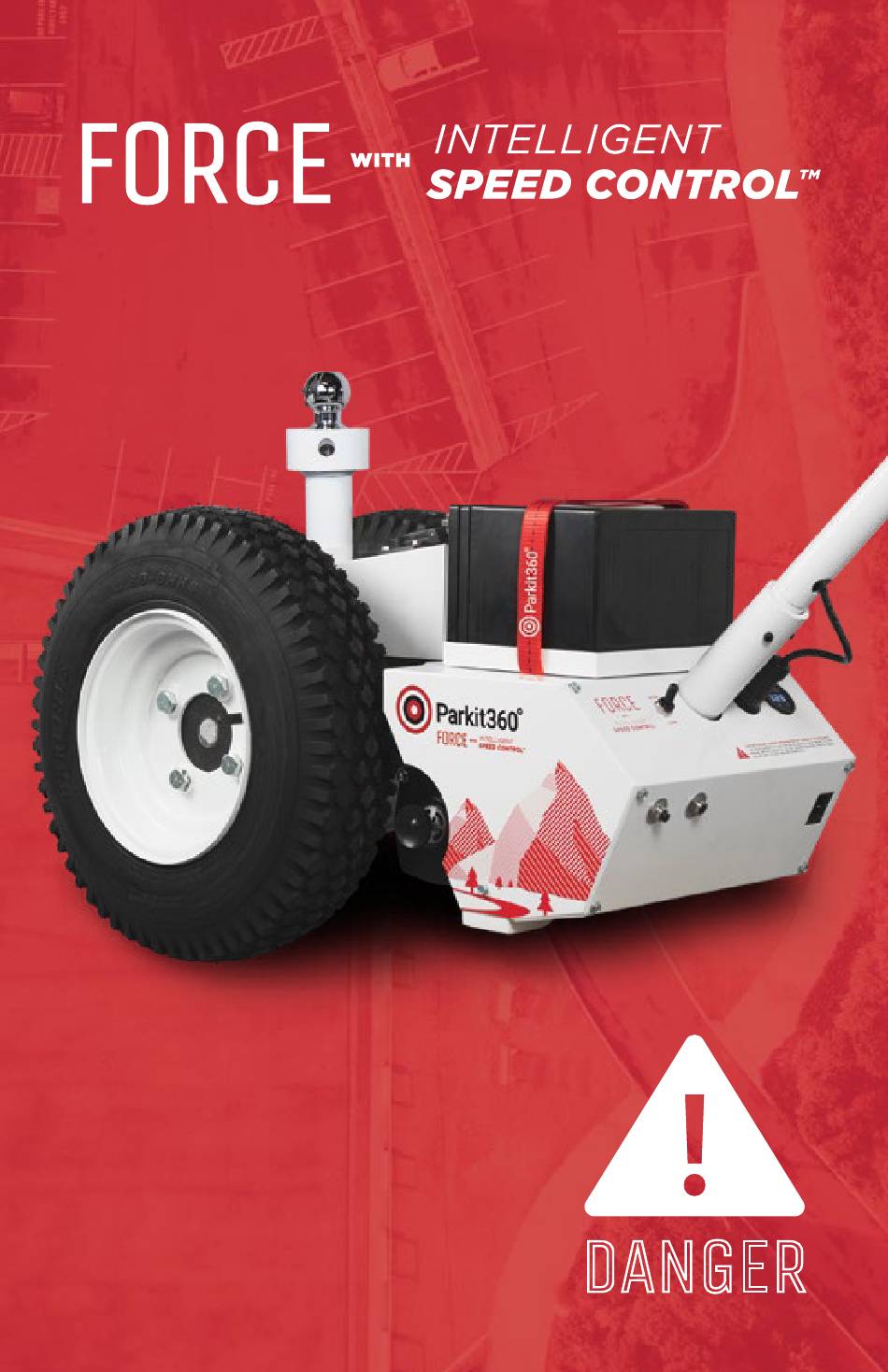

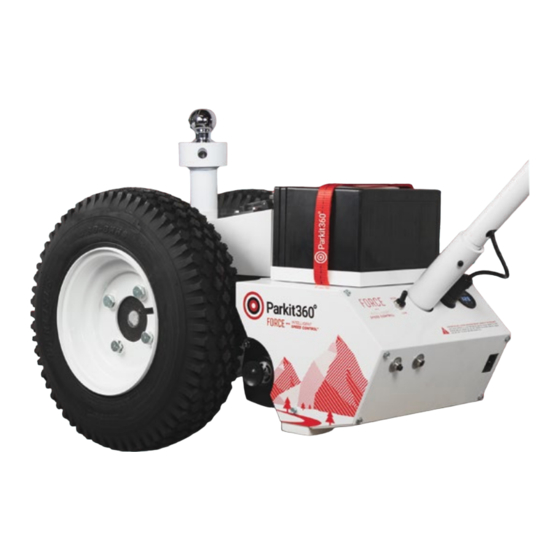

5K & 10K MANUAL
VERSION 4.1
READ CAREFULLY
BEFORE OPERATION
IMPROPER USE OF THIS DOLLY CAN
CAUSE DAMAGE TO YOUR TRAILER,
PERSONAL INJURY OR EVEN DEATH.
DANGER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORCE 5K and is the answer not in the manual?

Questions and answers

Related Manuals for PARKIT360 FORCE 5K

Summary of Contents for PARKIT360 FORCE 5K

  • Page 1 5K & 10K MANUAL VERSION 4.1 READ CAREFULLY BEFORE OPERATION IMPROPER USE OF THIS DOLLY CAN CAUSE DAMAGE TO YOUR TRAILER, DANGER PERSONAL INJURY OR EVEN DEATH.
  • Page 2 IN THE BOX PACKAGES INCLUDE: Force Dolly & Handle Ball Mount: 18”, 20” or 24” Tightening Bar Two Hitch Balls: 2” & 2 5/16” Thrust Washer (Puzzle) Hardware Kit: • 2 Handle Spring Clips • Allen Key • Battery Cable •...

  • Page 3: Optional Parts

    Engages or Disengages Motor to move the Dolly With or Without Power. OPTIONAL PARTS Telescopic Frame Adapter 1 7/8” or 50mm Hitch Ball Pintle Hitch Adapter Atwood Hitch Adapter Smart Brake U1 Battery Kit Battery Box Kit ORDER ONLINE CALL TOLL-FREE: 1-888-926-5517 PARKIT360.COM...

  • Page 4: Module Features

    MODULE HANDLE PLUG Plug in and Twist FEATURES locking cap over connection. Unplug while charging. CIRCUIT BREAKERS By default, the Brake Button protrudes more than the Motor. ISC CONTROL™ VOLT METER High and Low Speed options for Digital Meter that measures and Faster or more Precise Parking.
  • Page 5 DRIVE MODES: FREEWHEEL KNOB FREEWHEEL NEUTRAL. MOVE THE DOLLY WITHOUT POWER WHILE IT IS NOT UNDER LOAD. If you are in Engaged Mode, the wheels will be locked in the drive position. Without power, the Dolly will only move an inch forwards or backwards before stopping.

  • Page 6: Power Options

    POWER OPTIONS DOLLY-MOUNTED BATTERY U1 BATTERY KIT Plug the Pre-Installed Battery Cable into the Dolly to turn the Dolly ON or OFF. BATTERY BOX KIT Install the Battery Box with the Strap Provided. Use the 20” or U1 SEALED GRP 24 MARINE 80”...
  • Page 7 DANGER DO NOT EXCEED DOLLY’S MAX. WEIGHT CAPACITY CAN CAUSE DAMAGE TO YOUR TRAILER, SERIOUS INJURY, OR EVEN DEATH. FORCE 5K FORCE 10K UP TO 5,000 LBS UP TO 10,000 LBS RE-TIGHTEN BALL MOUNT BEFORE OPERATION USE JACK POST CONNECTION OR TELESCOPIC...

  • Page 8: Hitch Ball

    CONNECTING TO YOUR TRAILER: BALL MOUNT ADAPTER While in Freewheel Mode, move the Dolly and Accessories to the Trailer. Choose your preferred Hitch Ball Size, and assemble the Ball Mount. BALL MOUNT ASSEMBLY HITCH BALL Thread desired Hitch Ball into the Ball Mount.
  • Page 9 HITCH BALL PLACEMENT WELD SPOTS Insert the assembled Ball Mount into the Hitch and lock as normal. Make sure the Weld Spots on the Hitch Ball are pointed towards the rear left side of your trailer at about 10 o’clock. The hitch may not lock if they are not positioned properly! HITCH CONNECTION...
  • Page 10 CONNECTION GAP? THRUST WASHER Place the Thrust Washer on top of the Ball Mount with the open section facing the trailer. While tightening, hold the Thrust Washer in place to prevent it from spinning. Need to increase Ball Mount Height? Interlock the Puzzle Piece.

  • Page 11: Connect Battery

    ENGAGE MOTOR INTO DRIVE CONNECT BATTERY Plug the Battery Cable into the Dolly to turn it ON. FREEWHEEL KNOB Ensure the Dolly is in parking position and ready to connect to the Hitch, then Engage the Motor. ALIGN THE DOLLY Using the Handle Toggle Switch, Drive the Dolly underneath the hitch.
  • Page 12 INSERT BALL MOUNT Reverse the Dolly to Level, then lower Ball Mount fully into the Receiver Tube. Wiggle the handle up and down while lowering to release air pressure. Ensure that the Jack Post is off of the ground. REVERSE RE-TIGHTEN BALL MOUNT Using the Toggle Switch, move the Dolly back &...

  • Page 13: Storage And Maintenance

    Grease the Receiver Tube and Lubricate the Chain with Chain Lube. Can be done annually, or more often if used more frequently. CALL TOLL-FREE: OFFICE HOURS (WEEKDAYS) 1-888-926-5517 8AM-4PM EST Ext. 1 - Sales & Service sales@parkit360.com Ext. 2 - Administration admin@parkit360.com support@parkit360.com...
  • Page 14 ALTERNATE CONNECTIONS TRAILER JACK POST Remove the Ball Mount Adapter. Lower the Trailer Jack into the Dolly’s Receiver Tube, following the standard connection process. The trailer should rest as close to the Dolly’s Tires as possible to reduce strain on the Jack Shaft. TELESCOPIC FRAME ADAPTER Remove the Ball Mount Adapter.

  • Page 15: Exclusions And Limitations

    2 -Year Warranty, whichever is later. 30 DAY RETURN POLICY If a material defect is found or if the Parkit360 Force Dolly has failed to perform to your expectations, return it within 30 days of the date of sale for a refund, less the flat shipping cost of $250 and 20% restocking fee.
  • Page 16 DANGER DO NOT EXCEED DOLLY’S MAX. WEIGHT CAPACITY RE-TIGHTEN BALL MOUNT BEFORE OPERATION DO NOT OPERATE ON MORE THAN A 6% GRADE PARKIT360 INC. 130 Industrial Ave, Unit 600 Carleton Place, ON K7C 3T2 Canada 1-888-926-5517 or PARKIT360.com...
