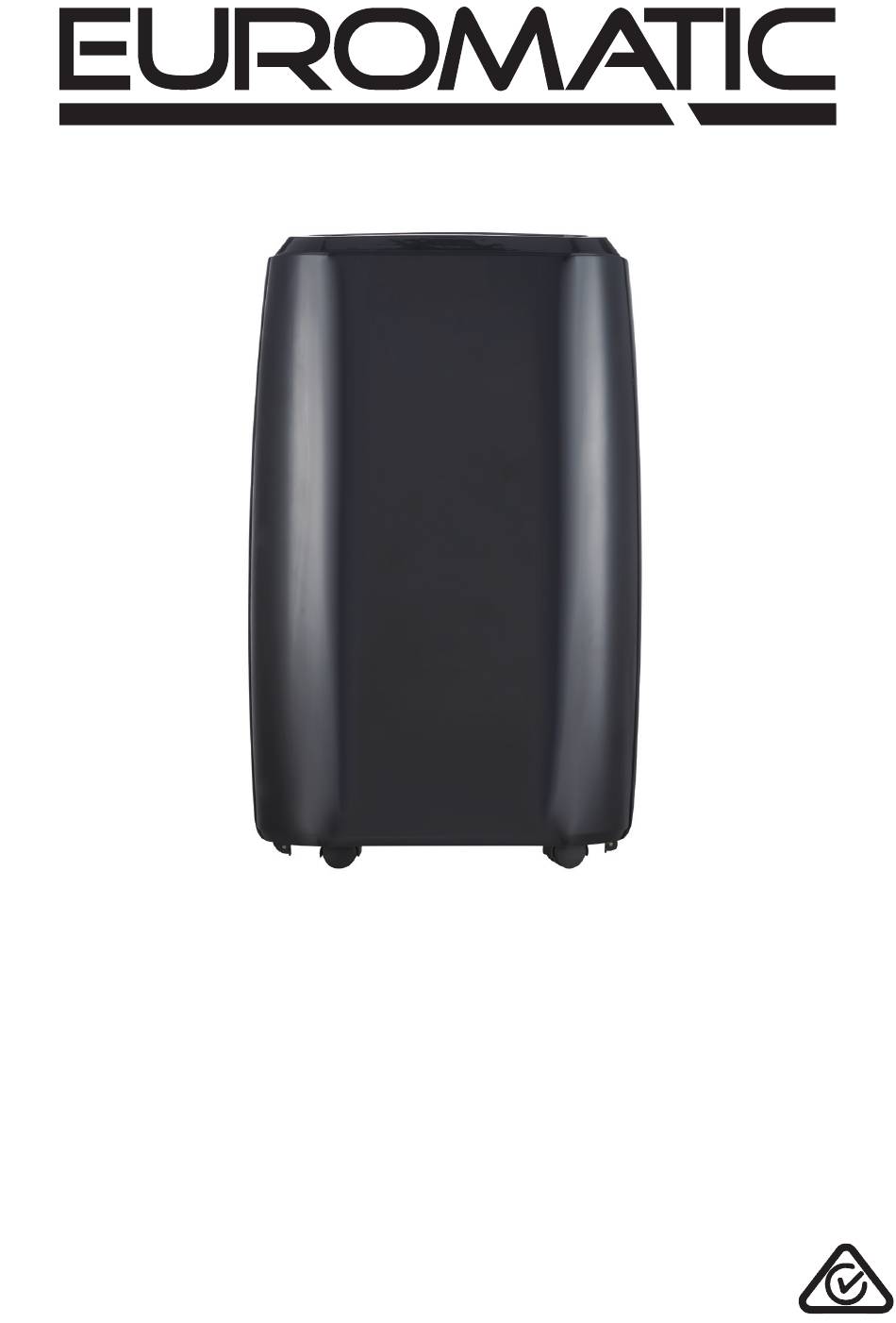

- Page 1 Portable Air Conditioner USER MANUAL Model Number A011A-18C AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
-
Page 2: Table Of Contents
Contents Page Important Safety Instructions R32-Specific Safety Advice Getting Started Product Overview Installation Instructions FAQs & Troubleshooting Guide Other Useful Information After Sales Support 1300 886 649 | info@tempo.org... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 4 Important Safety Instructions (Cont.) • RCD: The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance.
- Page 5 Important Safety Instructions (Cont.) • Cold air exposure: Never remain directly exposed to the flow of cold air for a long time, as direct and prolonged exposure to cold air from the air conditioner could be dangerous for your health. Take particular care in rooms where there are children, old, or sick people.
- Page 6 Important Safety Instructions (Cont.) • Clearances: There must be a clearance of at least 30cm between the appliance and any walls, furniture, curtains or any other obstacles (refer to Fig. 1, below). Maintaining this minimum 30cm clearance is essential; failure to keep that distance can result in the unit malfunctioning or causing injury.
-
Page 7: R32-Specific Safety Advice
R32-Specific Safety Advice Important safety precautions concerning refrigerant R32 WARNING: Combustible & Dangerous This symbol alerts you to take care as the appliance contains a flammable refrigerant: R32 (difluoromethane). Take extra care when installing the unit and when carrying out maintenance. WARNING: low burning velocity material The refrigerant used in this air conditioner, R32, is an odourless hydrocarbon gas with a high level of environmental compatibility, with just one third of the... - Page 8 R32-Specific Safety Advice (Cont.) • After servicing the appliance, the service technician must: – check that air cannot enter the refrigerant system – check for refrigerant leaks when moving the air conditioner – carry out a test cycle under controlled conditions after installing the unit and record the operating data.
-
Page 9: Getting Started
Getting Started Before you start • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. -
Page 10: Product Overview
Product Overview Scope of delivery Portable air conditioner Louvre Control panel (see page 10 for details) Front panel Castor wheels Air inlets Drainage outlet Air outlet grille Power cord and plug Drainage outlet Front view (Fig. 3) Rear view (Fig. 4) After Sales Support 1300 886 649 | info@tempo.org... - Page 11 Product Overview (Cont.) Accessory parts (Fig. 5) Flexible air exhaust hose Exhaust hose connector (window end) Exhaust hose connector (air conditioner end) Remote control Adjustable window slider (for 67.5cm – 123cm windows) 2 Dowels 2 AAA-size batteries (packaged separately) NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased.
- Page 12 Product Overview (Cont.) Control panel (Fig. 6) W.F. AUTO Auto Remote control (Fig. 7) NOTE: Do not drop the remote control.Do not place the remote control in a location exposed to direct sunlight. After Sales Support 1300 886 649 | info@tempo.org...
-
Page 13: Installation
Installation Installing the air exhaust hose • Fit the exhaust hose and Fig. 8 housing connectors to the ends of the flexible air exhaust hose (Fig. 8). • Insert the fixing clip of the Fig. 9 housing connector into the openings at the back of the air conditioner (Fig. - Page 14 Installation (Cont.) Installing the window kit Your window kit has been designed to fit most standard ‘horizontal’ and ‘vertical’ window applications, but for certain types of windows it may be necessary for you to improvise/modify some aspects of the installation procedure.
-
Page 15: Instructions
Instructions Using the portable air conditioner • Before switching the unit on for the first time, make sure you have properly installed the exhaust hose and window kit (see pages 5–6 and 12–13) and inserted two AAA size batteries into the remote control (see page 21). •... - Page 16 Instructions (Cont.) Auto mode • Press the MODE button until the Auto mode indicator illuminates. In this mode the air conditioner automatically selects the mode: cooling, dehumidifying or fan according to the ambient room temperature (see the table below). • Press the MODE button again to cancel Auto mode. Cooling mode •...
- Page 17 Instructions (Cont.) Timer operation The air conditioner has a 24 hour timer, which you can set to start the unit at a later time, or to switch off the unit automatically. On-Timer setting • With the unit switched off (but power supplied), press the TIMER button and select the desired on-time using the UP and DOWN buttons.
- Page 18 Instructions (Cont.) Water full alarm Condensation water that forms during cooling will drop into an in-built drip tray, from where it will be evaporated automatically. When the water level in the drip tray is getting too full, an automatic water level sensor illuminates the W.F.
-
Page 19: Faqs & Troubleshooting Guide
FAQs & Troubleshooting Guide If you experience problems with your portable air conditioner, or it appears not to be operating correctly, check the information below for solutions to common problems. If none of the solutions offered help you solve your problem, please contact our after sales support centre for advice. -
Page 20: Other Useful Information
Other Useful Information Care and cleaning Electric shock hazard! Before cleaning and servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury. Cleaning the air conditioner • Wipe the housing with a damp cloth, moistened with water and a little mild detergent. - Page 21 Other Useful Information (Cont.) Before storage At the end of the summer season, follow the simple steps below before disconnecting and storing the appliance. • Place a pan under the water drainage outlet and remove the rubber stopper (Fig. 17). •...
- Page 22 Other Useful Information (Cont.) Battery replacement The remote control is powered by 2x AAA size batteries, packaged separately. To install them, or to replace them when required, proceed as follows: • Open the cover to the battery compartment at the back of the remote control and insert 2 AAA batteries, making sure to match the polarity markings (+/-) on the batteries with those inside the compartment.
- Page 23 Other Useful Information (Cont.) Technical specifications Model A011A-18C Cooling capacity 5.0kW Refrigerant, quantity R32, 610g Discharge 3.8MPa Permissible excessive operating pressure Suction 1.2MPa Discharge 5.0MPa Max. allowable pressure Suction 1.5MPa Weight (approx.) 37.8kg Rated voltage 220-240V~ Rated frequency 50Hz Rated current 9.3A...
- Page 24 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
