Summary of Contents for VOIGTLANDER MACRO APO-LANTHAR 110mm F2.5

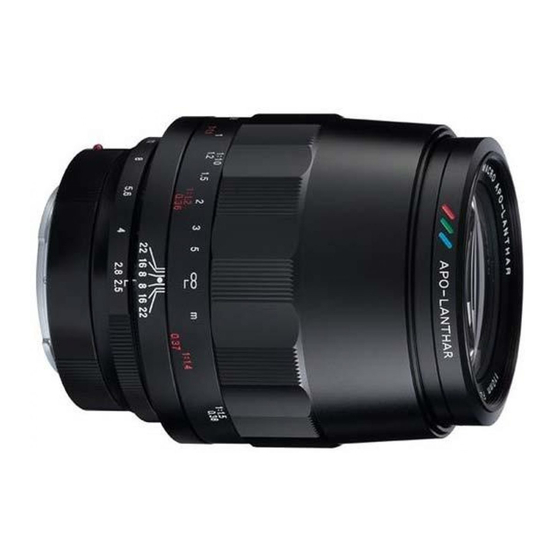

- Page 1 MACRO APO-LANTHAR 110mm F2.5 E-mount INSTRUCTION MANUAL COSINA CO., LTD. Aug 2018, Ver 1.0...
- Page 2 Voigtländer E-mount lenses are designed for use on E-mount camera body. The lenses cover the full frame format. They are manually controlled lenses so the user sets focus and aperture - the built-in CPU will transmit the information to the camera body to give the user Exif-data, and depending on the specification of the camera Auto-lens-correction, 5 axis-Image Stabilization as well as Manual-Focus Assist.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning sign and uses the equipment the wrong way serious injuries and even death might be the WARNING result.
- Page 4 Description of Parts ① Lens Hood ① ② Filter Ring ③ Focus Ring ④ Distane Scale/ Reproduction Ratio Scale Ring ② ⑤ Aperture Ring ⑥ Mount Index ⑦ Mount ③ ⑧ Distance Index ④ ⑨ Depth of Field Scale ⑧ ⑨...
- Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold Mount Index Ring ⑫ to attach/detach the lens. To attach/detach the lens while holding other parts of the lens barrel can damage the lens.
- Page 6 1. Exif Data Picture can store the Exif data of lens. (For example, if you use Voigtländer 110mm F2.5 E-mount) Lens E 110mm F2.5 or Voigtlander MACRO APO-LANTHAR 110mm F2.5 * Description may be changed depending on firmware version or other factors.
- Page 7 3. Manual Focus Assist Magnified Live View Image will be seen on the camera's LCD screen when the camera detects the Focus Ring rotation. You can choose duration of the mode by MENU of camera body. Please refer to the instruction manual of your camera.
- Page 8 ● Specifications Product Name MACRO APO-LANTHAR 110mm F2.5 Focal Length 110mm Maximum Aperture F2.5 Minimum Aperture Lens Construction 12 groups 14 elements Angle of View 22.6° Aperture Blade Minimum Focus 0.35m Macro Ratio Filter Size Ø58mm Maximum Diameter Approx. Ø78.4mm Length Approx.
