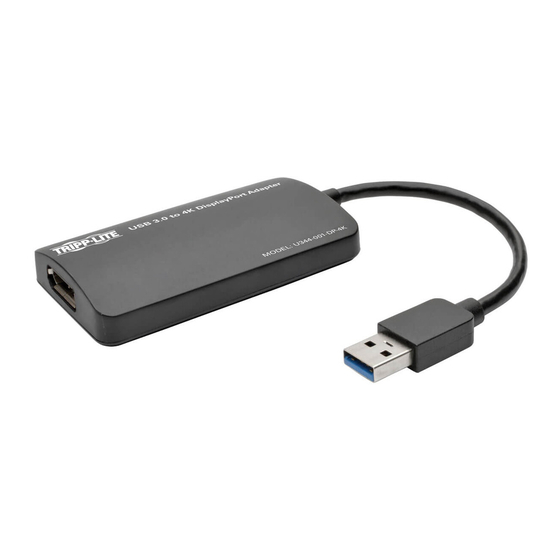

USB 3.0 to 4K DisplayPort Adapter

Table of Contents

Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector-a $100 value!
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2015 Tripp Lite. All trademarks are the property of their respective owners.
15-11-191-933220.indd 1
Owner's Manual
Model #: U344-001-DP-4K
USB 3.0 to 4K HDMI Adapter
Model #: U344-001-HD-4K
PROTECT YOUR INVESTMENT!
www.tripplite.com/warranty
2
2
2
3
4
Add-On Display
4. Troubleshooting
5. Specifications
6. Warranty And Product
Registration
1
5
5
7
8
8
9
11
12
12/9/2015 3:40:27 PM

Advertisement

Table of Contents
loading

Summary of Contents for Tripp Lite U344-001-DP-4K

  • Page 1: Table Of Contents

    You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support Copyright © 2015 Tripp Lite. All trademarks are the property of their respective owners. 15-11-191-933220.indd 1 12/9/2015 3:40:27 PM...
  • Page 2: Introduction

    1.2 Package Contents Before installation, please check the items in the package. The package should contain the following items: • U344-001-DP-4K or U344-001-HD-4K • Driver CD • Owner's Manual Optional Accessories: •...
  • Page 3: System Requirements

    1. Introduction 1.3 System Requirements • Windows® Vista (32- and 64-bit)*, 7 (32- and 64-bit), 8 (32- and 64-bit) and 10 (32- and 64-bit) *4K displays not supported on Windows Vista • Compatible with Mac OS X 10.8.5 and later (32- and 64-bit) ®...
  • Page 4: Installation

    2. Installation Note: Install the driver on your computer before connecting the display adapter(s). 1. Insert the driver CD into your computer’s CD-ROM drive. If your computer does not have a CD-ROM drive, you can download the driver from www.tripplite.com/support. The setup program should run automatically.
  • Page 5: Using The Adapter

    3. Using the Adapter 3.1 Display Properties Once installed, the computer video can be Extended from the primary display to the add- on display, Mirrored to display the same thing on both, or changed to use the add-on display as the primary display. This can be done by opening the Display Settings page on your computer (see below) and changing the settings.
  • Page 6 3. Using the Adapter Below are additional settings that are available via the display adapter right-click menu. Note: The settings available in this right-click menu may vary depending on your operating system. Option Description DisplayLink Manager Opens your computer’s display settings screen. Check for Updates Connects to the internet and checks for newer versions of the DisplayLink software and downloads them if available.
  • Page 7: Extending Video To The 7 Add-On Display

    3. Using the Adapter In addition to the display adapter right-click menu, Windows Vista and 7 users can press the [Windows Key] and the [P] key at the same time to pull up the menu below, which allows you to quickly switch the display settings. Note: Only Mirror mode is supported under Windows Vista Display Driver Model (WDDM) mode.
  • Page 8: Mirroring Video On The

    3. Using the Adapter 3.3 Mirroring Video on the Add-On Display To display the same thing on both the primary and add-on display, follow the steps below: 1. Open your computer’s Display Settings page. 2. Select the monitor icon that represents the add-on display you wish to change, or choose the add-on display from the drop-down menu.
  • Page 9 4. Troubleshooting Q: Why is the display on the add-on monitor blank? If the monitor power LED is green, wait a moment for the monitor to display the video, as it may take some time for the video to be displayed on the add-on monitor. If after a few minutes the video does not display, restart your computer.
  • Page 10 4. Troubleshooting Q: In “Extended Mode,” why does the add-on monitor have a black border around the desktop? This happens when the resolution used by the add-on monitor is higher than the resolution used by the primary monitor. To solve this problem, configure the add-on monitor to use the same resolution as the primary monitor.
  • Page 11 5. Specifications Feature Specification Source Connector USB A Male (via the included USB cable) Display Connector HDMI (Female) or DisplayPort (Female) Maximum Number of Display Adapters Power Bus-powered (600 mA operating power) Windows® Vista (32- and 64-bit)*, 7 (32- and 64-bit), 8 (32- and 64-bit) and 10 (32- and 64-bit) Supported Operating Systems Mac OS X 10.8.5 and later (32- and 64-bit)
  • Page 12 CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

This manual is also suitable for:

U344-001-hd-4k
