Summary of Contents for TQC SP7316

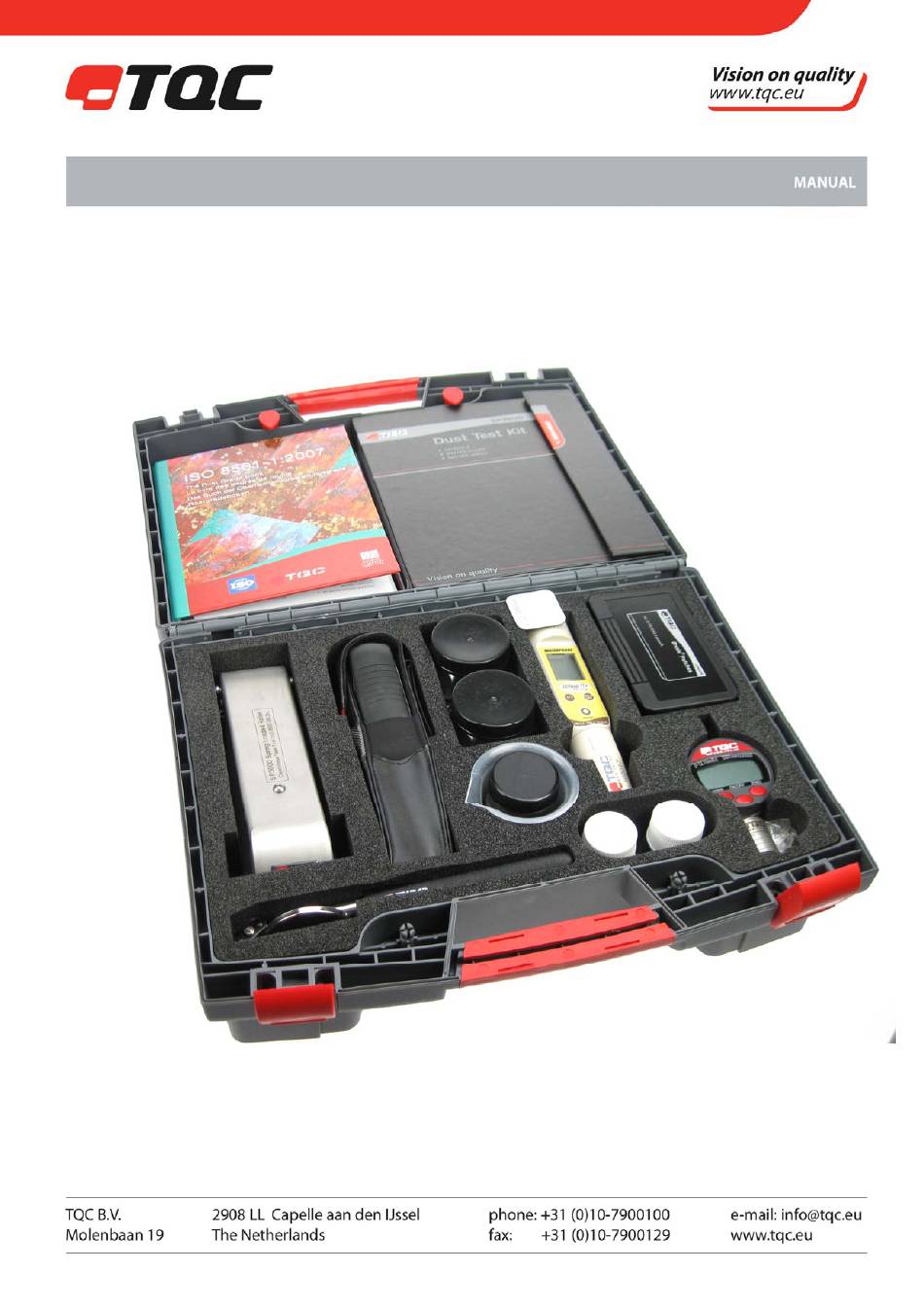

  • Page 1 PRETREATMENT TEST KIT SP7316...
  • Page 3                Measuring Cell             ...
  • Page 6            ...
  • Page 8 DUST TEST KIT SP3200 DISCLAIMER The right of technical modifications is reserved. The information given in this manual is not intended to be exhaustive and any person using the product for any purpose other than that specifically recommended in this manual without first obtaining written confirmation from us as to the suitability of the product...
  • Page 9 The test itself is not included in the delivery 3 STANDARDS ISO 8502-3, IMO-PSPC MSC.215(82) and MSC.244(83) 4 WHAT’S IN THE BOX? TQC Spring Loaded Roller Plastic carrying case Calibration certificate 5 PERFORM A MEASUREMENT •...
  • Page 10 6 MAINTENANCE • Though robust in design, this instrument is precision-machined. Never drop it or knock it over • Always clean the instrument after use. • Clean the instrument using a soft dry cloth. Never clean the instrument by any mechanical means such as a wire brush or abrasive paper.

  • Page 11: Product Description

    TQC SURFACE PROFILE AND COATING THICKNESS GAUGE SP1560 1 PRODUCT DESCRIPTION The TQC Surface Profile & Coating Thickness gauge is a combination gauge. that can be equipped with two different tips, one for surface roughness and another for coating thickness.
  • Page 12 6. Place the needle gentle on the blasted surface and press the base of the gauge-holder firmly against the steel. Do not drag the instrument. 7. Read the peak-valley value. 8. Make 10 measurements on each desired location and determine the mean as being the profile of the surface.

  • Page 13: Battery Replacement

    Remove it by lifting it with a small screw driver. Replace the LR44 battery with its positive side facing upwards. 8 CALIBRATIONS We recommend annual calibration. You can send the instrument to the TQC Service department, together with a completed RMA form. This form is available on www.tqc.eu under the Service-menu ;...
  • Page 14 STEEL SURFACE ROUGHNESS COMPARATOR LD2040, LD2050 1 PRODUCT DESCRIPTION Comparison standard according to ISO 8503 part 1 made of quality steel. Indicates the surface condition of blasted steel according to ISO 8503 in grades of fine, medium, and coarse. 1.1 Specifications LD2040 - Surface Roughness Comparator for Grit Blasting LD2050 - Surface Roughness Comparator for Shot Blasting Material...
  • Page 15 we have no control over either the quality or condition of the product or the many factors affecting the use and application of the product. Therefore, unless we specifically agree in writing to do so, we do not accept any liability whatsoever or howsoever arising for the performance of the product or for any loss or damage (other than death or personal injury resulting from our negligence) arising out of the use of the product.

  • Page 16: Safety Precautions

    Small, light weight, UV pocket flashlight powered by an ultra-high output 390- 410nm UV LED. This TQC UV pocket flashlight is used to detect contaminations that react under UV- illumination and cannot be seen with naked eye such as some organic fats, alkaline contaminants etc. Ideal to inspect the cleanliness of steel prior to painting.
  • Page 17 batteries installed replace the cartridge in to the casing and turn the end cap in a clockwise direction until fully tightened. The flashlight is now ready to use. IMPORTANT: please make sure the batteries are installed correctly otherwise battery damage may occur, possibly resulting in a explosion.
