- Page 1 Your Global Automation Partner IM18-CCM40 Cabinet Guard Instructions for Use...
- Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 3: Table Of Contents
Contents About These Instructions ........................ 5 Target groups........................ 5 Explanation of symbols used .................. 5 Other documents ...................... 5 Feedback about these instructions................ 5 Notes on the Product ......................... 6 Product identification..................... 6 Scope of delivery ...................... 6 Legal requirements...................... 6 Manufacturer and service .................... - Page 4 Carrying out a firmware update with PuTTY............ 28 12 Repair.............................. 30 12.1 Returning devices...................... 30 13 Decommissioning.......................... 30 14 Disposal .............................. 30 15 Technical Data........................... 31 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 5: About These Instructions
This symbol denotes actions that the user must carry out. RESULTS OF ACTION This symbol denotes relevant results of actions. Other documents Besides this document the following material can be found on the Internet at www.turck.com: Data sheet Quick Start Guide EU Declaration of Conformity... -
Page 6: Notes On The Product
For further inquiries in Germany contact the Sales and Service Team on: Sales: +49 208 4952-380 Technology: +49 208 4952-390 Outside Germany, please contact your local Turck representative. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 7: For Your Safety
The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices. -

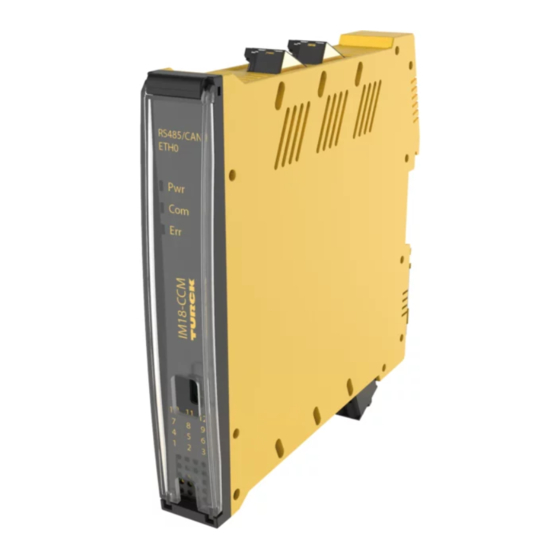

Page 8: Product Description
The device is provided with a 3-color Pwr LED. Two 2-color user LEDs (Com and Err) are also provided. The LEDs can be programmed. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 9: Properties And Features
Properties and features Freely programmable cabinet guard Sensors for monitoring humidity, temperature and distance 3 status LEDs Linux operating system (Debian) 1 Ethernet port (RJ45 socket): – Dynamic IP address (DHCP) – 1GbE interface – Max. cable length 100 m 1 CAN/RS485 port (RJ45 socket): –... -
Page 10: Installing
10 11 12 Fig. 3: Minimum clearance „ Fasten the device vertically and free-standing on a DIN rail. Fig. 4: DIN rail mounting Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 11: Connection
Connection NOTICE Laser class 1 device Risk of blinding from laser beams „ Do not look into the device from the front. Connecting the device to the higher-level via Ethernet The device is provided with an RJ45 socket for connecting the device to an Ethernet system. The maximum cable length is 100 m. -
Page 12: Wiring Diagram
Err Com Pwr [% RH] [mm] [°C] RD GN Fig. 7: IM18-CCM… wiring diagram Terminal assignment RS485/CAN ETH0 Fig. 8: IM18-CCM40 terminal assignment Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 13: Commissioning
The MAC address is printed on the side of the device. The device is set for dynamic addressing via DHCP. The default IP address is 192.168.1.20. The IP address can be set via the Turck Service Tool. The Turck Service Tool can be downloaded free of charge at www.turck.com. „... -
Page 14: Establishing A Network Connection
Unauthorized access to sensitive data „ Change the password after the first login. Turck recommends the use of a secure password. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 15 „ Establish a network connection via the ETH0 interface with the following settings: Setting Description Connection type User sshu Password P@ssw0rd12ssh! Port 1522 Default hostname ccm <SERIAL NUMBER> (example: ccm-0407361310002001) IP address 192.168.1.20 Fig. 11: Access via PuTTY V1.00 | 2020/03...
-
Page 16: Installing User Programs
/home/settings 64 MB Folder for settings and scripts for all operating systems /home/factory 16 MB Folder for manufacturer information Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 17: Example Scripts
Example scripts The folder /home/scripts contains different scripts for operating the interfaces and system functions. The scripts are examples of how the functions can be integrated in user-defined user programs. Fig. 13: Script directory in the folder /home If a script is called without transfer parameters, a help text appears that shows the relevant parameters. - Page 18 Measurement and display of the power supply Measurement and display of all options Display help text help Other scripts must be programmed or imported. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 19: Operation
Operation LED indications The device is provided with three freely programmable LEDs. The default values of the LEDs are shown in the following table: Color Meaning Green flashing (2 Hz) Device is operational Green Communication active Error indication 8.1.1 Programming LED indication The LEDs can be programmed as required via the operating system. -
Page 20: Querying Active System Partition
The current status of the available systems and the active system can be queried via the follow- ing console command: $ sudo rauc status Fig. 15: Example – querying information on the active system partition Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 21: Setting And Parameterization
Setting and Parameterization The Linux operating system enables the device functions to be parameterized for the specific application. V1.00 | 2020/03... -
Page 22: Troubleshooting
The recovery system automatically restores the device to the factory set- tings. This resets all data in the other partitions to the factory settings. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 23: Maintenance
Maintenance Ensure that the plug connections and cables are always in good condition. The devices are maintenance-free, clean dry if required. 11.1 Carrying out a firmware update via the console The firmware update can either be transferred to the device with a suitable tool (e.g. WinSCP or FileZilla) or as a secure copy. -
Page 24: Transferring The Firmware Update Via Winscp
Name (here: ccm-0407361310004001) or IP ad- dress of the device (here: 192.168.100.150) Port 1522 User name sshu Password P@ssw0rd12ssh! Fig. 16: WinSCP – Login Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 25 „ Navigate in WinSCP to the memory location of the update file on the host PC. Fig. 17: WinSCP – memory location of the firmware file on the host PC V1.00 | 2020/03...
- Page 26 Transferring the firmware update via WinSCP „ Navigate to the directory home/update on the device. Fig. 18: WinSCP – directory /home/update on the device Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 27 „ Save the firmware file in the directory /home/update by drag and drop or by clicking Upload. Fig. 19: Directory /home/update „ Confirm with OK. The transfer of the update file is displayed by WinSCP as follows: Fig. 20: WinSCP – file transfer The firmware update has been transferred.
-
Page 28: Carrying Out A Firmware Update With Putty
Host Name: Name or IP address of the device (in this case: 192.168.1.20) Port: 1522 „ Optional: Assign a name for the current session (here: IM18-CCM30-MTI-24VDC_1). „ Click Open. Fig. 21: PuTTY configuration Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 29 „ Log in on the device with user name “sshu” (password: “P@ssw0rd12ssh!”). The password entered is not displayed in PuTTY. „ Carry out the update with the command sudo rauc install /home/update/ [file name].raucb. Example: sudo rauc install /home/update/IM18-CCM30- MTI-24VDC_V1.0.2.raucb Fig. 22: PuTTY –...
-
Page 30: Repair
Fig. 25: Decommissioning Fig. 26: Decommissioning Disposal The devices must be disposed of correctly and must not be included in general household garbage. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 31: Technical Data
Technical Data Technical data IM18-CCM40-MTI/24VDC Rated voltage 24 VDC Supply voltage range 20…30 VDC Power supply current Max. 2 A with all peripheral options Electrical connection Removable spring-loaded terminal, 2-pin Terminal cross-section ≤ 2.5 mm Operating temperature 0…+70 °C Storage temperature -25…+75 °C Relative humidity 10…90 % (internal),... - Page 32 Over 30 subsidiaries and over 60 representations worldwide! 100016098 | 2020/03 100016098 www.turck.com...
