- Page 1 TGB 6055/100 TGB 6055/100T B AT T E RY S C R U B B E R D RY E R Owner Instructions Warning! Read instructions before using the machine www.numatic.co.uk...
-
Page 2: Table Of Contents
B AT T E RY S C R U B B E R D RY E R TGB 6055/100 Index Machine Overview ........ Pages 2/3 PLEASE READ Control Panel Overview ........ Page 4 BEFORE COMMENCING Machine Set up Guide ........ Page 5... -
Page 3: Machine Overview

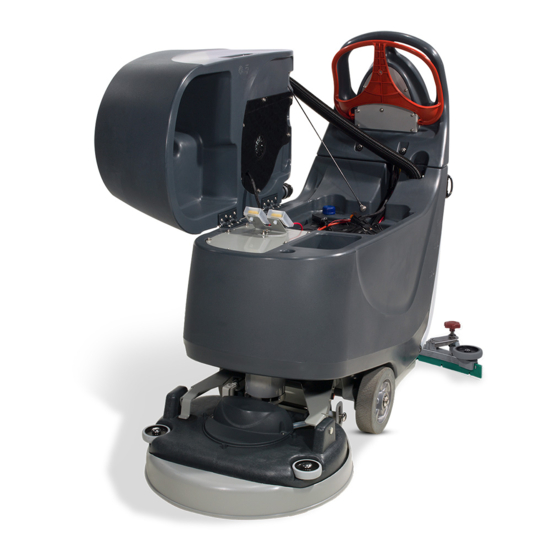

Machine Overview For Traction Drive Twintec see pages 15 & 16... -
Page 4: Control Panel Overview
Battery Charge Level Indicator Vacuum Pick Up On / Off Water Flow On / Off Brush On / Off / Control Handle In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268... -
Page 5: Machine Set Up Guide
NOTE: Wear suitable gloves when inserting fuses. Less Battery Models - Numatic International Ltd recommends using MK Batteries for 6055 and 6055T in the TGB machines mentioned in this manual. For full battery spscifications see page 22. Ensure that no metal objects come into contact with battery terminals while the batteries are exposed. -
Page 6: Fitting The Brush / Pad
BEFORE MAKING ANY ADJUSTMENTS Fitting the Brush / Pad / Turn on water 550mm Brush or a 500mm Pad on the TGB 6055/100. Featuring the Nulock brush system. The brush is simply pushed and twisted to lock, making fitting and removal a simple process. -
Page 7: Fitting The Hose Guide
Filling the Clean Water Tank The TGB 6055/100 is equipped with a large capacity clean water tank allowing for large areas to be covered in a single fill. To fill the clean water tank, extend the hose located to the rear of the machine in the centre of the removable filler cap (1). Pull out hose. -
Page 8: Fill Level Indicator
Machine Set-up Guide Fill Level Indicator The water level in the clean-water tank can be measured using the scale on the left rear side of the machine. The clean water bottom tank holds 60 litres. NOTE: always ensure that the waste water tank is empty before lifting. -
Page 9: Lowering The Floor Tool
Machine Operation Raising/Lowering the Floor Tool After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. Move the floor tool lever to its lower position. NOTE: Do not pull the machine backwards with the floor tool in the lowered position, this could possibly... -
Page 10: Brush Pressure
Machine Operation Brush Pressure / Load Adjustment The brush load lever is located to the right hand side of the machine. This option is for hard to clean patches, adding extra pressure to the brushes. NOTE: It is recommended this option is NOT used all the time and is for spot cleaning only. The run-time of the machine may decrease if the load on the brushes is increased. -
Page 11: Machine Cleaning
Regular Maintenance ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO ANY MAINTENANCE USING THE MASTER CONTROL ON/OFF KEY. REMOVE THE KEY PRIOR TO ANY MAINTENANCE OPERATION. After use, empty waste water tank using emptying hose and flush out with clean water. -
Page 12: Changing Floor Tool Blades
Changing the Floor Tool Blades Always ensure that the machine is switched off prior to any maintenance. To clean the floor tool, remove securing-pin and pull-free from the holder. Rinse the floor tool assembly with clean water and refit. Periodically the floor tool blades should be examined and checked for wear and damage. The blade removal is easy. -
Page 13: Machine Charging
The machine charging point is located to the rear of the machine under the control panel. Remove Isolator Plug and connect your external charger. Refit Isolator Plug before operating the machine. Note: Only use the recommended charger and leads. Contact Numatic International Ltd for recommended charger and leads. T 01460 68600... -
Page 14: Battery Care
Battery Care To ensure your machine remains at its maximum efficiency and prolong your battery life, please follow the simple steps below: UNDER NORMAL DAILY USAGE: Re-charge the machine FULLY after each use regardless of machine operation time. Do not leave the machine in a discharged state. Periodicly inspect the battery connectioins for tightness and corrosion Charging Light Sequence Signal (LED) -
Page 15: Tgb6055/100T Operation
Speed Control Dial Forward / Backwards Control Emergency Stop Button Traction Status Light In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268 Machine Operation. Ensure the Emergency Stop button is released (Fig.D). - Page 16 Machine Operation Setting the Cleaning Controls Insert the key, turn the main control on / off key to position ‘1’. (Fig.A) The battery charge-level indicator will illuminate for 5 seconds. Set desired traction speed as required, depending on floor type and level of soiling (Fig.B).
-
Page 17: Specifications
Replace fuse & reduce load (page 5) Handle safety fuse blown Replace fuse (or contact service engineer) Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or Numatic Technical helpline +44 (0)1460 269268 T 01460 68600... - Page 18 Contact Service Agent T 01460 68600...
-
Page 19: Rating Label / Personal Protective Equipment /Recycling
NOTE: A risk assessment should be conducted to determine which PPE should be worn. Safety Critical Component: In the event of a breakdown contact your Numatic dealer or the Charging Leads: H05VV-F x 1.0 mm x 3 Core Battery Charger: 220V / 240V (50-60Hz) -
Page 20: Safety Precautions
Operators shall be adequately instructed as to the correct use of the machine. If this product does not have a factory installed Numatic battery charger, then it is the responsibility of the owner and user of the product to ensure that the charging system and battery combination are compatible, fit for purpose and safe to use. - Page 21 Undo battery terminals and remove. Remove batteries. The batteries are to be disposed of safely, as according to local government guidelines. 10. Only use genuine Numatic replacement batteries. 11. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them.
-
Page 22: Recommended Spare Parts
2.5 Amp Fuse (Safety Fuse) 208888 Clean Water Filter 903323 Anti-Static Strap 903283 Filter Basket 204115 Drive wheel (Traction) 903285 Filter Basket Lid 237688 Foam Filter Body 208947 Foam Filter 208950 Float Pad Schematic Diagram TGB 6055/100 TGB 6055/100T T 01460 68600... -
Page 23: Battery Wiring
Battery Wiring Diagram TGB 6055/100 Less Battery TGB 6055/100T Less Battery For optimum performance Numatic International Ltd recomed the use of the following batteries in the Twintec machines. Machine Numatic Recommended Battery Numatic Number TGB 6055 Less Battery MK Battery - 98A/h Stud Terminal Gel Type - Suppliers Ref: E31SLD G ST... -
Page 24: Eu Declaration Document
EU Declaration of Conformity T 01460 68600... -
Page 25: Warranty
Warranty T 01460 68600... - Page 26 Notes: T 01460 68600...
- Page 27 Notes: T 01460 68600...
-
Page 28: Company Address
Tel: 0861 686 284 www.numatic.co.za Numatic International Schweiz AG. Sihlbruggstrasse 142, 6340 Baar. SCHWEIZ Tel: 0041 (0) 41 76 80 76 - 0 www.numatic.ch Numatic International ULDA. Centro de Negócios da Maia, Rua Albino José Domingues, 581, 4470 – 034 Maia PORTUGAL Tel: +351 220 047 700 www.numatic.pt...
