  • Page 1 T h e t e s t & me a s u r e me n t e q u i p me n t y o u n e e d a t t h e p r i c e y o u w a n t . A l l t e s t I n s t r u me n t s , I n c .
  • Page 2 MA24XX SERIES POWER SENSORS OPERATION MANUAL 490 JARVIS DRIVE P/N: 10585-00004 REVISION: M MORGAN HILL, CA 95037-2809 PRINTED: NOVEMBER 2005 COPYRIGHT ã 1998-2005 ANRITSU CO.
  • Page 3 WARRANTY The ANRITSU product(s) listed on the title page is (are) warranted against defects in materials and workmanship for one year from the date of shipment. ANRITSU's obligation covers repairing or replacing products which prove to be defective during the warranty period. Buyers shall prepay transportation charges for equipment returned to ANRITSU for warranty repairs.
  • Page 4 CE COMPLIANCE Product Name: Power Sensor Model Number: MA2421A, MA2421D, MA2422A, MA2422B, MA2422D, MA2468A, MA2468B, MA2468D, MA2481A, MA2481B, MA2481D, MA2469B, MA2469C, MA2469D, MA2472A, MA2472B, MA2472D, MA2482A, MA2482D, MA2442A, MA2442B, MA2442D, MA2490A, MA2491A, MA2423A, MA2423B, MA2423D, MA2473A, MA2473D, MA2424A, MA2424B, MA2424D, MA2474A, MA2474D, MA2444A, MA2444D, MA2411A, MA2411B, MA2425A, MA2425B, MA2425D, MA2475A, MA2475D, MA2445A,...
  • Page 6: Table Of Contents

    Table of Contents INTRODUCTION ......1 GENERAL DESCRIPTION ..... . . 1 PERFORMANCE SPECIFICATIONS .

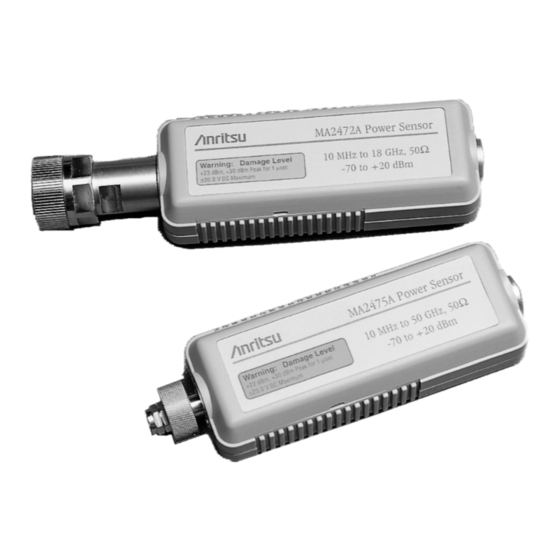

  • Page 7 Figure 1. Typical MA24XX Series Power Sensors...
  • Page 8: Introduction

    Meter only. NOTE Anritsu ML2430A and ML2400A Power Meters must have meter firm- ware revision 3.10 or higher to be used with Anritsu MA24xxD Series power sensors. The MA249X and MA241X Series Power Sensors are used with the ML248X or ML249X Series Power Meters.
  • Page 9 MA246X/C power sensors have fast 1 ms rise and fall times needed for CDMA measurements. MA248X Universal sensors measure average power of modulated signals such as WDMA, multi-tone, etc. MA249X Wide Bandwidth Sensors have a 20 MHz bandwidth needed for accu- rate multicarrier WCDMA measurements.
  • Page 10: Performance Specifications

    PERFORMANCE SPECIFICATIONS Performance specifications for the MA24XX Series Power Sensor are listed in Table 1 (pages 3 through 9). Table 1. MA24XX Series Power Sensor Specifications (1 of 7) Power Sensors Frequency Range: MA2472A/B/D 10 MHz to 18 GHz MA2473A/D 10 MHz to 32 GHz MA2474A/D 10 MHz to 40 GHz...
  • Page 11 Table 1. MA24XX Series Power Sensor Specifications (2 of 7) Thermal Sensors Frequency Range: MA2421A/D 100 KHz to 18 GHz MA2422A/B/D 10 MHz to 18 GHz MA2423A/B/D 10 MHz to 32 GHz MA2424A/B/D 10 MHz to 40 GHz MA2425A/B/D 10 MHz to 50 GHz Dynamic Range: –30 dBm to +20 dBm SWR:...
  • Page 12 Table 1. MA24XX Series Power Sensor Specifications (3 of 7) High Accuracy Sensors Frequency Range: MA2442A/B/D 10 MHz to 18 GHz MA2444A/D 10 MHz to 40 GHz MA2445A/D 10 MHz to 50 GHz Dynamic Range: –67 dBm to +20 dBm SWR: <1.17;...
  • Page 13 .210/.207 Maximum Input Power: 23 dBm, continuous 30 dBm, 1ms peak, ±20 Vdc Temperature Accuracy***: <1.0% NOTE Anritsu ML2400 and ML2430 Power Meters must have meter firm- ware revision 3.10 or higher when used with Anritsu MA24xxD Series power sensors.
  • Page 14 Table 1. MA24XX Series Power Sensor Specifications (5 of 7) Universal Power Sensor Frequency Range: MA2481B/D 10 MHz to 6 GHz MA2482A/D 10 MHz to 18 GHz Dynamic Range: CW: –60 dBm to +20 dBm SWR: <1.17; 10 MHz to 150 MHz <1.12;...
  • Page 15 Table 1. MA2411X Series Power Sensor Specifications (6 of 7) Pulse Power Sensor (ML248X Series Power Meter with Option 15, 1 GHz Calibration ML249X Series Power Meter) Frequency Range: MA2411A/B**** 300 MHz to 40 GHz Dynamic Range: CW: –20 dBm to +20 dBm SWR: <1.15;...
  • Page 16 Table 1. MA249XX Series Power Sensor Specifications (7 of 7) Wide Bandwidth Power Sensor (ML2480 Series Power Meter only) Frequency Range: MA2490A**** 50 MHz to 8 GHz MA2491A**** 30 MHz to 18 GHz Dynamic Range: CW: –60 dBm to +20 dBm SWR: <1.17;...
  • Page 17: Sensor Performance Tests

    Any suspect power sensor should have two parameters tested: input match and sensitivity. There are no user-serviceable parts inside the power sensors. Contact your local Anritsu Service Center and return the power sensor with a detailed description of the observed problem(s).
  • Page 18: Swr (Reflection Coefficient) Performance Test

    If the Actual Measurement reflection coefficient is larger than the Expected Maximum Reflection Coefficient, then the power sensor may be defective. There are no user-serviceable parts inside the power sensors. Contact your local Anritsu Service Center and return the power sensor with a detailed description of the observed problem(s).
  • Page 19 Anritsu MA247XA Power Sensors 10 MHz – 50 MHz 0.010 0.310 + 0.010 = 0.320 50 MHz – 150 MHz 0.012 0.078 + 0.012 = 0.090 0.15 GHz – 2 GHz 0.012 0.057 + 0.012 = 0.069 2 GHz – 12.4 GHz 0.013...
  • Page 20 0.015 0.111 + 0.015 = 0.126 32 GHz – 40 GHz 0.017 0.130 + 0.017 = 0.147 40 GHz – 50 GHz 0.020 0.167 + 0.020 = 0.187 10 MHz – 50 MHz uncertainty is from Anritsu Network Analyzer MS4662A...
  • Page 21 Anritsu MA244X Power Sensors 10 MHz – 50 MHz 0.010 0.310 + 0.010 = 0.320 50 MHz – 150 MHz 0.012 0.078 + 0.012 = 0.090 0.15 GHz – 2 GHz 0.012 0.038 + 0.012 = 0.050 2 GHz – 12.4 GHz 0.013...
  • Page 22 Anritsu MA2468A/MA2469A/MA2469B Power Sensors 10 MHz – 50 MHz 0.010 0.310 + 0.010 = 0.320 50 MHz – 150 MHz 0.012 0.078 + 0.012 = 0.090 0.15 GHz – 2 GHz 0.012 0.057 + 0.012 = 0.069 2 GHz – 12.4 GHz 0.013...
  • Page 23 Anritsu MA2481A Power Sensor 10 MHz – 50 MHz 0.010 0.310 + 0.010 = 0.320 50 MHz – 150 MHz 0.012 0.078 + 0.012 = 0.090 0.15 GHz – 2 GHz 0.012 0.057 + 0.012 = 0.069 2 GHz – 12.4 GHz 0.013...
  • Page 24 Anritsu MA249X Power Sensor 50 MHz – 150 MHz 0.012 0.078 + 0.012 = 0.090 0.15 GHz – 2.5 GHz 0.012 0.057 + 0.012 = 0.069 2.5 GHz – 12.4 GHz 0.013 0.099 + 0.013 = 0.112 12.4 GHz – 18 GHz 0.014...
  • Page 25: Sensitivity Performance Test

    GHz (required for testing the Universal power sensor) · Various adapters as needed Procedures: The following procedure sets the Anritsu ML24XX power meter to the voltage measurement mode: 1. Press the System menu key. 2. Press the More soft key.
  • Page 26 The following procedure sets the Anritsu ML248X power meter (required for MA249X and MA241X Series power sensors) to the voltage measurement mode: Press the System menu key. Press the Setup soft key. Press the CW soft key. Press the Exit key.
  • Page 27 Standard Power Sensors The following procedure applies to MA242X Thermal Sensors and MA247X, MA244X, MA246X, MA249X, and MA241X Diode Sensors. Connect the power sensor to the sensor cable and connect the cable to the power meter. Without connecting the sensor to the signal source, zero the power me- ter by pressing the Cal/Zero key, then the Zero/Cal soft key.
  • Page 28 Sensitivity (dBV) column, the power sensor may be defec- tive. There are no user-serviceable parts inside the power sensors. Contact your local Anritsu Service Center and return the power sensor with a detailed description of the observed problem(s). This completes the Power Sensor Sensitivity Performance Test.
  • Page 29 Power Measurement Mode The following procedure returns the Anritsu ML24XX power meter to the fac- tory default power measurement mode. 1. Press the System menu key. 2. Press the Setup soft key. 3. Press the More soft key. 4. Press the Preset soft key.
  • Page 30: Power Measurement Uncertainty

    Power Measurement Uncertainty General Information Overall power measurement uncertainty has many component parts that affect uncertainty when measuring power with Anritsu power sensors: · Instrument Accuracy – the accuracy of the meter used to read the power sensor. · Sensor Linearity and Temperature Linearity – Sensor linearity and temperature linearity describe the relative power level re- sponse over the dynamic range of the sensor.
  • Page 31 An example of measurement uncertainty is detailed for several MA2400 Series power sensors in the table below. Anritsu power sensors are used to measure the power of a 16 GHz, 12.0 dBm signal from a source with a 1.5:1 SWR.
  • Page 32: Sensor Calibration Factor Uncertainty

    NOTE Calibration Factor Uncertainty figures for the MA2481/MA2482 sensors are taken in CW (Option 1) mea- surement mode. Power sensor calibration is performed at regional Anritsu Service Centers. Con- tact your Anritsu representative for local calibration and service support.
  • Page 36: Power Sensor Care And Handling

    The pin depth of DUT connectors should be measured to assure compatibility before attempting to mate them with Power Sensor connectors. An Anritsu Pin Depth Gauge (Figure 3), or equivalent, can be used for this purpose.
  • Page 37 RF component connector. If the test device connector measures out of toler- ance in the “–” region, the center pin is too short. This should not cause damage, but it will result in a poor connection and a consequent degradation in perform- ance. Anritsu Pin Depth Pin Depth Connector...
  • Page 38: Avoid Over Torquing Connectors

    Avoid Over Torquing Connectors Over torquing connectors is destructive; it may damage the connector center pin. A torque wrench (12 inch-pounds) is recommended for tightening N connectors. Always use a torque wrench (8 inch-pounds) for K and V type connectors. Never use pliers to tighten connectors.
  • Page 39 The following are some important tips on cleaning connectors: · Use only denatured alcohol as a cleaning solvent. · Do not use excessive amounts of alcohol as prolonged drying of the connector may be required. · Never put lateral pressure on the center pin of the connector. ·...
  • Page 40 Table 3. Anritsu Service Centers UNITED STATES FRANCE KOREA ANRITSU COMPANY ANRITSU S.A ANRITSU CORPORATION LTD. 490 Jarvis Drive 9 Avenue du Quebec Service Center: Morgan Hill, CA 95037-2809 Zone de Courtaboeuf 8F Hyunjuk Building Telephone: (408) 776-8300 91951 Les Ulis Cedex...
  • Page 41 SALES CENTERS: Microwave Measurements Division 490 Jarvis Drive, Morgan Hill CA 95037-2809 FAX (408) 778-0239 http://www.us.anritsu.com United States 1-800-ANRITSU Canada 1-800-ANRITSU S. America 55 (21) 286-9141 Europe 44 (0) 1582-433433 Japan 81 (03) 3446-1111 Asia-Pacific 65-2822400...
