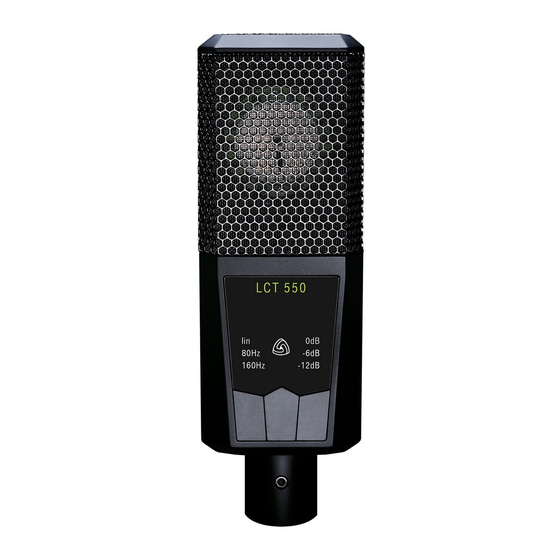

Lewitt LCT 550 Quick Start Manual

1
reaD THe
FuLL ManuaL!
Learn eVerYTHinG abouT Your LcT 550
www.lewitt-audio.com/resources/manuals/LCT-550.pdf
//

user interface

1

status indicator

//
Indicates different active settings such as key
lock, automatic attenuation, clipping history ... see below for details
2

Pre-attenuation

// Use to prevent clipping when recording very
loud sources. Change settings with the right pushbutton (6)
3 Low-cut fi lter // Use to reduce unwanted low frequency noise
caused by wind, footsteps, structure-borne noise or likewise. Change
settings with the left pushbutton (4)
4

Left push button

// Push to change low-cut settings. Also activates

Clipping History.

Clipping History // Pressing the left pushbutton for more than
two seconds activates and deactivates the Clipping History. If
clipping occurred since last time you have entered the Clipping
History, the Status Indicator (1) blinks red, the manually set
level of pre-attenuation blinks and the suggested attenuation
setting is illuminated. The history will be cleared after leaving the
Clipping History mode
5 center pushbutton // Pressing the center pushbutton for more
than two seconds activates (Status Indicator (1) not illuminated) and
deactivates (Status Indicator (1) turns white) the key lock.
6 Right pushbutton // Push to change attenuation settings. Also
activates Automatic Attenuation.

automatic attenuation

more than two seconds activates (Status Indicator (1) turns red)
and deactivates (Status Indicator (1) turns white) Automatic
Attenutation. In this mode the microphone adjusts the
attenuation setting automatically when clipping has occurred.
waTcH ViDeos, reaD reViews anD Learn
How To GeT THe MosT ouT oF Your LcT 550
www.lewitt-audio.com/LCT-Series/LCT-550
// LcT 550
QuicksTarT GuiDe
// Pressing the right push button for
VisiT our
websiTe!
