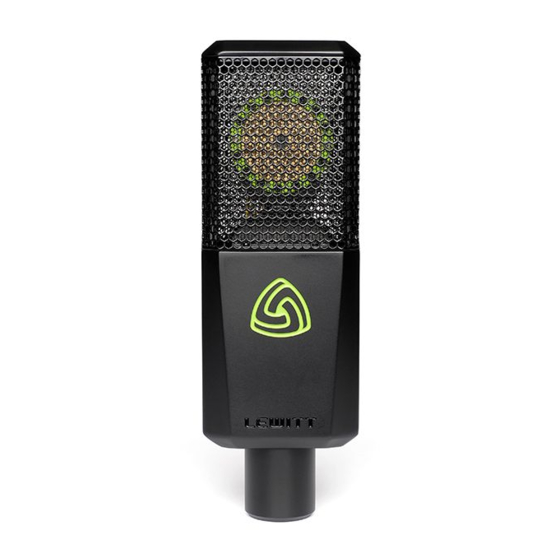

Lewitt LCT 540 S Quick Start Manual

2 seconds to activate Automatic Attenuation and the status indicator turns red. In this mode, the microphone adjusts the
attenuation setting automatically when clipping occurs. The adjustment produces an audible sound. Therefore, this feature is
intended to be used for recording test runs only and to set all mics to the correct attenuation. It is not recommended to be used
during actual recordings. Deactivate by pressing any button again for more than 2 seconds; the status indicator turns white
again.
// Perfect Match technology
Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve
the same sensitivity at 1 kHz in every LCT 540 S ever produced.
//

Getting started

1
Attach the LCT 40 SHx shock mount to a sturdy microphone stand.
2 Place the LCT 540 S in the shock mount and secure it by fastening the threaded nut.
3 The illuminated user interface indicates the front of the microphone. Point it towards the sound source.
4 Connect the LCT 540 S via standard 3-pin XLR cable to an audio interface, microphone preamplifier,
or mixing console, capable of providing 48 V phantom power (P48).
5 Mute your microphone channel before you turn the phantom power on, as it produces a short switch-on sound.
6 Set the input gain on your audio interface, mixing console, preamp, etc. accordingly.
7 Adapt to the sound source and recording environment using low-cut and pre-attenuation settings.
8
Use the supplied LCT 50 PSx pop filter when recording vocals or spoken word to reduce unwanted plosives.
9 To ensure best sound quality, do not cover any part of the grille.
10 You are ready to go!
®
LEWITT
Burggasse 79
1070 Vienna
Austria
www.lewitt-audio.com
// User Interface
1 Status indicator
Illuminated
Flashing
Not illuminated: key-lock active
Illuminated
Flashing white and
Low-cut indicator
2
settings. Low-cut filters eliminate unwanted low-frequency sounds,
compensate the proximity effect and reduce structure-borne noise.
Pre-attenuation indicator
3
attenuation. Use this setting to avoid clipping when recording very loud
sound sources.
Pushbutton functions
4
Key-lock
activate the key-lock mode. Now all pushbuttons are locked until you
press any button for 2 seconds again.
Clipping History
to enter Clipping History. If the status indicator flashes white, no clipping
occurred. If the status indicator flashes red/white, clipping occurred.
The illuminated pre-attenuation symbols show at which pre-attenuation
setting the clipping occurred. Press any button for more than 2 seconds
to exit Clipping History. Once you exit the Clipping History or remove 48V
the history is deleted.
Automatic Attenuation
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
// LCT 540 S
//
white: standard operation
red: clipping occurs
red: Automatic Attenuation active
red: Clipping History active
// Use left pushbutton to change the low-cut
// Use right pushbutton to select the pre-
// Hold the center pushbutton for more than 2 seconds to
// Hold the left pushbutton for more than 2 seconds
// Hold the right pushbutton for more than
READ THE
FULL
LEARN EVERYTHING ABOUT YOUR LCT 540 S
