Related Manuals for FuzzDog L'il Louie
Summary of Contents for FuzzDog L'il Louie

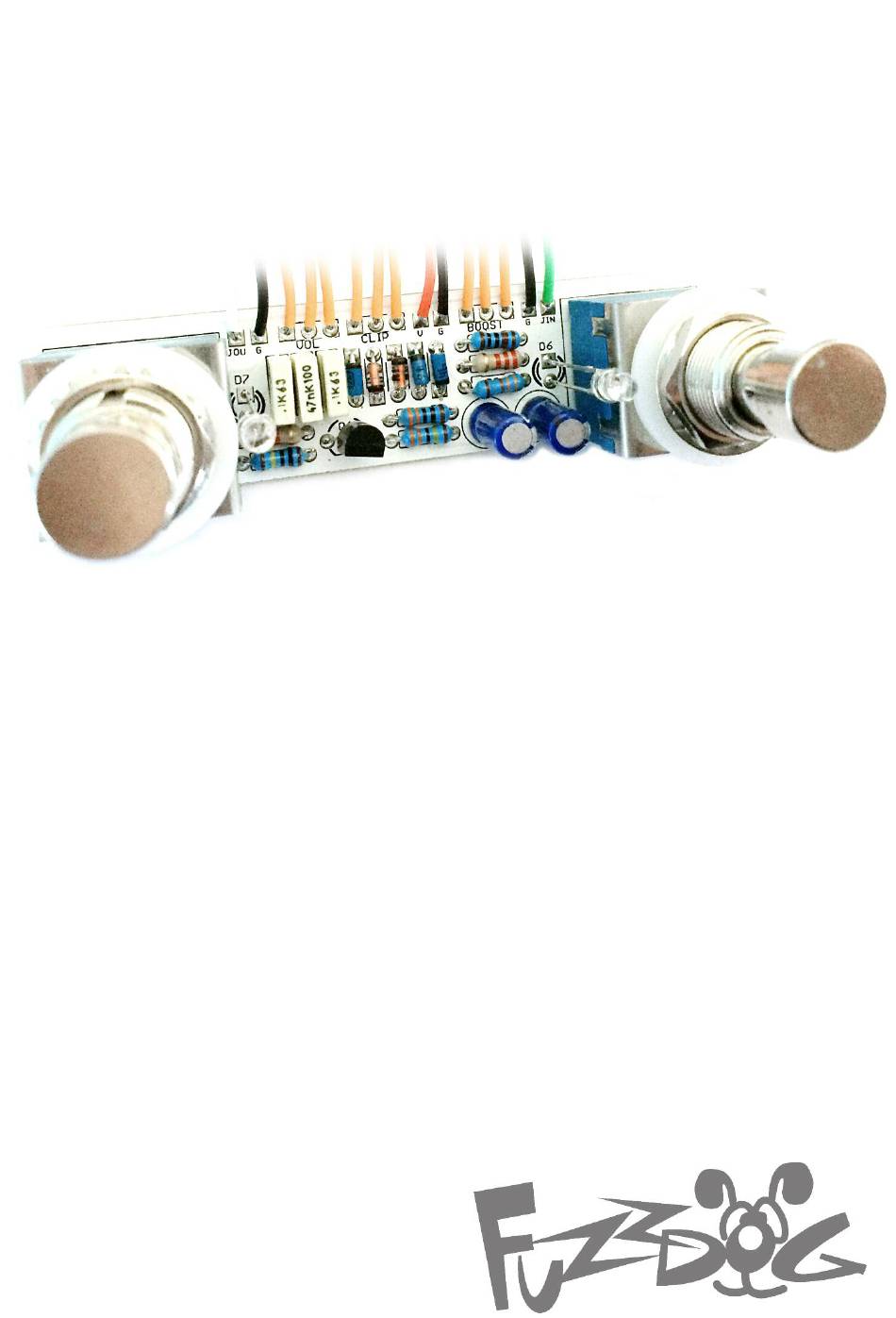

- Page 1 L’il Louie Fender Tweed Tone for days! Contents of this document are ©2016 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Schematic + BOM 2N5088 330R D1-2 1N4148 D3-5 BAT46 2K2 (CLR) BOOST 2K2 (CLR) 100KB CLIP SPDT ON OFF ON 100n 100n 47u elec At first glance the schematic may look a little 47u elec complex for such a simple circuit, but a lot of that is down the footswitch connections which are shown.
- Page 3 PCB layout ©2016 Pedal Parts Ltd. Be very careful when soldering the diodes You should use the enclosure as a guide and transistor. They’re very sensitive to for soldering in the footswitches. There’s a heat. You should use some kind of heat little wiggle room in the pads on the PCB.
- Page 4 This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
