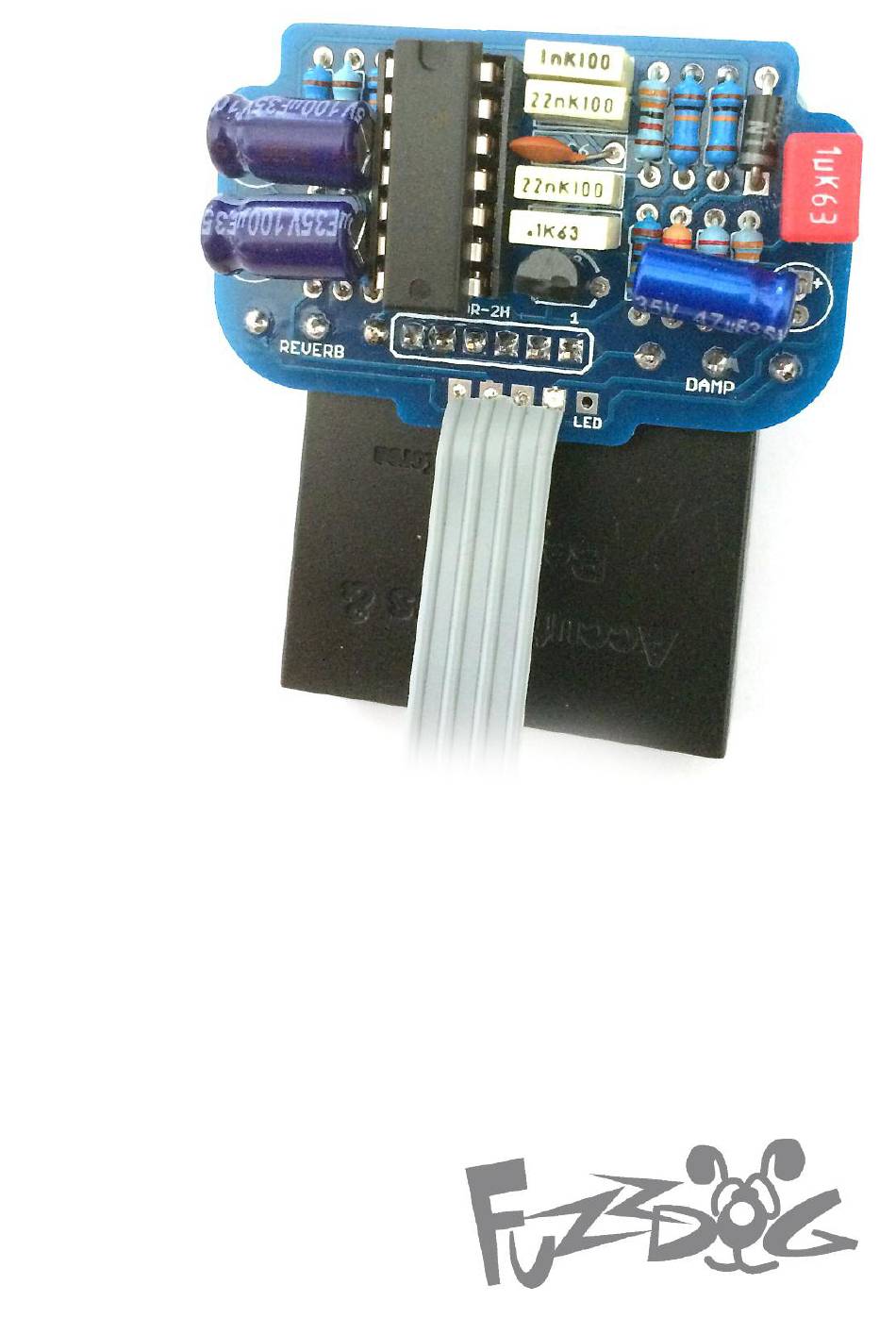

- Page 1 VERB Space is, indeed, the place with the Box of Hall Reverb Contents of this document are ©2015 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Schematic + BOM 100u elec 47u elec 100u elec 1N4001* 100n TL074 100p (470p) 78L05 Regulator** (33K) (33n) (4n7) REVERB 20-25KB 2K2 (CLR) DAMP 10KB Designed for use with the Accutronics BTDR-2H reverb brick. *Not shown on schematic, but it is across 9V and GND for polarity protection. **Orientation of the voltage regulator is shown on the board for 78L05 (which is what is supplied with the kit).
- Page 3 The power and signal pads on the PCB conform to the FuzzDog Direct Connection format, so can be paired with the appropriate daughterboard for quick and easy offboard wiring. Be very careful when soldering the diode, LED and voltage regulator. They’re very sensitive to heat.
- Page 4 Test the board! BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
- Page 5 Wire it up - DC only version (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
- Page 6 BOARD BOARD BOARD LED+ BOARD Just because the BOARD FuzzDog enclosure BATTERY won’t take a battery, there’s nothing stopping you using a bigger box. This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
- Page 7 Drilling template Stinky Cheese Recommended drill sizes: Hammond 1590B Pots 60 x 111 x 31mm Jacks 10mm Footswitch 12mm DC Socket 12mm It’s a good idea to drill Rotary Switch the holes for the pots 8mm to give yourself some wiggle room unless you’re a drill ninja 32mm This template is a rough guide only.
